The Maximum Size of an object has been exceeded

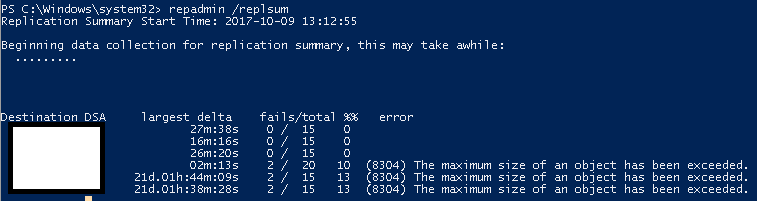

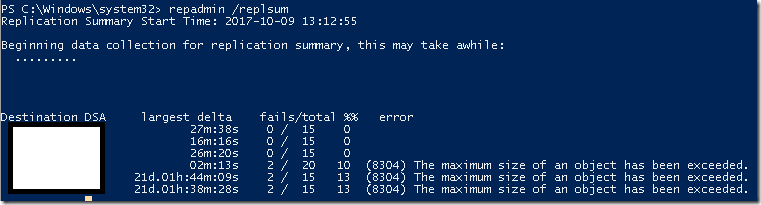

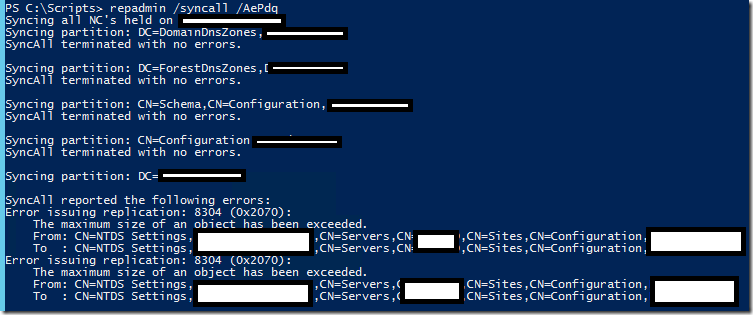

Active Directory Servers – Error Issuing Replication : 8304 (0x2070):

The Maximum Size of an object has been exceeded . Active Directory Replication Fails with below Error



Solution –

To See which Object Causing the issue.

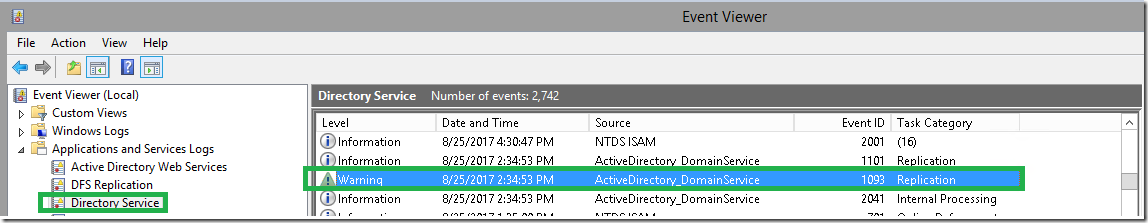

Event Viewer – Directory Service – Event ID 1093 Replication


Below Event Clearly Shows the Object Name and the attribute Causing the issue.

Reference Event –

Log Name:      Directory Service
Source:        Microsoft-Windows-ActiveDirectory_DomainService
Date:          8/25/2017 2:34:53 PM
Event ID:      1093
Task Category: Replication
Level:         Warning
Keywords:      Classic
User:          ANONYMOUS LOGON
Computer:      AD.CareExchange.in
Description:
Active Directory Domain Services could not update the following object with attribute changes because the incoming change caused the object to exceed the maximum object record size. The incoming change to the following attribute will be reversed in an attempt to complete the update.

Object:

CN=Computer1,OU=Computers,DC=Careexchange,DC=in

Object GUID:
333333-f6b6-33e2-9333-333362ceed0
Attribute:

8cc6b307 (ms-Mcs-AdmPwdHistory)

The current value (without changes) of the attribute on the local directory partition will replicate to all other directory services. This will counteract the change to the rest of the directory services. The reversal values may be recognized as follows:
Version:
1433
Time of change:
2017-08-25 14:34:53
Update sequence number:
13333392



In my Case its the Local Account Password Solution keeps the unlimited password history. Causing to exceed the maximum object size.

Once i clear the attribute, Solve the replication issue.

Satheshwaran Manoharan
Satheshwaran Manoharanhttps://www.azure365pro.com
Award-winning Technology Leader with a wealth of experience running large teams and diversified industry exposure in cloud computing. From shipping lines to rolling stocks.In-depth expertise in driving cloud adoption strategies and modernizing systems to cloud native. Specialized in Microsoft Cloud, DevOps, and Microsoft 365 Stack and conducted numerous successful projects worldwide. Also, Acting as a Technical Advisor for various start-ups.

Related Articles

4 COMMENTS

  1. How did you know and/or come to the conclusion it was what you found?

    its the Local Account Password Solution keeps the unlimited password history. Causing to exceed the maximum object size.

    Once i clear the attribute, Solve the replication issue.

    What object attribute did you clear?

  2. Just had this issue as well. What I did was check the GUID on the object that was generating the event (in server roles > ADDS ):
    1. Get-ADObject $GUID -Properties *
    2. Check all attributes that are lengthy (select-object -expandproperties Attributename)
    3. Set-ADObject -Clear $Attributename

    This resolved our replication issues at next replication interval.
