How to Create Internet Calendar sharing in Exchange 2013 with Gmail (Non-Exchange Organizations )

Sharing Calendar to other Exchange Organizations or Office 365 . We would share using Organizational Relationships

if we need to share our Exchange 2013 Calendar to Non-Exchange Organizations like gmail or zimbra.

Or we need to have public calendars for our organizations in the internet . which his accessible via URL.

We can use sharing policies to achieve it . Let see how to achieve this .


Step 1 :

Note: This is done on Mailbox Servers

First we need to Make sure InternetWebproxy URL’s have been set in Exchange 2013 Servers

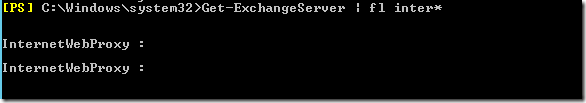

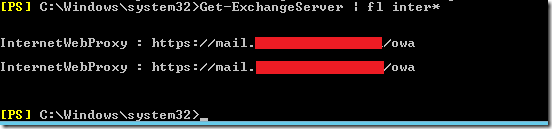

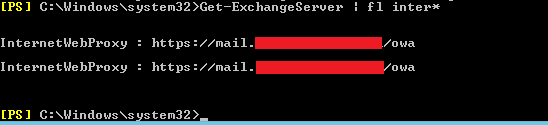

To Check The status of the URL’s

Get-ExchangeServer | fl inter*


To Set InternetWebProxy URL’s

Get-ExchangeServer | Set-ExchangeServer -InternetWebProxy https://mail.careexchange.in/owa




Step 2 :

Now Make sure OWA external URL is set . And CalendarEnabled is set to True

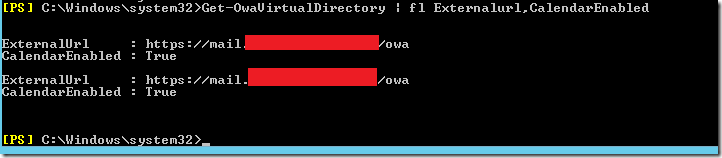

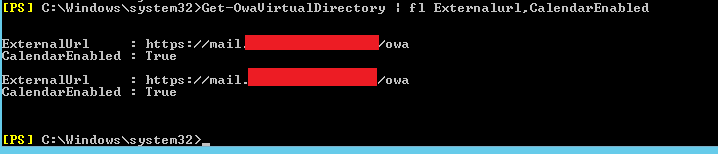

Get-OwaVirtualDirectory | fl Externalurl,CalendarEnabled




Now to set OwaVirtualDirectory ExternalUrls use the below shell command.

Set-OwaVirtualDirectory -Identity "CAS01" -ExternalUrl "<URL for CAS01>" -CalendarEnabled $true

Step 3 :
We need to create a sharing policy in order to allow anonymous calendar sharing
Its always recommended to create a new sharing policy . So that we can customize the policy as per our wish . when its required.

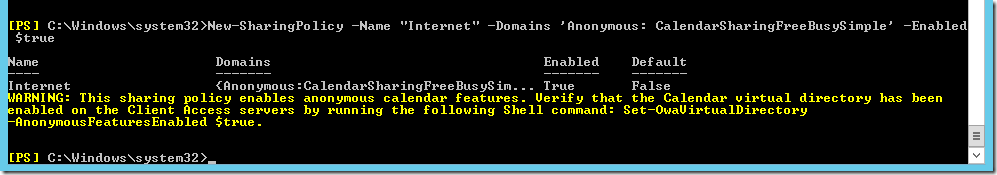

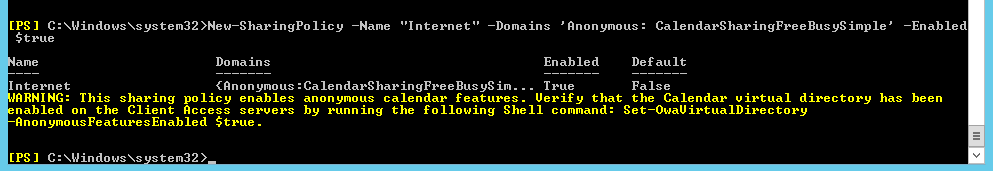

To Create New Sharing Policy

New-SharingPolicy -Name "Internet" -Domains 'Anonymous: CalendarSharingFreeBusySimple' -Enabled $true

Note:
Sharing policies have below options where we can have different type of customizations to specific domains .
-Domains
  • CalendarSharingFreeBusySimple   Share free/busy hours only
  • CalendarSharingFreeBusyDetail   Share free/busy hours, subject, and location
  • CalendarSharingFreeBusyReviewer   Share free/busy hours, subject, location, and the body of the message or calendar item
  • ContactsSharing   Share contacts only
'Contoso.com: CalendarSharingFreeBusySimple', 'Fabrikam.com: CalendarSharingFreeBusyDetail, ContactsSharing'

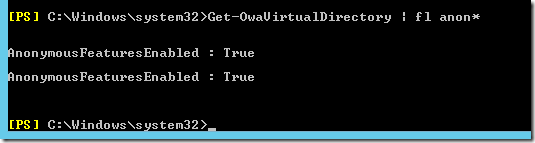

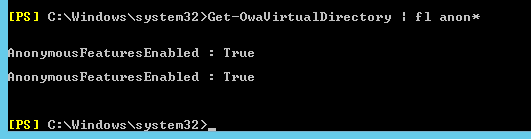

By Default AnonymousFeaturesEnabled is set to True. you can cross check it .
Get-OwaVirtualDirectory | fl anon*

Note : if you don’t want to create a new sharing policy and want to mess up with the default  policy

Run

Set-SharingPolicy -Name "Default Sharing Policy" -Domains 'Anonymous: CalendarSharingFreeBusySimple' -Enabled $true

Step 4 :
Apply the newly Created Sharing policy on the mailbox which needs this feature

Set-Mailbox CEO -SharingPolicy Internet

Now Login to OWA of CEO

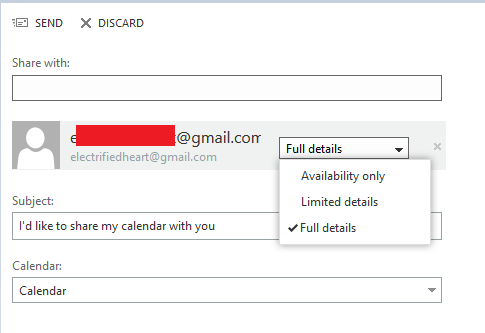

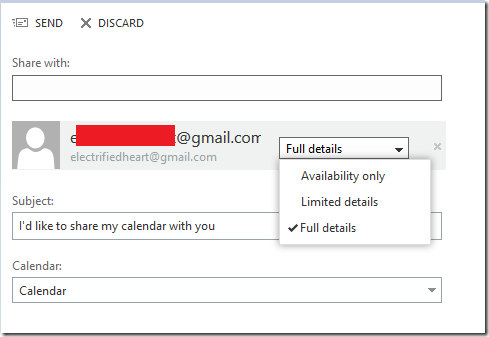

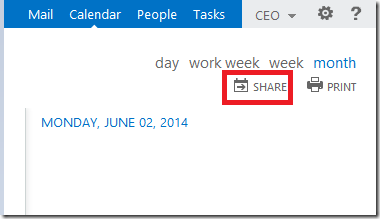

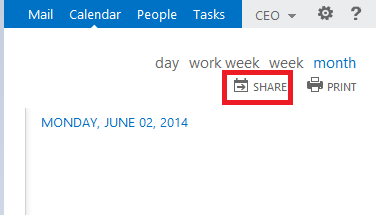

Choose Calendar – Choose Share
Enter the Gmail Address or any non exchange organization email address

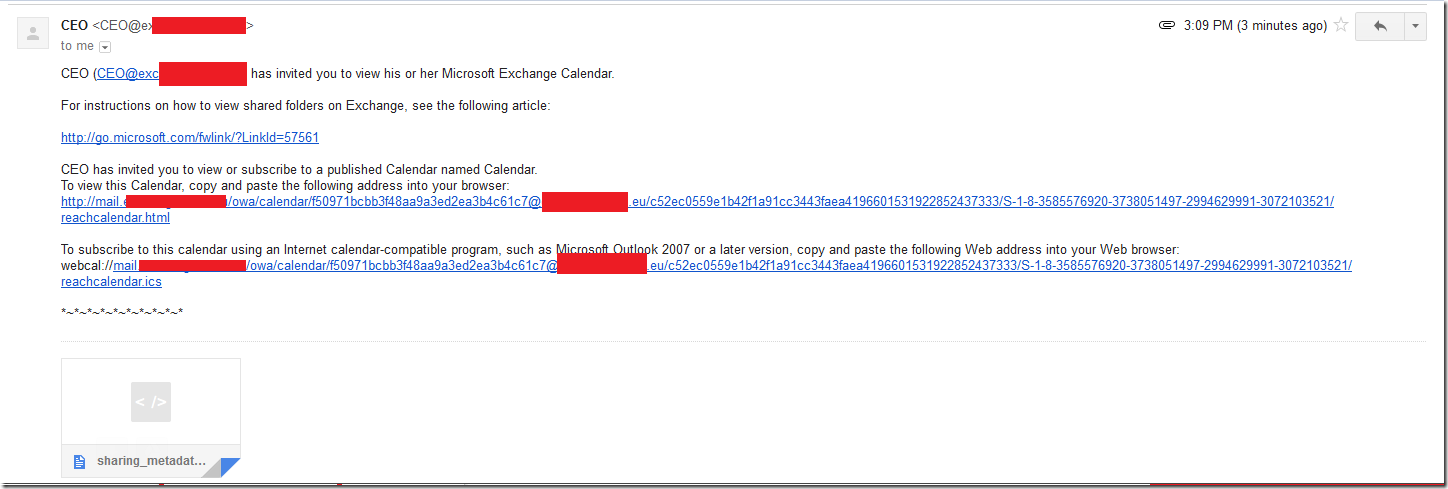

Now the other End .We have got the details of this calendar .

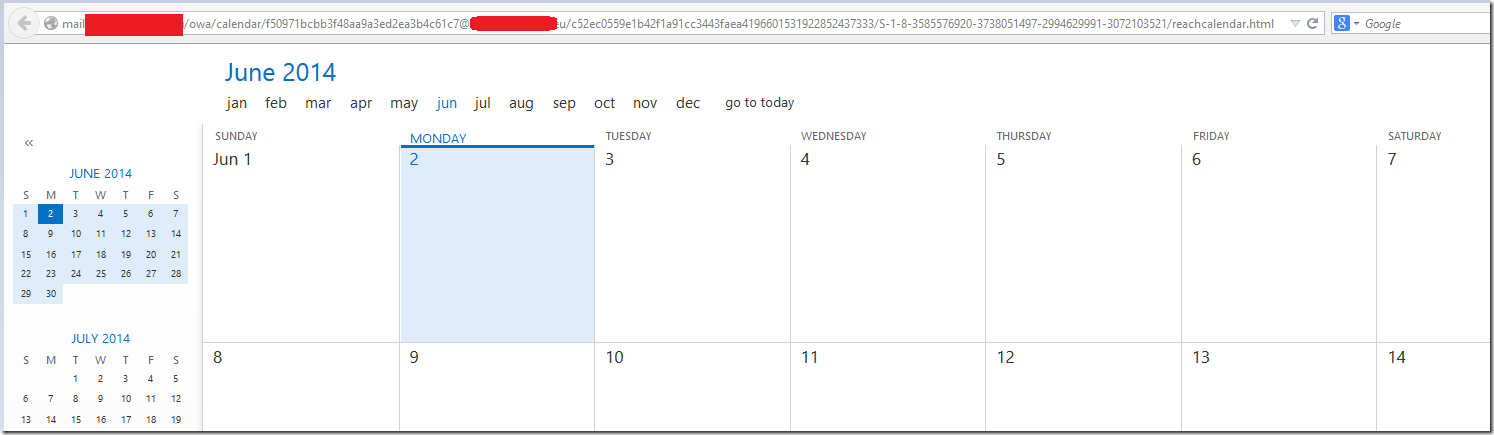

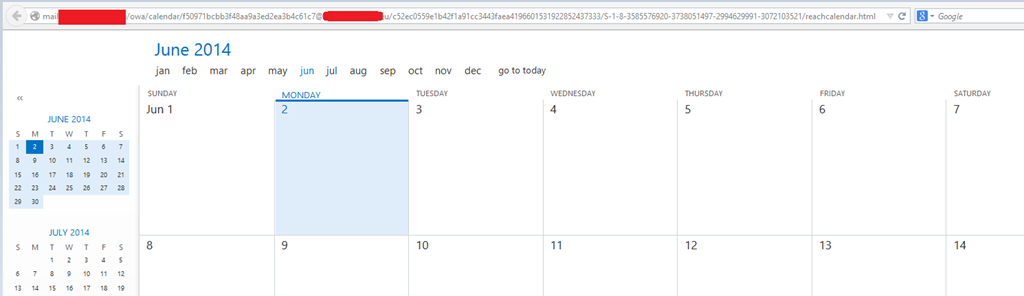

Now the calendar is visible via URL in browser

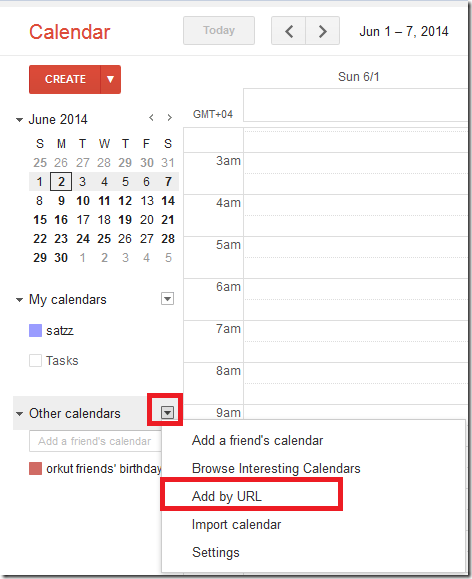

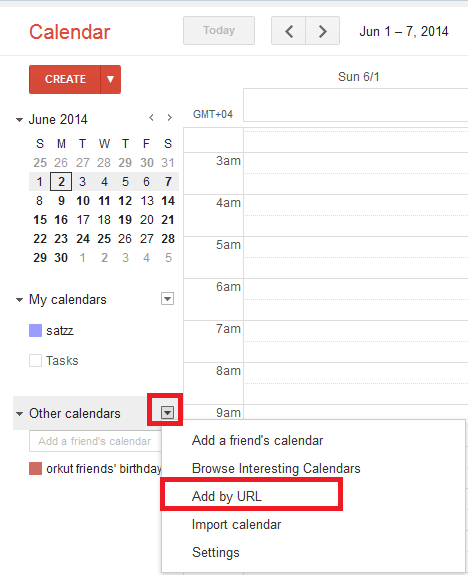

It can be added to Gmail .
Sample URL
webcal://mail.careexchange.in/owa/calendar/f50971bcbb3f48aa9a3ed2ea3b4c61c7@careexchange.in/c52ec0559e1b42f1a91cc3443faea4196601531922852437333/S-1-8-3585576920-3738051497-2994629991-3072103521/reachcalendar.ics

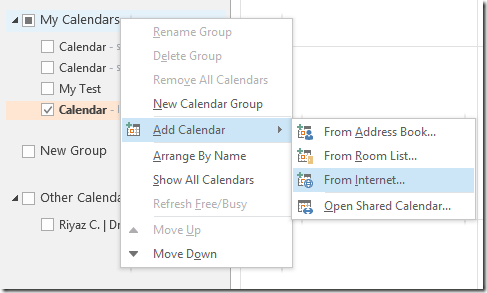

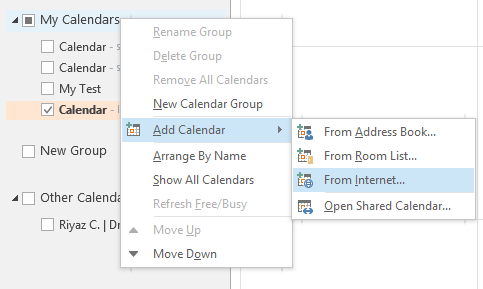

Note these URL’s can be used from Outlook as well .










Hope you have found this article useful .

Thank you .

Satheshwaran Manoharan
Satheshwaran Manoharanhttps://www.azure365pro.com
Award-winning Technology Leader with a wealth of experience running large teams and diversified industry exposure in cloud computing. From shipping lines to rolling stocks.In-depth expertise in driving cloud adoption strategies and modernizing systems to cloud native. Specialized in Microsoft Cloud, DevOps, and Microsoft 365 Stack and conducted numerous successful projects worldwide. Also, Acting as a Technical Advisor for various start-ups.
