How to Configure Website Panel 2.1 for Exchange Server 2013

Once

Website Panel Portal is Ready

Website Panel Enterprise Server is Ready

Website Panel Server is Ready



If not – Follow the below link

How to Install Website Panel 2.1 Windows Server 2012

https://www.azure365pro.com/how-to-install-website-panel-2-1-windows-server-2012/



Login to Website Panel Portal –

Login : ServerAdmin

Password : ******

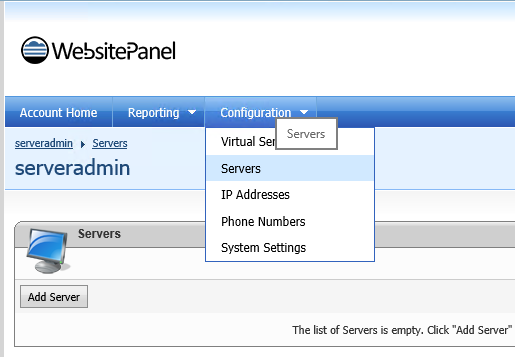

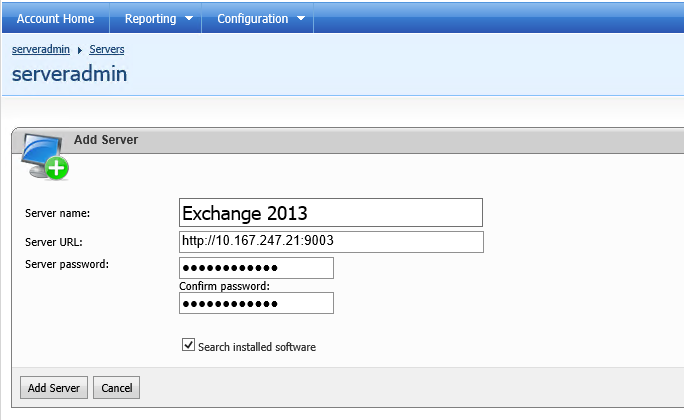

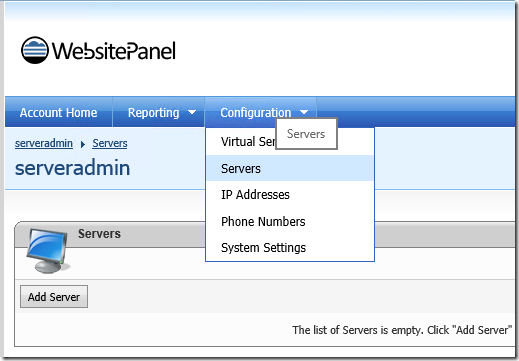

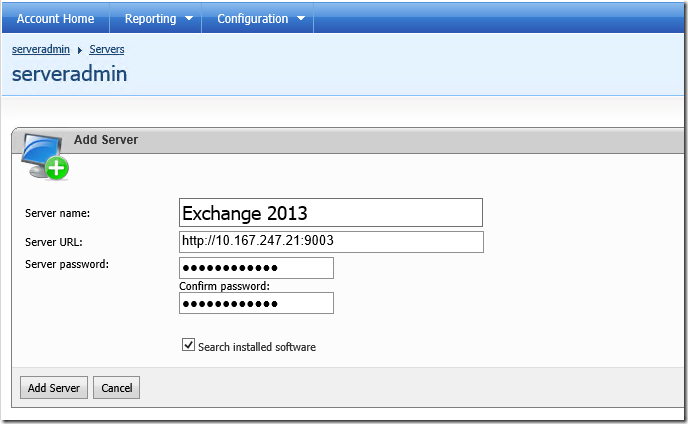

Choose Configuration – Servers – Choose ADD server


Enter the Server Name – Friendly Name

Server URL : The Server URL you configured website panel Server

Enter the Server Password

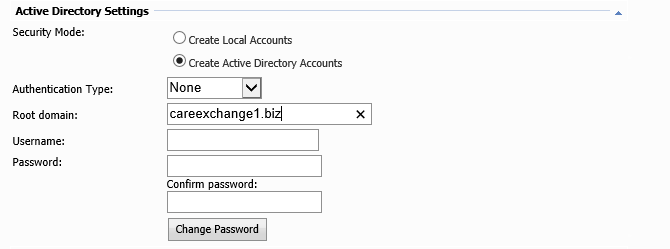

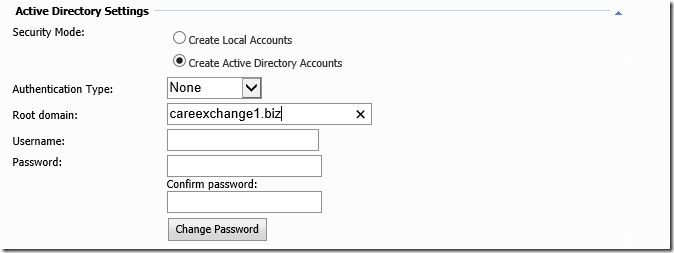

Now Choose Active Directory Settings

Choose –

Create Active Directory accounts

Authentication Type – None

Root domain – CareExchange1.biz

Leave the other things empty

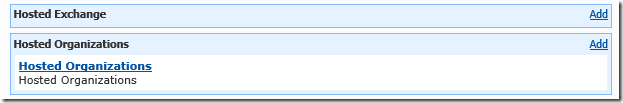

Now Click On Hosted Exchange – Click add

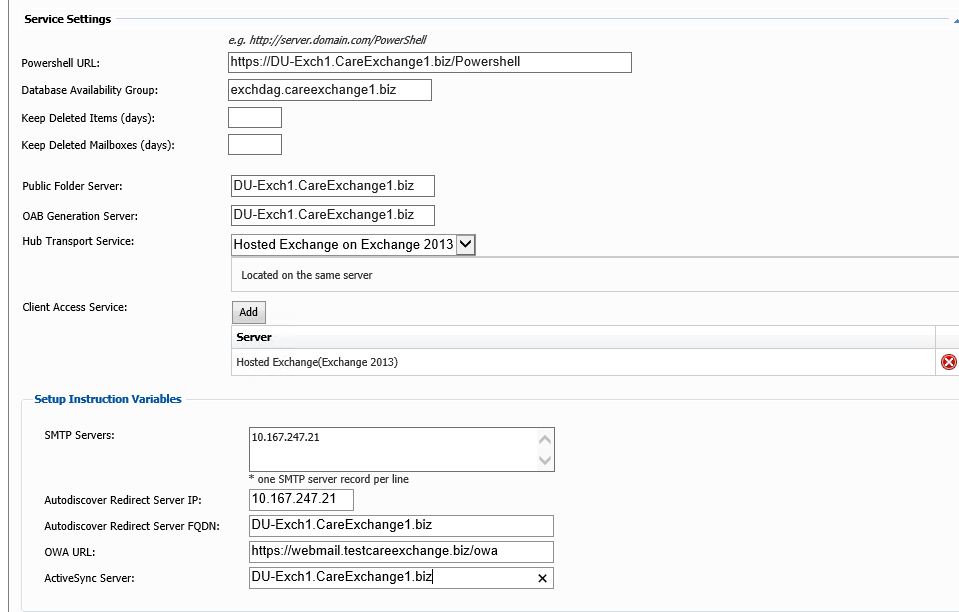

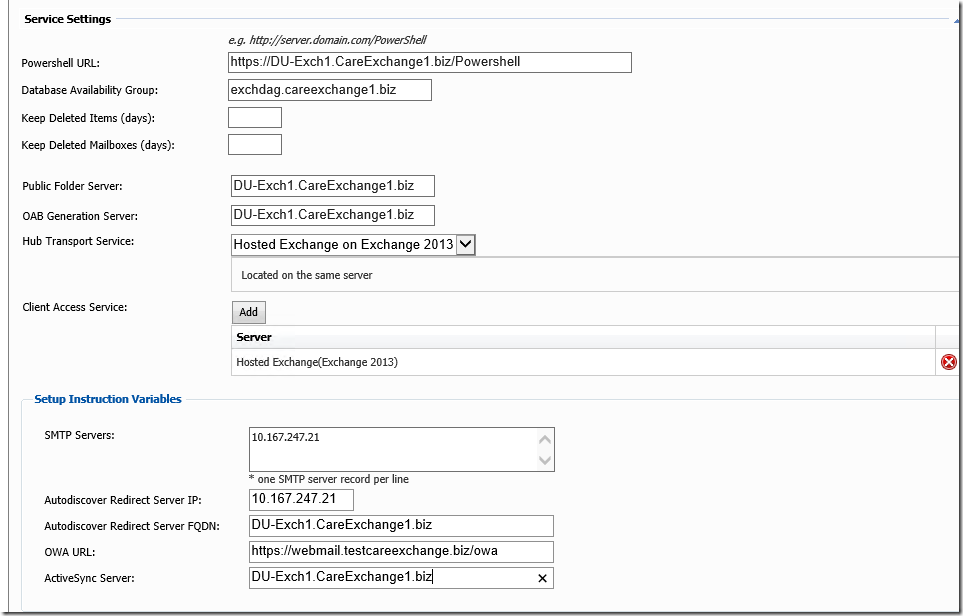

Enter PowerShell URL – Make Sure you enter HTTPS URL

Note – If website panel server and Websitepanel Portal and Website panel Enterprise server on exchange 2013 Server – Enter Powershell URL as https://127.0.0.1/powershell

Note : To find your PowerShell URL  – Open Exchange management Shell – Get-PowershellVirtualDirectory | FL Name,*URL*

Database Availability Group : If available fill it . if DAG is not configured . leave it empty

Enter Public Folder Server

Enter OAB Generation Server

Leave the HUB Role

Add the Client Access server you are configuring

SMTP Server choose the Exchange Server  IP

Enter Auto discover Details

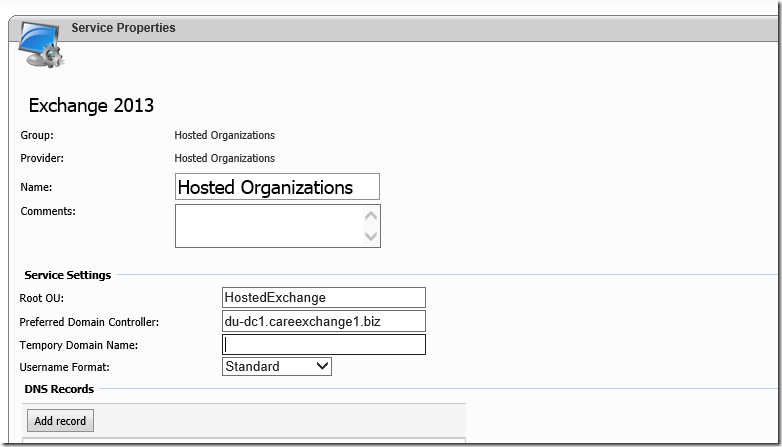

Now Choose Hosted Organizations

Enter the Root OU

Enter the Preferred Domain Controller

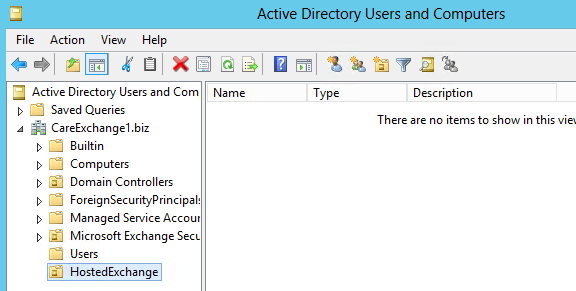

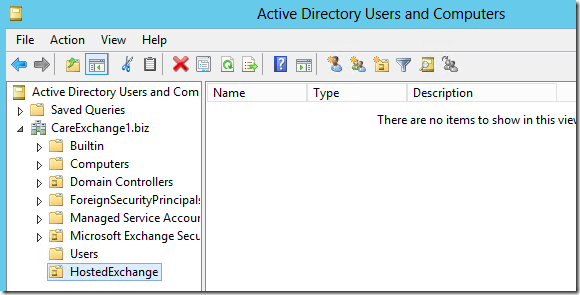

Make Sure the OU you are entering is available in ADUC – If not please Create it


Now Configuration part is done.

Add a hosting plan for a Customer – am just creating a test hosting plan

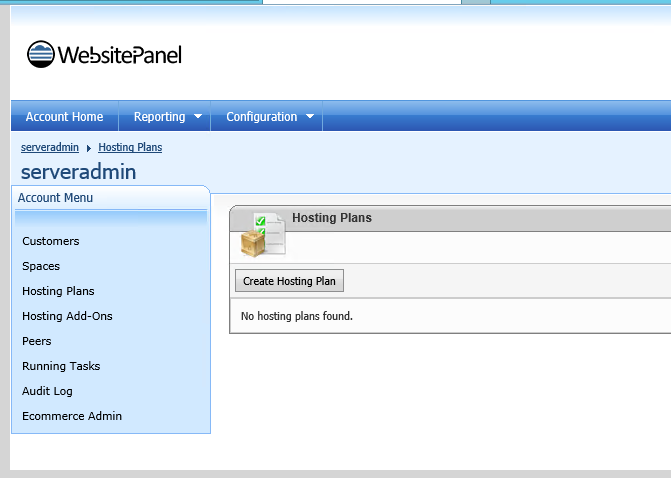

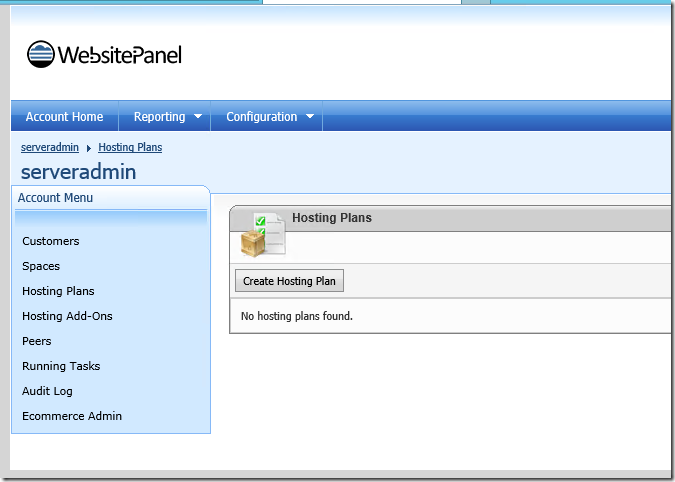

Serveradmin – Hosting Plans – Create Hosting plan

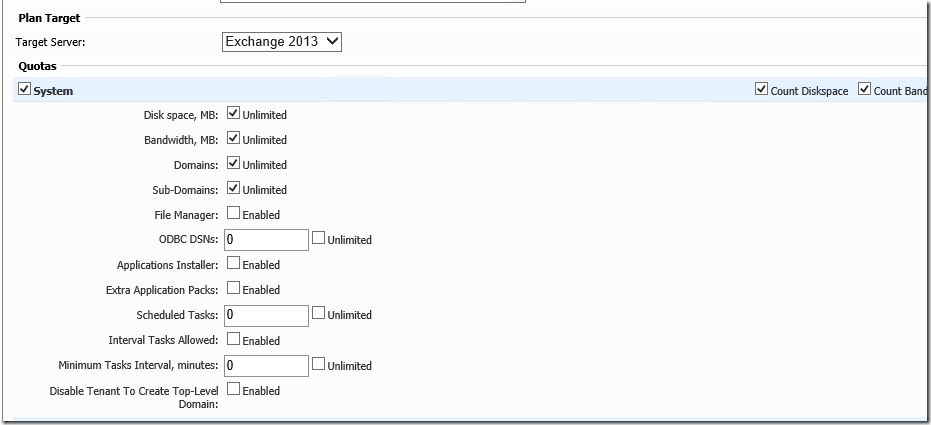

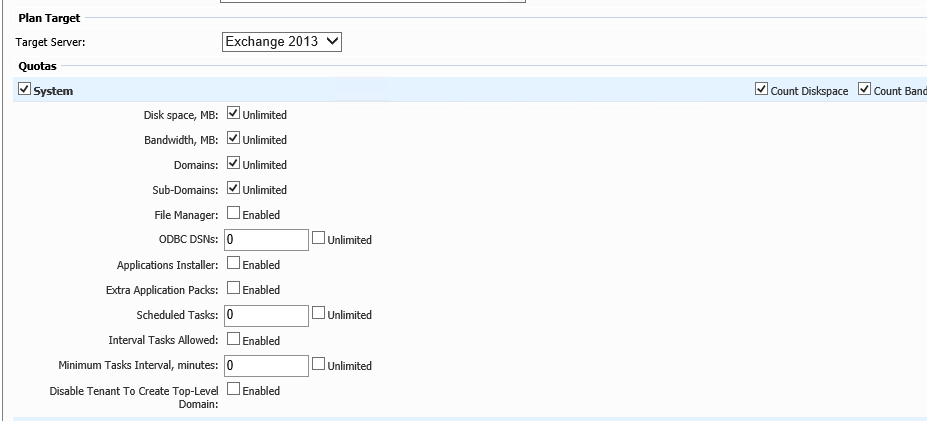

Choose the Exchange 2013 Server as the Target server

Make Sure Domain is set to unlimited or a Value

So that you can create a Organization

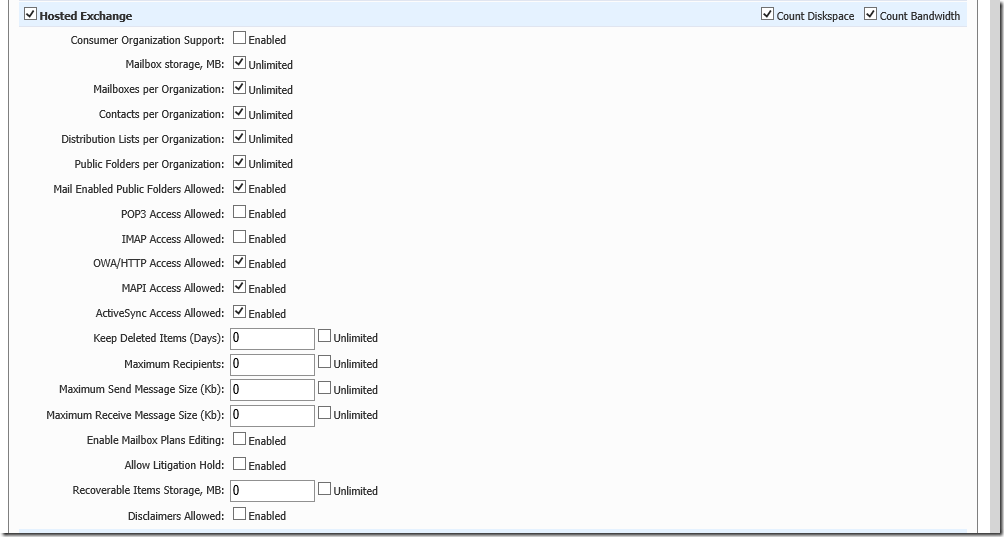

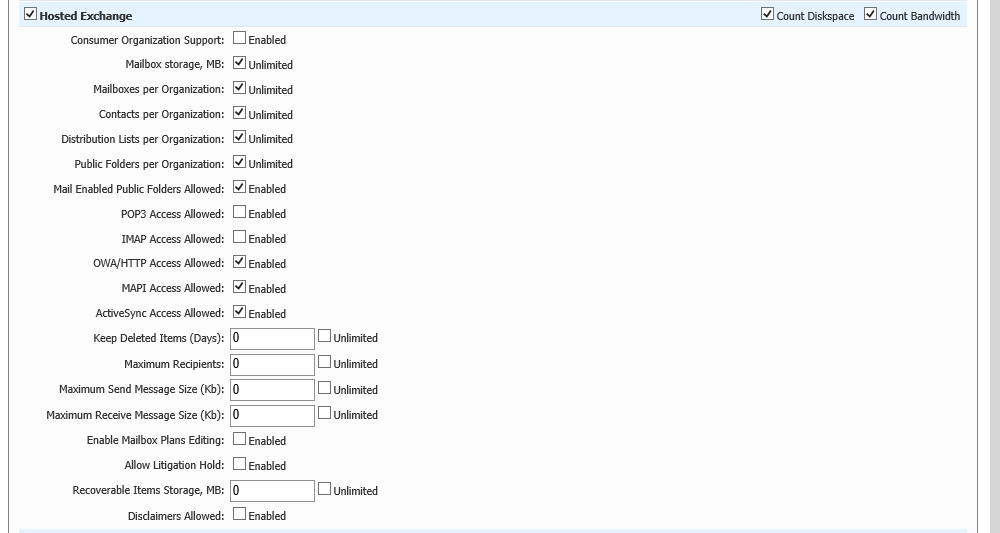

Choose hosted Exchange

As its just for testing . am placing things on Unlimited

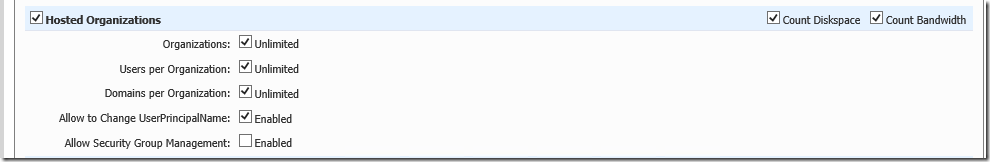

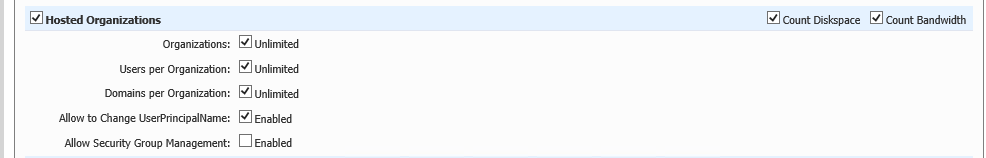

Now Choose Hosted Organizations

do the same


Go the end – Choose SAVE

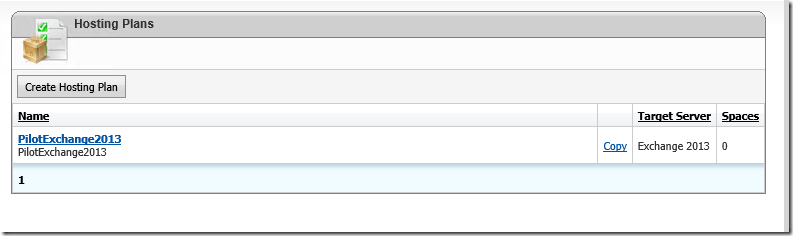

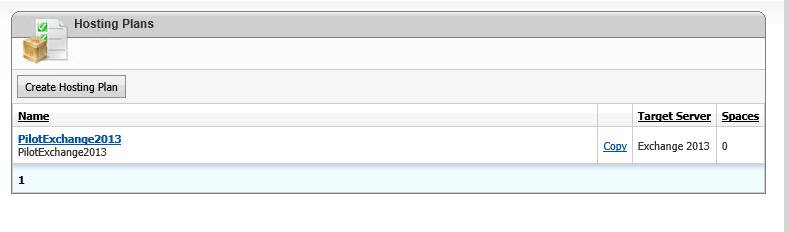

now a hosting plan is ready

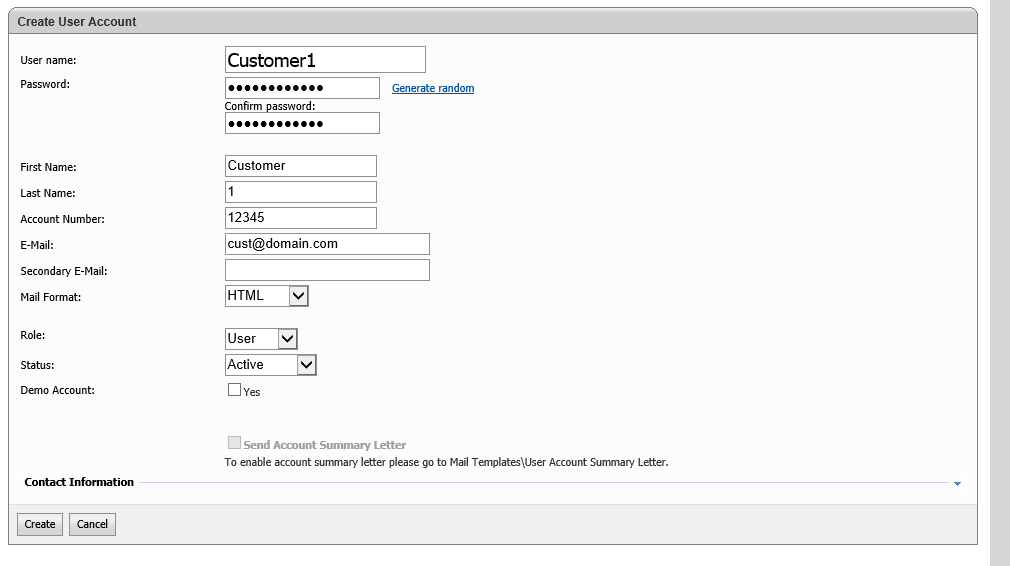

Now Create a Customer

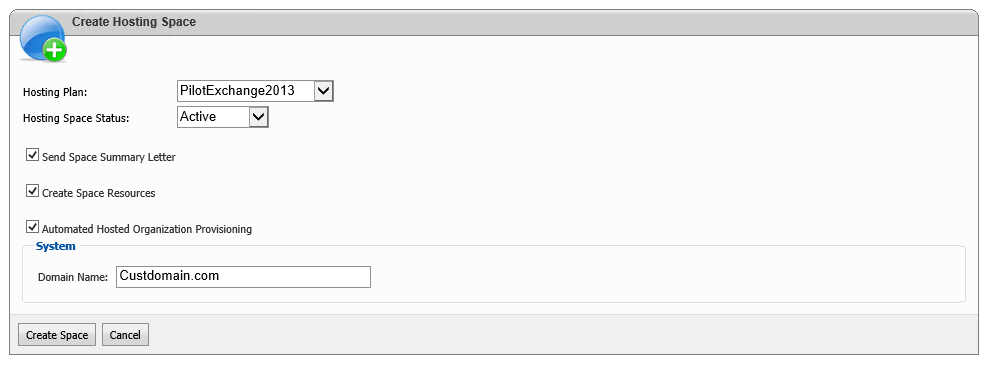

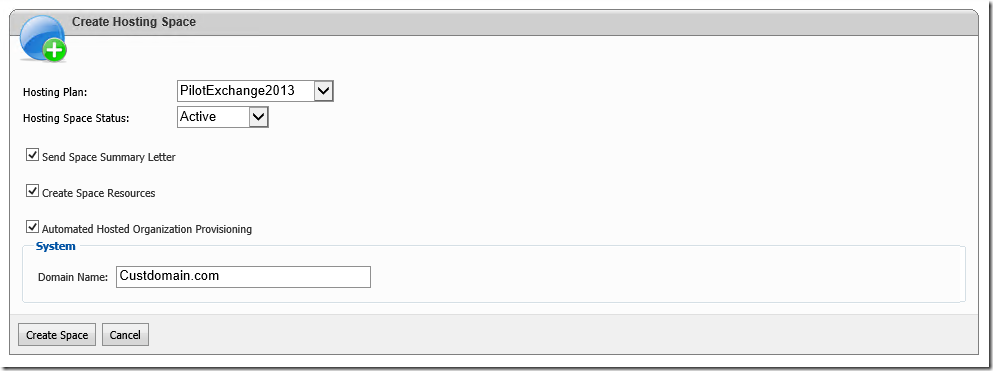

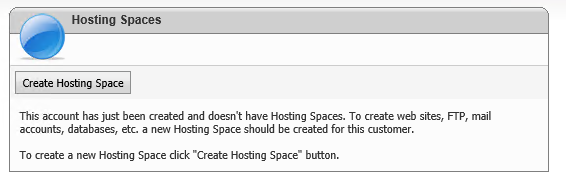

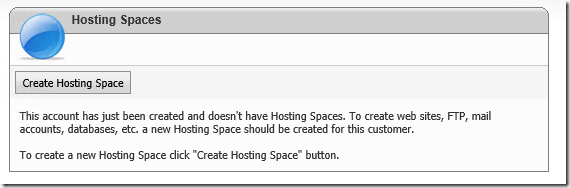

Now Click on Create hosting space




Now Assign the hosting space we created to the customer

Add the domain of the Customer


Now Click on Customer – Hosting Organizations – Hosted Organization

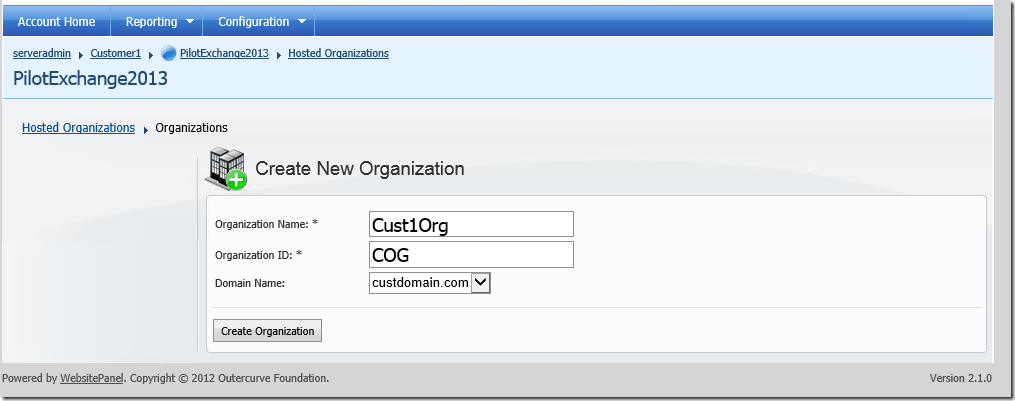

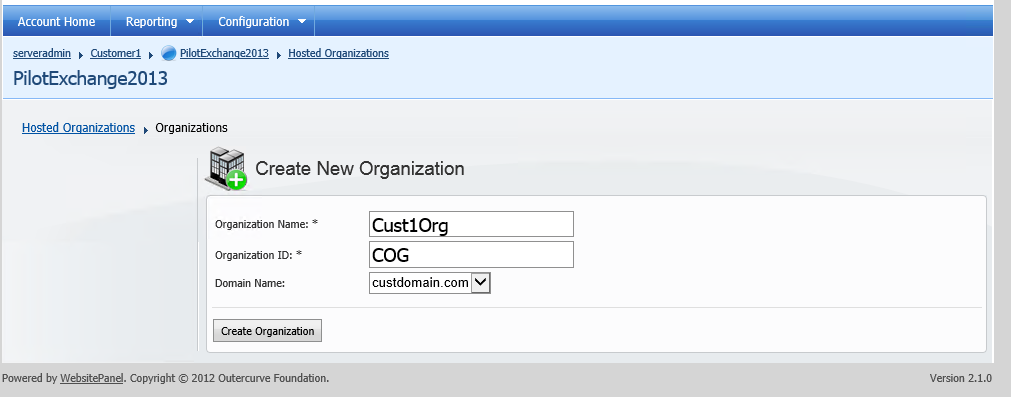

Create new organization

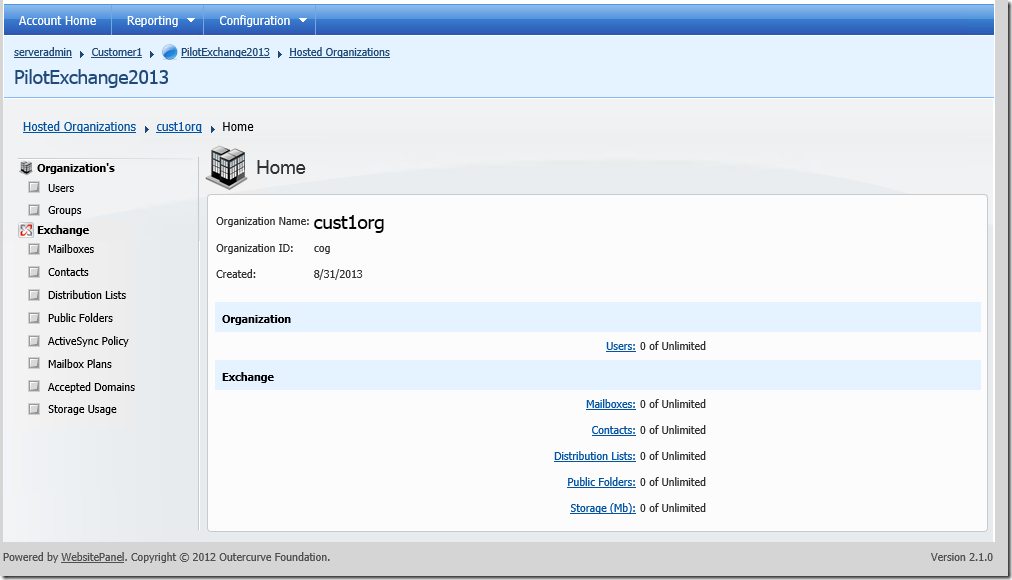

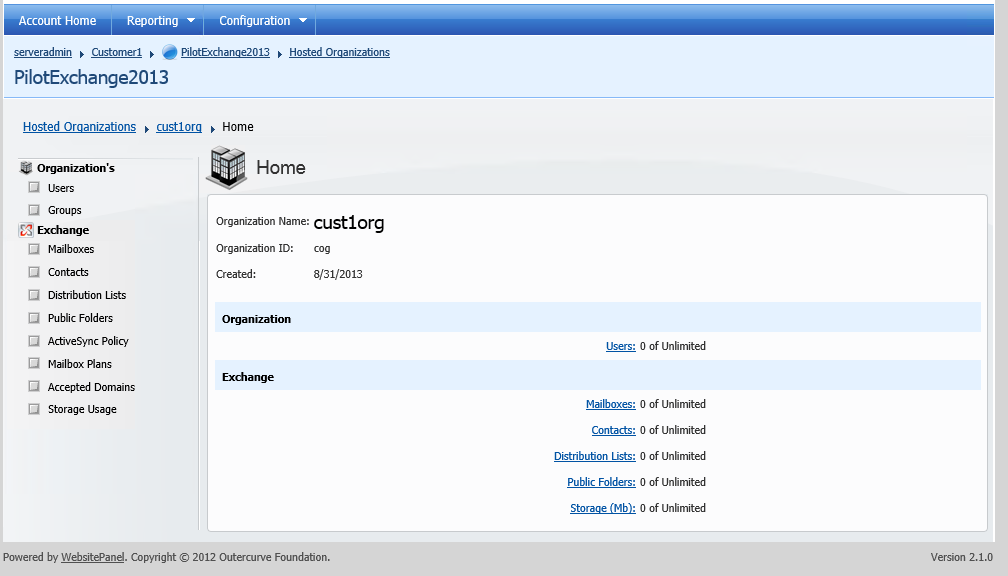

Once the Organization is Ready

Click on the Organization

So that we can test creating a mailbox




For Creating a mailbox – you will need a mailbox plan

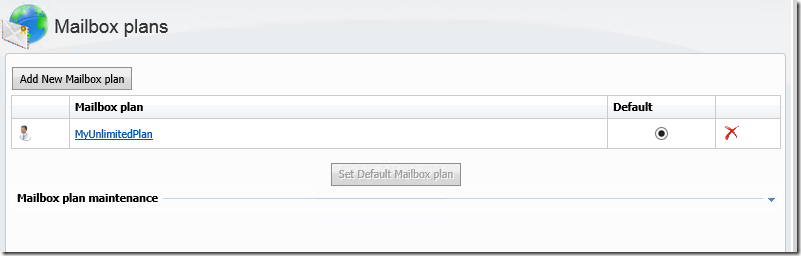

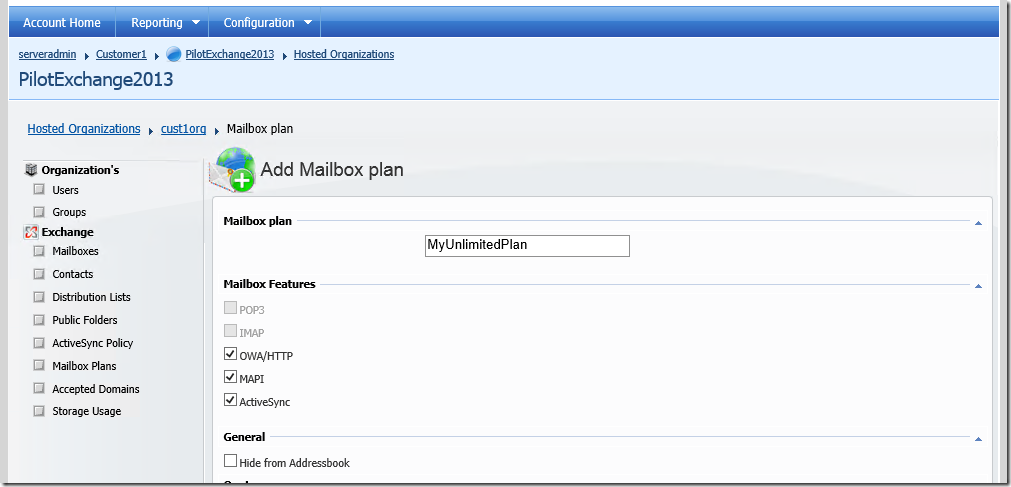

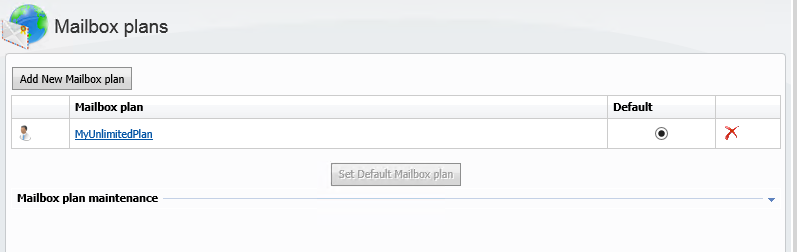

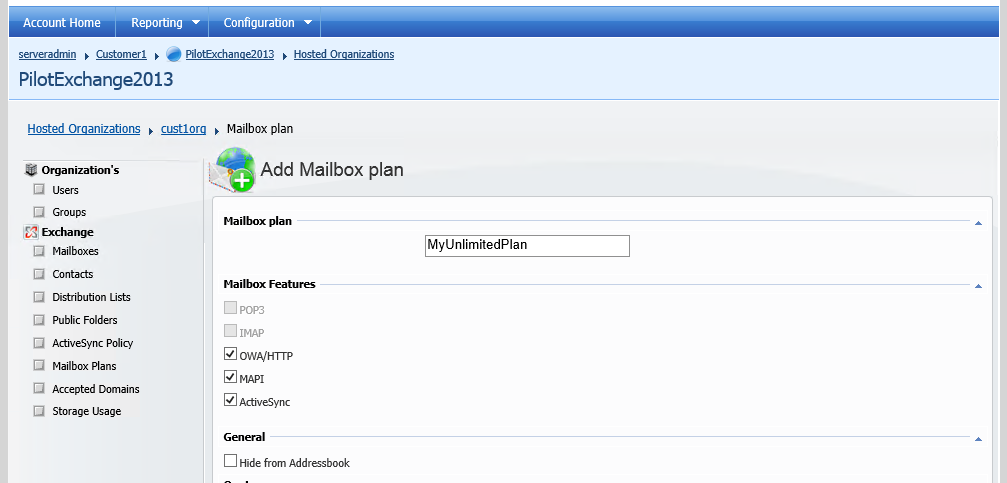

Choose mailbox plans – am just creating a unlimited mailbox plan


Now Mailbox plan is ready

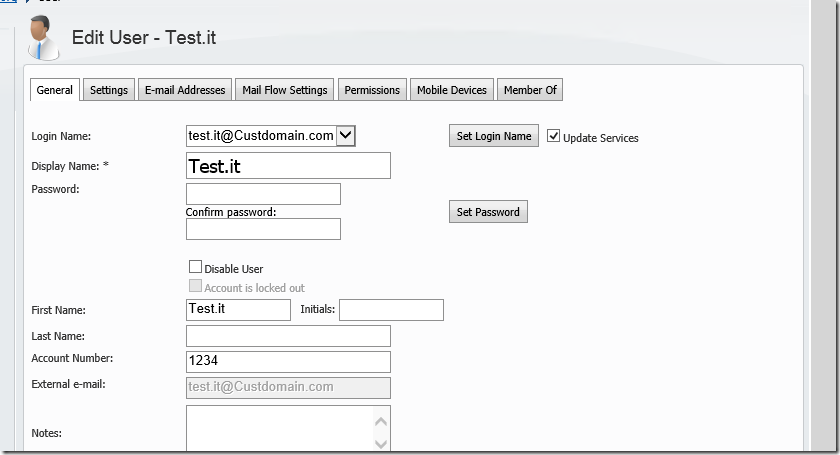

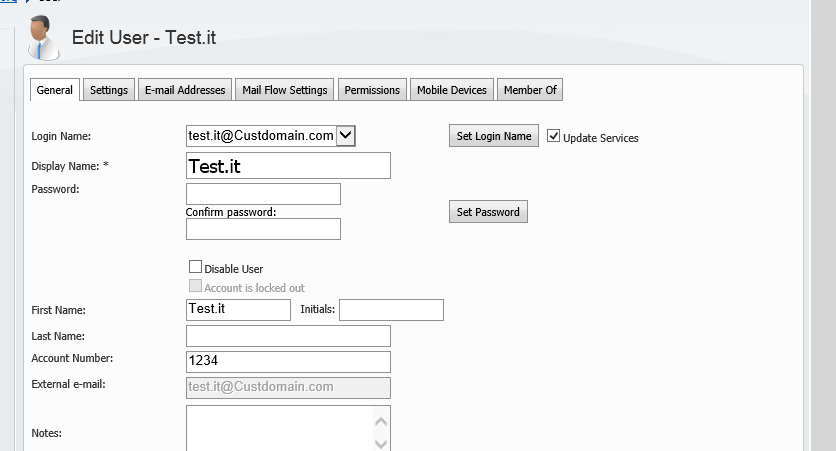

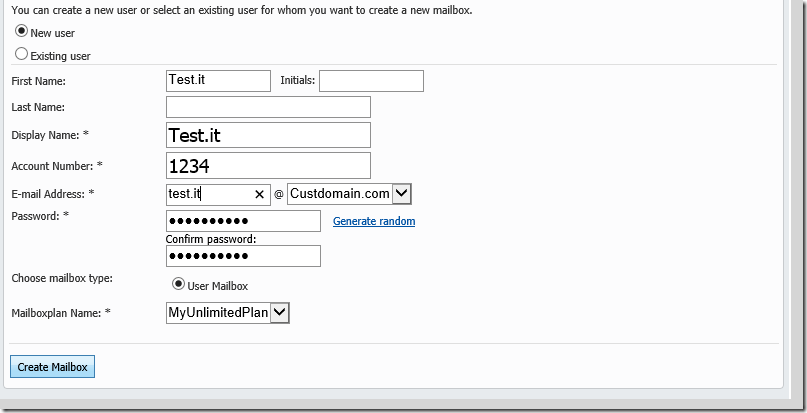

Now Choose mailboxes Create a new mailbox




Now Mailbox have been created successfully

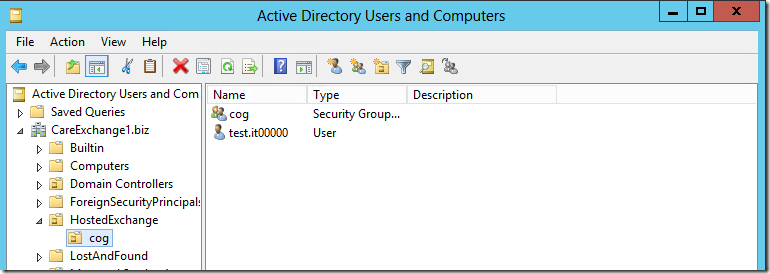

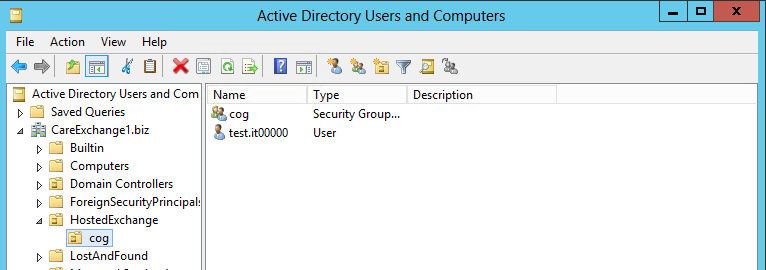

if you go to ADUC , you could see it has created user accounts in the right space we defined

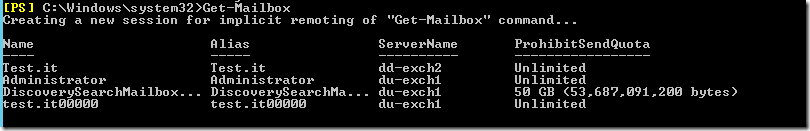

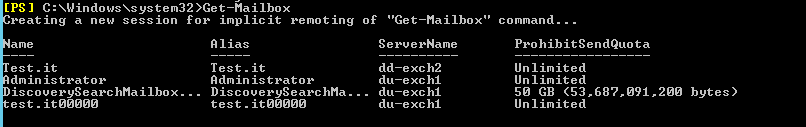

Now Running “Get-mailbox” Making sure mailbox is created

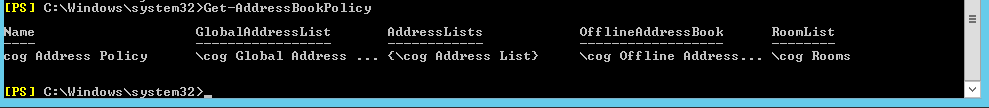

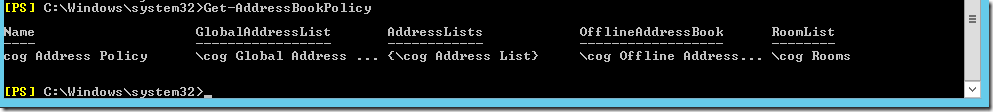

Seeing address book policy is created for its own tenant








Great Smile

Hope this article will help you in Installing configuring Website Panel.

I made the documentation as good I can



Thank you

Satheshwaran Manoharan
Satheshwaran Manoharanhttps://www.azure365pro.com
Award-winning Technology Leader with a wealth of experience running large teams and diversified industry exposure in cloud computing. From shipping lines to rolling stocks.In-depth expertise in driving cloud adoption strategies and modernizing systems to cloud native. Specialized in Microsoft Cloud, DevOps, and Microsoft 365 Stack and conducted numerous successful projects worldwide. Also, Acting as a Technical Advisor for various start-ups.

Related Articles

50 COMMENTS

  1. Hi,
    I have being reading your guide and I notice I have a problem in my configuration. When I create a mailboxplan the parameter hide from addresbook is always checked. How can i uncheck this box?

    Thanks

  2. Hi, Satheshwaran. thanks for your good articles.
    I understand how it work more…but I have a few question. May you help
    1. Did you entire servers install websitepanel?
    2. Did entire servers join AD Environment?
    and
    3. Do I have to install everything (like AD, Exchange) before install websitepanel?

    • 1. Did you entire servers install websitepanel?
      Website Panel Portal + Website Panel Enterprise Server on a Dedicated Server
      Website Panel Server on one Exchange server

      2. Did entire servers join AD Environment?
      Yes .
      and
      3. Do I have to install everything (like AD, Exchange) before install websitepanel?
      Yes .

  3. Hi, Satheshwaran,
    i have follow your article but stuck on create hosting space, the error message said:
    System.Web.Services.Protocols.SoapException: System.Web.Services.Protocols.SoapException: Server was unable to process request. —> System.Exception: Error executing ‘ADD’ task on ‘Pilotexchange2013’ HOSTING_SPACE_WR —> System.Data.SqlClient.SqlException: Timeout expired. The timeout period elapsed prior to completion of the operation or the server is not responding. —> System.ComponentModel.Win32Exception: The wait operation timed out
    — End of inner exception stack trace —
    at WebsitePanel.EnterpriseServer.PackageController.AddPackageWithResources(Int32 userId, Int32 planId, String spaceName, Int32 statusId, Boolean sendLetter, Boolean createResources, String domainName, Boolean createInstantAlias, Boolean createWebSite, Boolean createFtpAccount, String ftpAccountName, Boolean createMailAccount, String hostName)
    — End of inner exception stack trace —
    at WebsitePanel.EnterpriseServer.PackageController.AddPackageWithResources(Int32 userId, Int32 planId, String spaceName, Int32 statusId, Boolean sendLetter, Boolean createResources, String domainName, Boolean createInstantAlias, Boolean createWebSite, Boolean createFtpAccount, String ftpAccountName, Boolean createMailAccount, String hostName)
    — End of inner exception stack trace —
    at System.Web.Services.Protocols.SoapHttpClientProtocol.ReadResponse(SoapClientMessage message, WebResponse response, Stream responseStream, Boolean asyncCall)
    at System.Web.Services.Protocols.SoapHttpClientProtocol.Invoke(String methodName, Object[] parameters)
    at WebsitePanel.EnterpriseServer.esPackages.AddPackageWithResources(Int32 userId, Int32 planId, String spaceName, Int32 statusId, Boolean sendLetter, Boolean createResources, String domainName, Boolean tempDomain, Boolean createWebSite, Boolean createFtpAccount, String ftpAccountName, Boolean createMailAccount, String hostName)
    at WebsitePanel.Portal.UserCreateSpace.CreateHostingSpace()

    any advise?

  4. Hey! I cannot create mailboxes. I can create users. Can you help me? Many tnx:)
    System.Web.Services.Protocols.SoapException: Server was unable to process request. —> System.Exception: Error executing ‘CREATE_MAILBOX’ task on ” EXCHANGE —> System.Exception: Error executing ‘CREATE_MAILBOX’ task on ” EXCHANGE —> System.Exception: Error executing ‘CREATE_MAILBOX’ task on ” EXCHANGE —> System.Web.Services.Protocols.SoapException: Server was unable to process request. —> Execution result does not contain any object at System.Web.Services.Protocols.SoapHttpClientProtocol.ReadResponse(SoapClientMessage message, WebResponse response, Stream responseStream, Boolean asyncCall) at System.Web.Services.Protocols.SoapHttpClientProtocol.Invoke(String methodName, Object[] parameters) at WebsitePanel.Providers.Exchange.ExchangeServer.ExtendToExchangeOrganization(String organizationId, String securityGroup, Boolean IsConsumer) at WebsitePanel.EnterpriseServer.ExchangeServerController.ExtendToExchangeOrganization(Organization& org) — End of inner exception stack trace — at WebsitePanel.EnterpriseServer.ExchangeServerController.ExtendToExchangeOrganization(Organization& org) — End of inner exception stack trace — at WebsitePanel.EnterpriseServer.ExchangeServerController.ExtendToExchangeOrganization(Organization& org) at WebsitePanel.EnterpriseServer.ExchangeServerController.CreateMailbox(Int32 itemId, Int32 accountId, ExchangeAccountType accountType, String accountName, String displayName, String name, String domain, String password, Boolean sendSetupInstructions, String setupInstructionMailAddress, Int32 mailboxPlanId, String subscriberNumber) — End of inner exception stack trace — at WebsitePanel.EnterpriseServer.ExchangeServerController.CreateMailbox(Int32 itemId, Int32 accountId, ExchangeAccountType accountType, String accountName, String displayName, String name, String domain, String password, Boolean sendSetupInstructions, String

    • Make Sure WpServer has permissions. Try creating a User account if that works..
      Please reboot the Server once.

      That should fix it.

  5. So Good.But I’ve a problem about when create mailbox is not work. and with error below :
    System.Web.Services.Protocols.SoapException: Server was unable to process request. —> System.Exception: Error executing ‘CREATE_MAILBOX’ task on ” EXCHANGE —> System.Exception: Error executing ‘CREATE_MAILBOX’ task on ” EXCHANGE —> System.Exception: Error executing ‘CREATE_MAILBOX’ task on ” EXCHANGE —> System.Web.Services.Protocols.SoapException: System.Web.Services.Protocols.SoapException: Server was unable to process request. —> System.Exception: Could not enable mail Security Distribution Group ‘boldcow.com’ at WebsitePanel.Providers.HostedSolution.Exchange2013.EnableMailSecurityDistributionGroup(Runspace runSpace, String distName, String groupName) at WebsitePanel.Providers.HostedSolution.Exchange2013.ExtendToExchangeOrganizationInternal(String organizationId, String securityGroup, Boolean IsConsumer) at WebsitePanel.Server.ExchangeServer.ExtendToExchangeOrganization(String organizationId, String securityGroup, Boolean IsConsumer) — End of inner exception stack trace — at System.Web.Services.Protocols.SoapHttpClientProtocol.ReadResponse(SoapClientMessage message, WebResponse response, Stream responseStream, Boolean asyncCall)

    • I’m check WPServer account.It ‘s member Administrators,Domain Admins,Organization Management & IIS_IUSRS. I’m trying reboot but not work. I install AD,Exchange & WPS to same server

  6. Hi,
    Thanks for posting a nice article. Very useful !!!
    But I am facing an issue while creating mailboxes through the website panel tool. It says the following error message. Please share your thoughts: Seems to be a bug in version 2.1.0.207 on operating with ASP.NET 4.5 installed on Exchange 2013

    Error creating mailbox. See audit log for more details.

    System.Web.Services.Protocols.SoapException: Server was unable to process request. —> System.Exception: Error executing ‘CREATE_MAILBOX’ task on ” EXCHANGE —> System.Exception: Error executing ‘CREATE_MAILBOX’ task on ” EXCHANGE —> System.Exception: Error executing ‘CREATE_MAILBOX’ task on ” EXCHANGE —> System.Web.Services.Protocols.SoapException: Server was unable to process request. —> Cannot load Windows PowerShell Snap-In Microsoft.Exchange.Management.PowerShell.E2010 because of the following error: The type initializer for ‘Microsoft.Exchange.Data.Directory.Globals’ threw an exception. at System.Web.Services.Protocols.SoapHttpClientProtocol.ReadResponse(SoapClientMessage message, WebResponse response, Stream responseStream, Boolean asyncCall) at System.Web.Services.Protocols.SoapHttpClientProtocol.Invoke(String methodName, Object[] parameters) at WebsitePanel.Providers.Exchange.ExchangeServer.ExtendToExchangeOrganization(String organizationId, String securityGroup, Boolean IsConsumer) at WebsitePanel.EnterpriseServer.ExchangeServerController.ExtendToExchangeOrganization(Organization& org) — End of inner exception stack trace — at WebsitePanel.EnterpriseServer.ExchangeServerController.ExtendToExchangeOrganization(Organization& org) — End of inner exception stack trace — at WebsitePanel.EnterpriseServer.ExchangeServerController.ExtendToExchangeOrganization(Organization& org) at WebsitePanel.EnterpriseServer.ExchangeServerController.CreateMailbox(Int32 itemId, Int32 accountId, ExchangeAccountType accountType, String accountName, String displayName, String name, String domain, String password, Boolean sendSetupInstructions, String setupInstructionMailAddress, Int32 mailboxPlanId, String subscriberNumber) — End of inner exception stack trace — at WebsitePanel.EnterpriseServer.ExchangeServerController.CreateMailbox(Int32 itemId, Int32 accountId, ExchangeAccountType accountType, String accountName, String displayName, String name, String domain, String password, Boolean sendSetupInstructions, String setupInstructionMailAddress, Int32 mailboxPlanId, String subscriberNumber) — End of inner exception stack trace —

  7. SUper guide, thanks! Configure step by step, now i have error when i create Hosting Space, any ideas?

    http://172.30.3.1:9001/Default.aspx?pid=Home&mid=44&ctl=create_space&UserID=3 Logged User: serveradmin Work on Behalf: allesunix Hosting Space: 0 Stack Trace: System.Web.Services.Protocols.SoapException: System.Web.Services.Protocols.SoapException: Server was unable to process request. —> System.Exception: Error executing ‘CREATE_ORG’ task on ‘allesunix.ch’ ORGANIZATION —> System.Web.Services.Protocols.SoapException: System.Web.Services.Protocols.SoapException: Server was unable to process request. —> System.Runtime.InteropServices.COMException: Unknown error (0x80005000)
    at System.DirectoryServices.DirectoryEntry.Bind(Boolean throwIfFail)
    at System.DirectoryServices.DirectoryEntry.Exists(String path)
    at WebsitePanel.Providers.HostedSolution.OrganizationProvider.OrganizationExistsInternal(String organizationId)
    at WebsitePanel.Server.Organizations.OrganizationExists(String organizationId)
    — End of inner exception stack trace —
    at System.Web.Services.Protocols.SoapHttpClientProtocol.ReadResponse(SoapClientMessage message, WebResponse response, Stream responseStream, Boolean asyncCall)
    at System.Web.Services.Protocols.SoapHttpClientProtocol.Invoke(String methodName, Object[] parameters)
    at WebsitePanel.Providers.HostedSolution.Organizations.OrganizationExists(String organizationId)
    at WebsitePanel.EnterpriseServer.OrganizationController.CreateOrganization(Int32 packageId, String organizationId, String organizationName, String domainName)
    — End of inner exception stack trace —
    at WebsitePanel.EnterpriseServer.OrganizationController.CreateOrganization(Int32 packageId, String organizationId, String organizationName, String domainName)
    — End of inner exception stack trace —
    at System.Web.Services.Protocols.SoapHttpClientProtocol.ReadResponse(SoapClientMessage message, WebResponse response, Stream responseStream, Boolean asyncCall)
    at System.Web.Services.Protocols.SoapHttpClientProtocol.Invoke(String methodName, Object[] parameters)
    at WebsitePanel.EnterpriseServer.HostedSolution.esOrganizations.CreateOrganization(Int32 packageId, String organizationID, String organizationName, String domainName)
    at WebsitePanel.Portal.UserCreateSpace.CreateHostingSpace()

  8. Create New Mailbox

    Thak you for your articles. I have error when I create New Mailbox. Can you help me.

    Thanks

    Error creating mailbox. See audit log for more details.

    System.Web.Services.Protocols.SoapException: Server was unable to process request. —> System.Exception: Error executing ‘CREATE_MAILBOX’ task on ” EXCHANGE —> System.Web.Services.Protocols.SoapException: Server was unable to process request. —> Connecting to remote server hostedexchange.turknet.local failed with the following error message : Access is denied. For more information, see the about_Remote_Troubleshooting Help topic. at System.Web.Services.Protocols.SoapHttpClientProtocol.ReadResponse(SoapClientMessage message, WebResponse response, Stream responseStream, Boolean asyncCall) at System.Web.Services.Protocols.SoapHttpClientProtocol.Invoke(String methodName, Object[] parameters) at WebsitePanel.Providers.Exchange.ExchangeServer.CreateMailEnableUser(String upn, String organizationId, String organizationDistinguishedName, ExchangeAccountType accountType, String mailboxDatabase, String offlineAddressBook, String addressBookPolicy, String accountName, Boolean enablePOP, Boolean enableIMAP, Boolean enableOWA, Boolean enableMAPI, Boolean enableActiveSync, Int64 issueWarningKB, Int64 prohibitSendKB, Int64 prohibitSendReceiveKB, Int32 keepDeletedItemsDays, Int32 maxRecipients, Int32 maxSendMessageSizeKB, Int32 maxReceiveMessageSizeKB, Boolean hideFromAddressBook, Boolean isConsumer, Boolean enabledLitigationHold, Int64 recoverabelItemsSpace, Int64 recoverabelItemsWarning) at WebsitePanel.EnterpriseServer.ExchangeServerController.CreateMailbox(Int32 itemId, Int32 accountId, ExchangeAccountType accountType, String accountName, String displayName, String name, String domain, String password, Boolean sendSetupInstructions, String setupInstructionMailAddress, Int32 mailboxPlanId, String subscriberNumber) — End of inner exception stack trace — at WebsitePanel.EnterpriseServer.ExchangeServerController.CreateMailbox(Int32 itemId, Int32 accountId, ExchangeAccountType accountType, String accountName, String displayName, String name, String domain, String password, Boolean sendSetupInstructions, String setupInstructionMailAddress, Int32 mailboxPlanId, String subscriberNumber) — End of inner exception stack trace —

  9. If you run into Access Denied; ensure the Virtual Directory for Powershell is set for HTTPS not HTTP. If you change this, reboot the CAS server and WSP should work.

  10. Hello first great job!
    i have some trouble with adding a hosted Organisation – can you help me plese?
    System.Web.Services.Protocols.SoapException: System.Web.Services.Protocols.SoapException: Server was unable to process request. —> System.Exception: Error executing ‘CREATE_ORG’ task on ‘mkulm.de’ ORGANIZATION —> System.Web.Services.Protocols.SoapException: System.Web.Services.Protocols.SoapException: Server was unable to process request. —> System.DirectoryServices.DirectoryServicesCOMException: Ein solches Objekt ist auf dem Server nicht vorhanden.

    at System.DirectoryServices.DirectoryEntry.Bind(Boolean throwIfFail)
    at System.DirectoryServices.DirectoryEntry.Bind()
    at System.DirectoryServices.DirectoryEntry.RefreshCache()
    at WebsitePanel.Providers.HostedSolution.ActiveDirectoryUtils.CreateOrganizationalUnit(String name, String parentPath)
    at WebsitePanel.Providers.HostedSolution.OrganizationProvider.CreateOrganizationInternal(String organizationId)
    at WebsitePanel.Server.Organizations.CreateOrganization(String organizationId)
    — End of inner exception stack trace —
    at System.Web.Services.Protocols.SoapHttpClientProtocol.ReadResponse(SoapClientMessage message, WebResponse response, Stream responseStream, Boolean asyncCall)
    at System.Web.Services.Protocols.SoapHttpClientProtocol.Invoke(String methodName, Object[] parameters)
    at WebsitePanel.Providers.HostedSolution.Organizations.CreateOrganization(String organizationId)
    at WebsitePanel.EnterpriseServer.OrganizationController.CreateOrganization(Int32 packageId, String organizationId, String organizationName, String domainName)
    — End of inner exception stack trace —
    at WebsitePanel.EnterpriseServer.OrganizationController.CreateOrganization(Int32 packageId, String organizationId, String organizationName, String domainName)
    — End of inner exception stack trace —
    at System.Web.Services.Protocols.SoapHttpClientProtocol.ReadResponse(SoapClientMessage message, WebResponse response, Stream responseStream, Boolean asyncCall)
    at System.Web.Services.Protocols.SoapHttpClientProtocol.Invoke(String methodName, Object[] parameters)
    at WebsitePanel.EnterpriseServer.HostedSolution.esOrganizations.CreateOrganization(Int32 packageId, String organizationID, String organizationName, String domainName)
    at WebsitePanel.Portal.UserCreateSpace.CreateHostingSpace()

  11. Okay Hosted Org is soleved i have Trouble adding a Mailbox:
    Error creating mailbox. See audit log for more details.

    System.Web.Services.Protocols.SoapException: Server was unable to process request. —> System.Exception: Error executing ‘CREATE_MAILBOX’ task on ” EXCHANGE —> System.Exception: Error executing ‘CREATE_MAILBOX’ task on ” EXCHANGE —> System.Exception: Error executing ‘CREATE_MAILBOX’ task on ” EXCHANGE —> System.Web.Services.Protocols.SoapException: System.Web.Services.Protocols.SoapException: Server was unable to process request. —> System.Exception: Could not enable mail Security Distribution Group ‘mkulm.de’ at WebsitePanel.Providers.HostedSolution.Exchange2013.EnableMailSecurityDistributionGroup(Runspace runSpace, String distName, String groupName) at WebsitePanel.Providers.HostedSolution.Exchange2013.ExtendToExchangeOrganizationInternal(String organizationId, String securityGroup, Boolean IsConsumer) at WebsitePanel.Server.ExchangeServer.ExtendToExchangeOrganization(String organizationId, String securityGroup, Boolean IsConsumer) — End of inner exception stack trace — at System.Web.Services.Protocols.SoapHttpClientProtocol.ReadResponse(SoapClientMessage message, WebResponse response, Stream responseStream, Boolean asyncCall) at System.Web.Services.Protocols.SoapHttpClientProtocol.Invoke(String methodName, Object[] parameters) at WebsitePanel.Providers.Exchange.ExchangeServer.ExtendToExchangeOrganization(String organizationId, String securityGroup, Boolean IsConsumer) at WebsitePanel.EnterpriseServer.ExchangeServerController.ExtendToExchangeOrganization(Organization& org) — End of inner exception stack trace — at WebsitePanel.EnterpriseServer.ExchangeServerController.ExtendToExchangeOrganization(Organization& org) — End of inner exception stack trace — at WebsitePanel.EnterpriseServer.ExchangeServerController.ExtendToExchangeOrganization(Organization& org) at WebsitePanel.EnterpriseServer.ExchangeServerController.CreateMailbox(Int32 itemId, Int32 accountId, ExchangeAccountType accountType, String accountName, String displayName, String name, String domain, String password, Boolean sendSetupInstructions, String setupInstructionMailAddress, Int32 mailboxPlanId, Int32 archivedPlanId, String subscriberNumber) — End of inner exception stack trace — at WebsitePanel.EnterpriseServer.ExchangeServerController.CreateMailbox(Int32 itemId, Int32 accountId, ExchangeAccountType accountType, String accountName, String displayName, String name, String domain, String password, Boolean sendSetupInstructions, String setupInstructionMailAddress, Int32 mailboxPlanId, Int32 archivedPlanId, String subscriberNumber) — End of inner exception stack trace —

    • Check service account is added with appropriate roles . check for Power-shell authentication as well

    • Hello,

      Could you please share the steps how you solved Hosted Org issue “System.Exception: Error executing ‘CREATE_ORG’ task on ‘mkulm.de’ ORGANIZATION —> System.Web.Services.Protocols.SoapException: ”

      I have configured everything properly but still facing this error

  12. Hello!

    Firstly, this site is awesome! 🙂

    Secondly.. I try to make this work with Exchange 2013 SP1, and WSP 2.1.0355
    I have the following environment:
    -2 x DC,
    -2 x MBX+CAS, (with DAG)
    -1 x CAS
    -1 x Dedicated WSP Server+WSP Enterprise
    WSP server is installed on all Exchange box.

    I can create organizations, hosting plans, etc, but not mailboxes.

    However, I receive the following error message when I try to create the mailbox for the user/new mailbox:
    Error creating mailbox. See audit log for more details.

    System.Web.Services.Protocols.SoapException: Server was unable to process request. —> System.Exception: Error executing ‘CREATE_MAILBOX’ task on ” EXCHANGE —> System.Web.Services.Protocols.SoapException: Server was unable to process request. —> Connecting to remote server exch-01.cloud.local failed with the following error message : Access is denied. For more information, see the about_Remote_Troubleshooting Help topic. at System.Web.Services.Protocols.SoapHttpClientProtocol.ReadResponse(SoapClientMessage message, WebResponse response, Stream responseStream, Boolean asyncCall) at System.Web.Services.Protocols.SoapHttpClientProtocol.Invoke(String methodName, Object[] parameters) at WebsitePanel.Providers.Exchange.ExchangeServer.CreateMailEnableUser(String upn, String organizationId, String organizationDistinguishedName, ExchangeAccountType accountType, String mailboxDatabase, String offlineAddressBook, String addressBookPolicy, String accountName, Boolean enablePOP, Boolean enableIMAP, Boolean enableOWA, Boolean enableMAPI, Boolean enableActiveSync, Int64 issueWarningKB, Int64 prohibitSendKB, Int64 prohibitSendReceiveKB, Int32 keepDeletedItemsDays, Int32 maxRecipients, Int32 maxSendMessageSizeKB, Int32 maxReceiveMessageSizeKB, Boolean hideFromAddressBook, Boolean isConsumer, Boolean enabledLitigationHold, Int64 recoverabelItemsSpace, Int64 recoverabelItemsWarning) at WebsitePanel.EnterpriseServer.ExchangeServerController.CreateMailbox(Int32 itemId, Int32 accountId, ExchangeAccountType accountType, String accountName, String displayName, String name, String domain, String password, Boolean sendSetupInstructions, String setupInstructionMailAddress, Int32 mailboxPlanId, Int32 archivedPlanId, String subscriberNumber, Boolean EnableArchiving) — End of inner exception stack trace — at WebsitePanel.EnterpriseServer.ExchangeServerController.CreateMailbox(Int32 itemId, Int32 accountId, ExchangeAccountType accountType, String accountName, String displayName, String name, String domain, String password, Boolean sendSetupInstructions, String setupInstructionMailAddress, Int32 mailboxPlanId, Int32 archivedPlanId, String subscriberNumber, Boolean EnableArchiving) — End of inner exception stack trace —

    My first thought was it’s with the VirtualDirectory configuration, but, after testing that with EMS, all looked good.
    Any idea, suggestion?

    Thanks a lot!
    Andrew

      • Hello again!

        I just set the executionpolicy to unrestricted, and it gave the same error.. Any other thoughts?

        Thanks,
        Andrew

        • Powershell URL – to HTTPS
          Make sure windows auth is enabled in IIS Virtual directory.
          do iis reset and reboot the server

  13. Hi,

    Thanks a lot!

    I had to do the following (maybe will helpful for other guys like me 🙂 ):
    – Add a trusted certificate issued to the machine’s fqdn,
    – Set up the https listener for winrm (winrm create winrm/config/Listener?Address=IP:10.10.10.10+Transport=HTTPS)
    – Set the proper bindings in IIS to PowerShell virtual directory!

    Thanks again for the guidance!

    Have a great day!
    Andrew

  14. Hi , I am using windows 2012 r2 , Exchange Sp1 and website panel 2.1.0.363

    Error creating mailbox. See audit log for more details.

    System.Web.Services.Protocols.SoapException: Server was unable to process request. —> System.Exception: Error executing ‘CREATE_MAILBOX’ task on ” EXCHANGE —> System.Exception: Error executing ‘CREATE_MAILBOX’ task on ” EXCHANGE —> System.Exception: Error executing ‘CREATE_MAILBOX’ task on ” EXCHANGE —> System.Web.Services.Protocols.SoapException: Server was unable to process request. —> Execution result does not contain any object at System.Web.Services.Protocols.SoapHttpClientProtocol.ReadResponse(SoapClientMessage message, WebResponse response, Stream responseStream, Boolean asyncCall) at System.Web.Services.Protocols.SoapHttpClientProtocol.Invoke(String methodName, Object[] parameters) at WebsitePanel.EnterpriseServer.ExchangeServerController.ExtendToExchangeOrganization(Organization& org) — End of inner exception stack trace — at WebsitePanel.EnterpriseServer.ExchangeServerController.ExtendToExchangeOrganization(Organization& org) — End of inner exception stack trace — at WebsitePanel.EnterpriseServer.ExchangeServerController.ExtendToExchangeOrganization(Organization& org) at WebsitePanel.EnterpriseServer.ExchangeServerController.CreateMailbox(Int32 itemId, Int32 accountId, ExchangeAccountType accountType, String accountName, String displayName, String name, String domain, String password, Boolean sendSetupInstructions, String setupInstructionMailAddress, Int32 mailboxPlanId, Int32 archivedPlanId, String subscriberNumber, Boolean EnableArchiving) — End of inner exception stack trace — at WebsitePanel.EnterpriseServer.ExchangeServerController.CreateMailbox(Int32 itemId, Int32 accountId, ExchangeAccountType accountType, String accountName, String displayName, String name, String domain, String password, Boolean sendSetupInstructions, String setupInstructionMailAddress, Int32 mailboxPlanId, Int32 archivedPlanId, String subscriberNumber, Boolean EnableArchiving) — End of inner exception stack trace —

  15. I forget where I found the article, but I had a lot of issues with creating hosting spaces, emails, customers, etc. I came across a thread that stated
    WebsitePanel Server = local IP | Default Port | no hostname
    Enterprise Server = local IP | default port | no hostname
    Website portal = local IP | default port | either hostname or no hostname (i chose hostname)

    Resolved all the SOAP Exception errors on creation.

    I have a stupid simple walkthrough for configuring WebsitePanel and additional stuff on planetxtech.com
    Hope it helps someone to pull out less hair than I did 🙂
    Cheers

  16. This is very interesting, You are an excessively skilled blogger.
    I have joined your rss feed and stay up for in the hunt for more of
    your magnificent post. Additionally, I have shared your web site in my
    social networks

  17. Hi

    great guide. I run into this error when trying to create a mailbox. Any ideas?

    System.Web.Services.Protocols.SoapException: Server was unable to process request. —> System.Exception: Error executing ‘CREATE_MAILBOX’ task on ‘Shared user’ EXCHANGE —> System.Web.Services.Protocols.SoapException: System.Web.Services.Protocols.SoapException: Server was unable to process request. —> System.Management.Automation.Remoting.PSRemotingTransportException: Connecting to remote server 127.0.0.1 failed with the following error message : [ClientAccessServer=PLUTO,BackEndServer=,RequestId=0efb6e9e-e8a5-46f6-b8c7-304adbdacb0c,TimeStamp=9/22/2015 3:06:52 PM] Access is denied. For more information, see the about_Remote_Troubleshooting Help topic. at System.Management.Automation.Runspaces.Internal.RunspacePoolInternal.EndOpen(IAsyncResult asyncResult) at System.Management.Automation.RemoteRunspace.Open() at WebsitePanel.Providers.HostedSolution.Exchange2013.OpenRunspaceEx() at WebsitePanel.Providers.HostedSolution.Exchange2013.CreateMailEnableUserInternal(String upn, String organizationId, String organizationDistinguishedName, String securityGroup, String organizationDomain, ExchangeAccountType accountType, String mailboxDatabase, String offlineAddressBook, String addressBookPolicy, String accountName, Boolean enablePOP, Boolean enableIMAP, Boolean enableOWA, Boolean enableMAPI, Boolean enableActiveSync, Int64 issueWarningKB, Int64 prohibitSendKB, Int64 prohibitSendReceiveKB, Int32 keepDeletedItemsDays, Int32 maxRecipients, Int32 maxSendMessageSizeKB, Int32 maxReceiveMessageSizeKB, Boolean hideFromAddressBook, Boolean IsConsumer, Boolean enabledLitigationHold, Int64 recoverabelItemsSpace, Int64 recoverabelItemsWarning) at WebsitePanel.Server.ExchangeServer.CreateMailEnableUser(String upn, String organizationId, String organizationDistinguishedName, String securityGroup, String organizationDomain, ExchangeAccountType accountType, String mailboxDatabase, String offlineAddressBook, String addressBookPolicy, String accountName, Boolean enablePOP, Boolean enableIMAP, Boolean enableOWA, Boolean enableMAPI, Boolean enableActiveSync, Int64 issueWarningKB, Int64 prohibitSendKB, Int64 prohibitSendReceiveKB, Int32 keepDeletedItemsDays, Int32 maxRecipients, Int32 maxSendMessageSizeKB, Int32 maxReceiveMessageSizeKB, Boolean hideFromAddressBook, Boolean isConsumer, Boolean enabledLitigationHold, Int64 recoverabelItemsSpace, Int64 recoverabelItemsWarning) — End of inner exception stack trace — at System.Web.Services.Protocols.SoapHttpClientProtocol.ReadResponse(SoapClientMessage message, WebResponse response, Stream responseStream, Boolean asyncCall) at System.Web.Services.Protocols.SoapHttpClientProtocol.Invoke(String methodName, Object[] parameters) at WebsitePanel.Providers.Exchange.ExchangeServer.CreateMailEnableUser(String upn, String organizationId, String organizationDistinguishedName, String securityGroup, String organizationDomain, ExchangeAccountType accountType, String mailboxDatabase, String offlineAddressBook, String addressBookPolicy, String accountName, Boolean enablePOP, Boolean enableIMAP, Boolean enableOWA, Boolean enableMAPI, Boolean enableActiveSync, Int64 issueWarningKB, Int64 prohibitSendKB, Int64 prohibitSendReceiveKB, Int32 keepDeletedItemsDays, Int32 maxRecipients, Int32 maxSendMessageSizeKB, Int32 maxReceiveMessageSizeKB, Boolean hideFromAddressBook, Boolean isConsumer, Boolean enabledLitigationHold, Int64 recoverabelItemsSpace, Int64 recoverabelItemsWarning) at WebsitePanel.EnterpriseServer.ExchangeServerController.CreateMailbox(Int32 itemId, Int32 accountId, ExchangeAccountType accountType, String accountName, String displayName, String name, String domain, String password, Boolean sendSetupInstructions, String setupInstructionMailAddress, Int32 mailboxPlanId, Int32 archivedPlanId, String subscriberNumber, Boolean EnableArchiving) — End of inner exception stack trace — at WebsitePanel.EnterpriseServer.ExchangeServerController.CreateMailbox(Int32 itemId, Int32 accountId, ExchangeAccountType accountType, String accountName, String displayName, String name, String domain, String password, Boolean sendSetupInstructions, String setupInstructionMailAddress, Int32 mailboxPlanId, Int32 archivedPlanId, String subscriberNumber, Boolean EnableArchiving) at WebsitePanel.EnterpriseServer.esExchangeServer.CreateMailbox(Int32 itemId, Int32 accountId, ExchangeAccountType accountType, String accountName, String displayName, String name, String domain, String password, Boolean sendSetupInstructions, String setupInstructionMailAddress, Int32 mailboxPlanId, Int32 archivedPlanId, String subscriberNumber, Boolean EnableArchiving) — End of inner exception stack trace —

    Thanks 🙂

      • Dear Sir,

        I am facing an issue while creating mailbox in website panel 2.1 stable release and the error is mentioned below. I want you to please help me to resolve this issue.

        Error creating mailbox. See audit log for more details.

        System.Web.Services.Protocols.SoapException: Server was unable to process request. —> System.Exception: Error executing ‘CREATE_MAILBOX’ task on ‘Azeem Ahmed’ EXCHANGE —> System.Web.Services.Protocols.SoapException: Server was unable to process request. —> Connecting to remote server federal-ex01.federalnet.intra failed with the following error message : Access is denied. For more information, see the about_Remote_Troubleshooting Help topic. at System.Web.Services.Protocols.SoapHttpClientProtocol.ReadResponse(SoapClientMessage message, WebResponse response, Stream responseStream, Boolean asyncCall) at System.Web.Services.Protocols.SoapHttpClientProtocol.Invoke(String methodName, Object[] parameters) at WebsitePanel.Providers.Exchange.ExchangeServer.CreateMailEnableUser(String upn, String organizationId, String organizationDistinguishedName, String securityGroup, String organizationDomain, ExchangeAccountType accountType, String mailboxDatabase, String offlineAddressBook, String addressBookPolicy, String accountName, Boolean enablePOP, Boolean enableIMAP, Boolean enableOWA, Boolean enableMAPI, Boolean enableActiveSync, Int64 issueWarningKB, Int64 prohibitSendKB, Int64 prohibitSendReceiveKB, Int32 keepDeletedItemsDays, Int32 maxRecipients, Int32 maxSendMessageSizeKB, Int32 maxReceiveMessageSizeKB, Boolean hideFromAddressBook, Boolean isConsumer, Boolean enabledLitigationHold, Int64 recoverabelItemsSpace, Int64 recoverabelItemsWarning) at WebsitePanel.EnterpriseServer.ExchangeServerController.CreateMailbox(Int32 itemId, Int32 accountId, ExchangeAccountType accountType, String accountName, String displayName, String name, String domain, String password, Boolean sendSetupInstructions, String setupInstructionMailAddress, Int32 mailboxPlanId, Int32 archivedPlanId, String subscriberNumber, Boolean EnableArchiving) — End of inner exception stack trace — at WebsitePanel.EnterpriseServer.ExchangeServerController.CreateMailbox(Int32 itemId, Int32 accountId, ExchangeAccountType accountType, String accountName, String displayName, String name, String domain, String password, Boolean sendSetupInstructions, String setupInstructionMailAddress, Int32 mailboxPlanId, Int32 archivedPlanId, String subscriberNumber, Boolean EnableArchiving) at WebsitePanel.EnterpriseServer.esExchangeServer.CreateMailbox(Int32 itemId, Int32 accountId, ExchangeAccountType accountType, String accountName, String displayName, String name, String domain, String password, Boolean sendSetupInstructions, String setupInstructionMailAddress, Int32 mailboxPlanId, Int32 archivedPlanId, String subscriberNumber, Boolean EnableArchiving) — End of inner exception stack trace —

  18. What’s up to all, the contents existing at this web site are genuinely remarkable for people experience, well,
    keep up the nice work fellows.

  19. I really like what you guys tend to be up
    too. This type of clever work and reporting! Keep up the
    very good works guys I’ve added you guys to our blogroll.

  20. Have you ever considered creating an e-book or guest authoring on other sites?
    I have a blog based upon on the same topics you discuss
    and would really like to have you share some stories/information. I
    know my subscribers would value your work. If you are even remotely interested, feel free to send me an e-mail.

LEAVE A REPLY

Please enter your comment!
Please enter your name here

× How can I help you?
