vCenter Server Appliance Upgrade from 6.0 to 6.5

Lets see how to get the vCenter Server Appliance update from 6.0 to 6.5

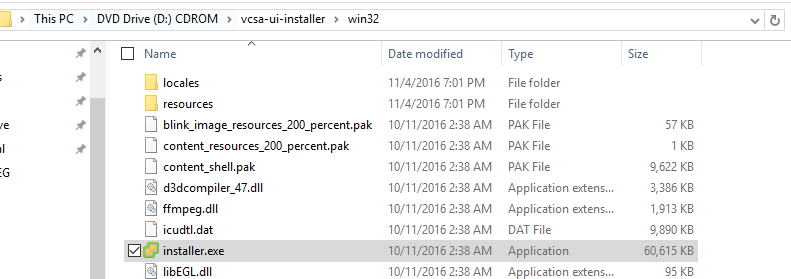

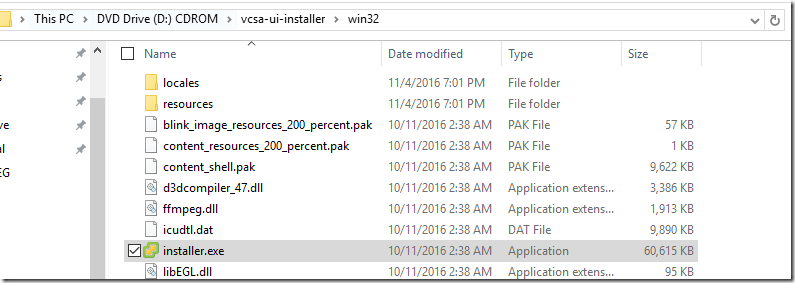

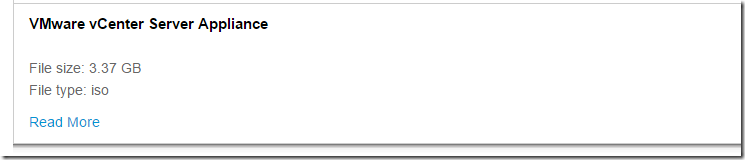

Run the Installer.exe from the ISO if its a Windows Machine.

D:\vcsa-ui-installer\win32\installer.exe

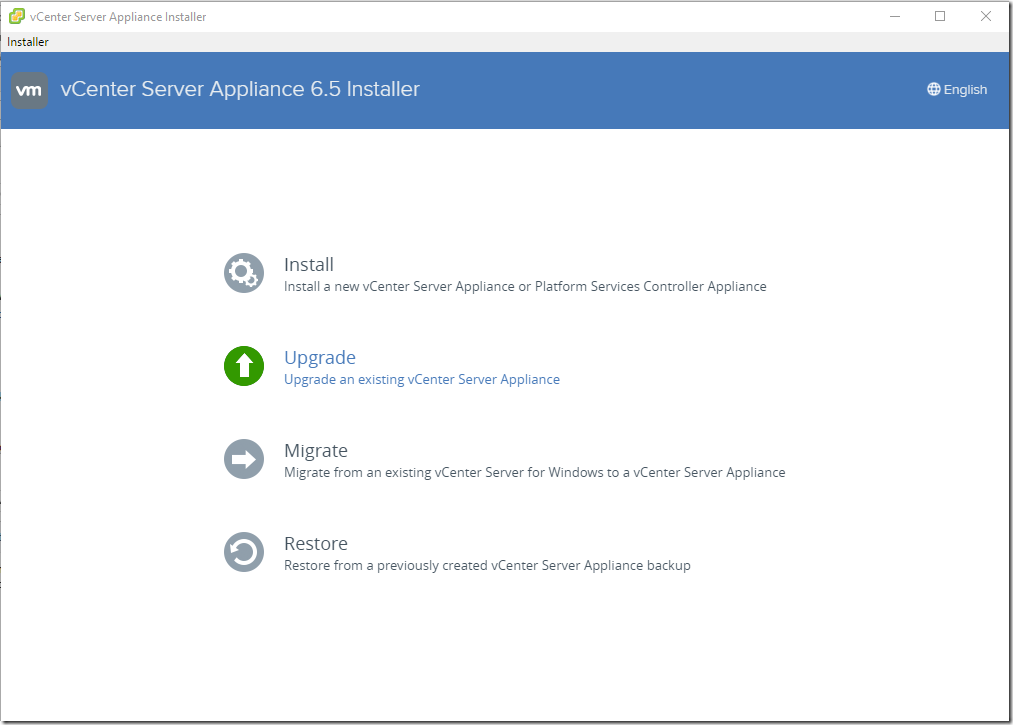

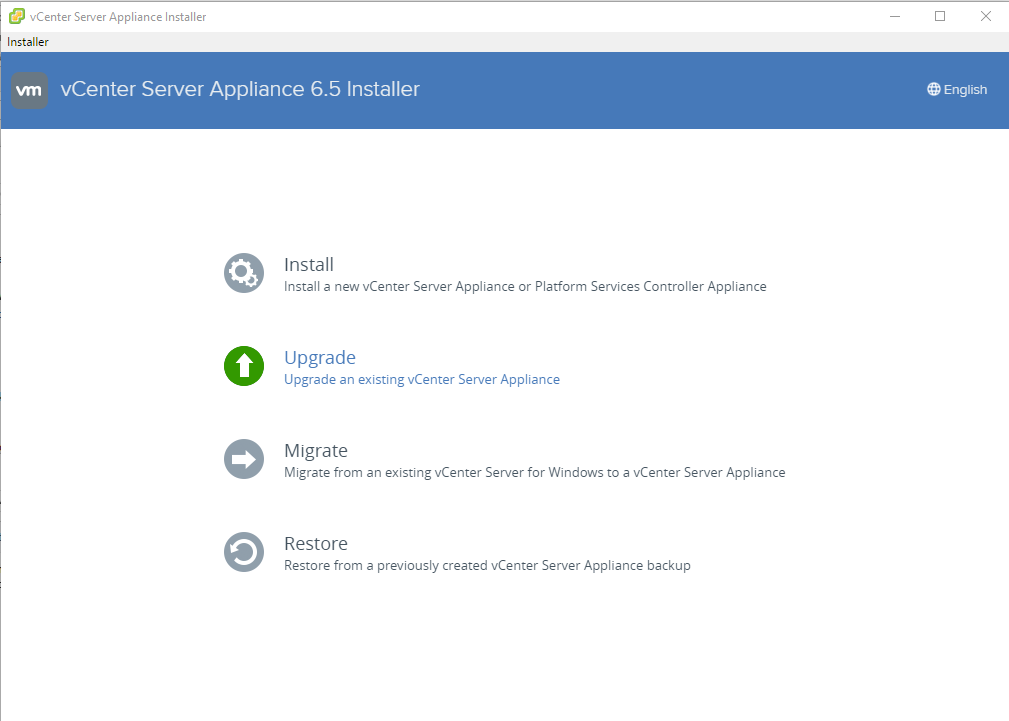

Choose Upgrade –

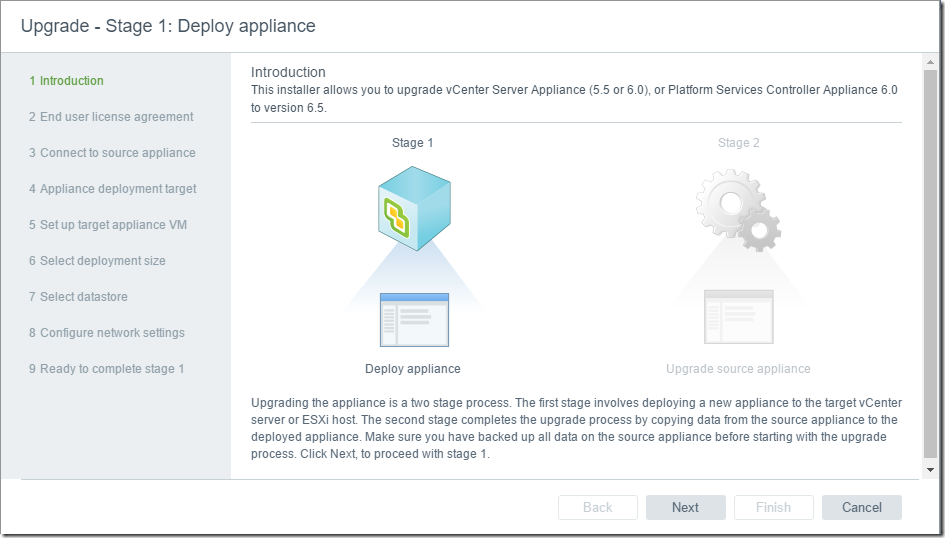

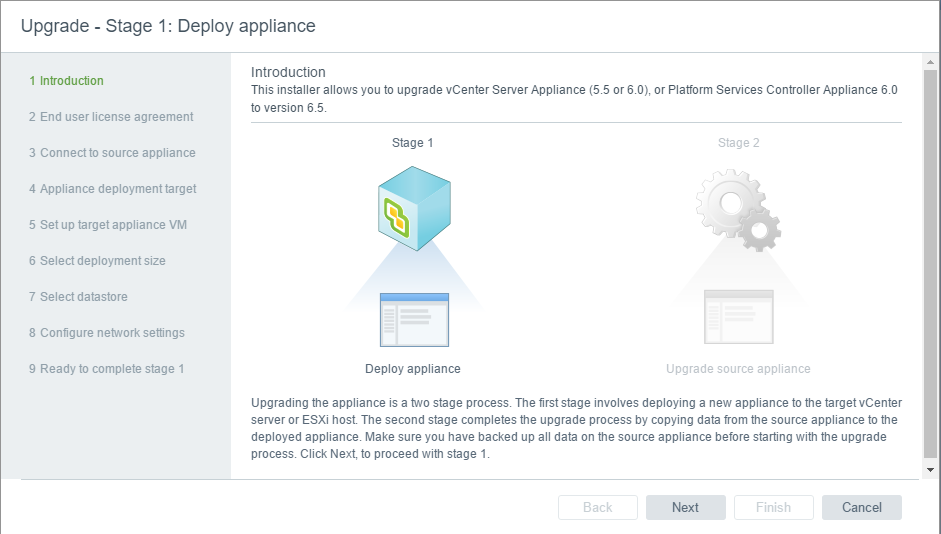

Two Stage Process

Stage 1  – Deploy New vcenter Temp

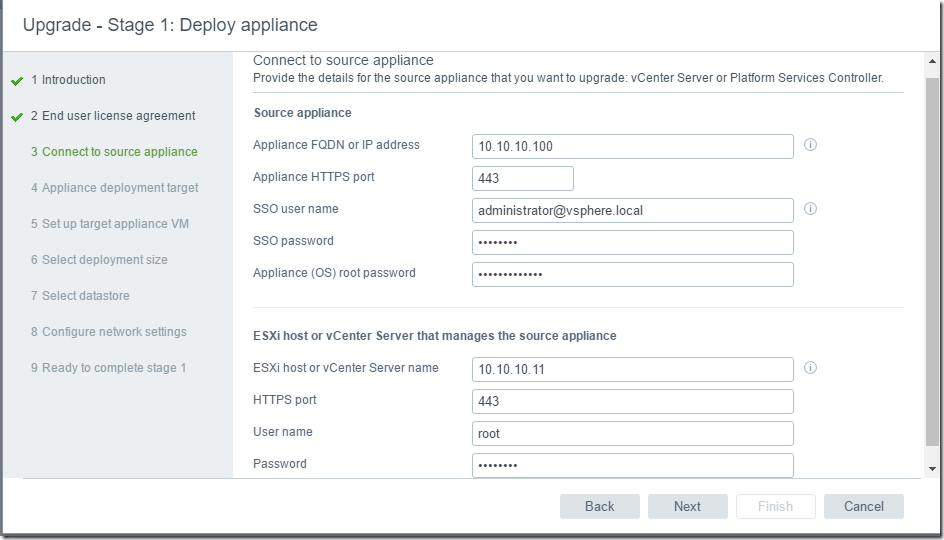

Stage 1  – Enter Source and target info.

If its a same cluster . Mention the esxi info.

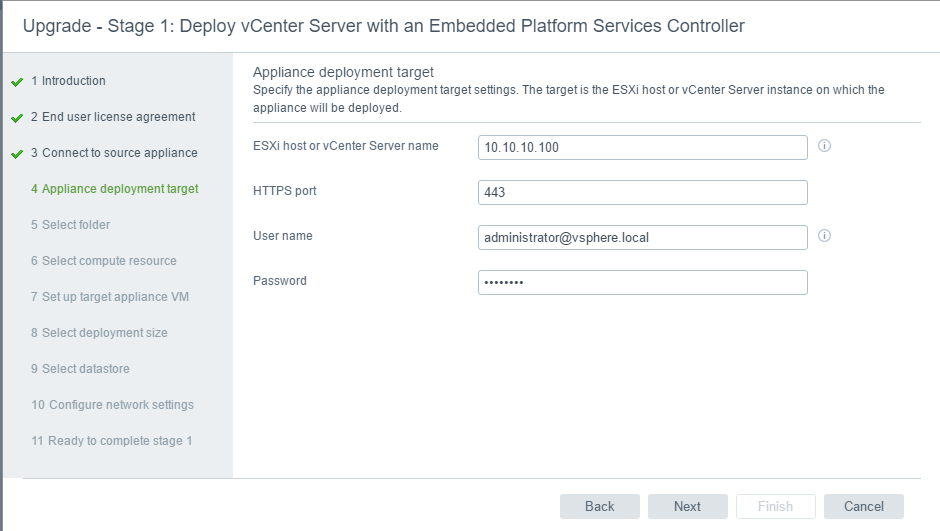

Enter Target Info –


Security Untrusted SSL Prompt – Say Yes.

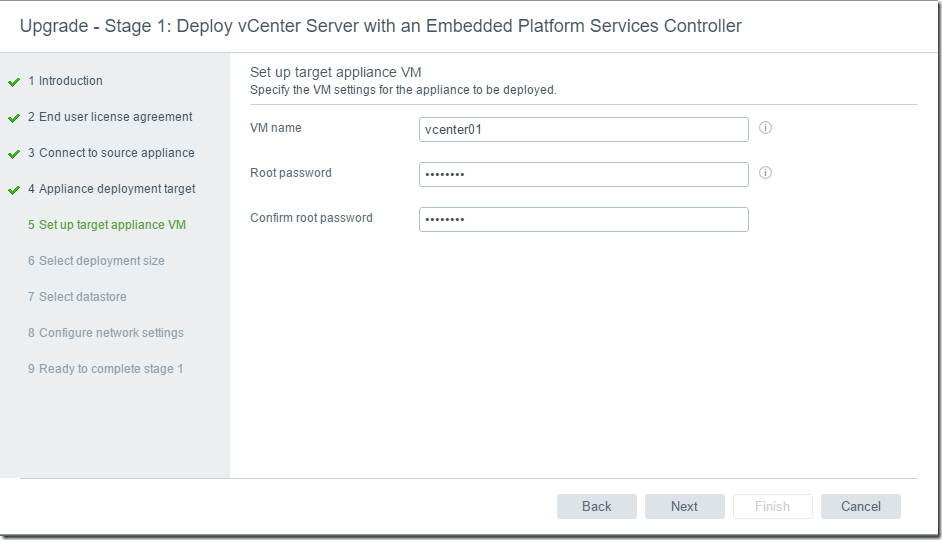

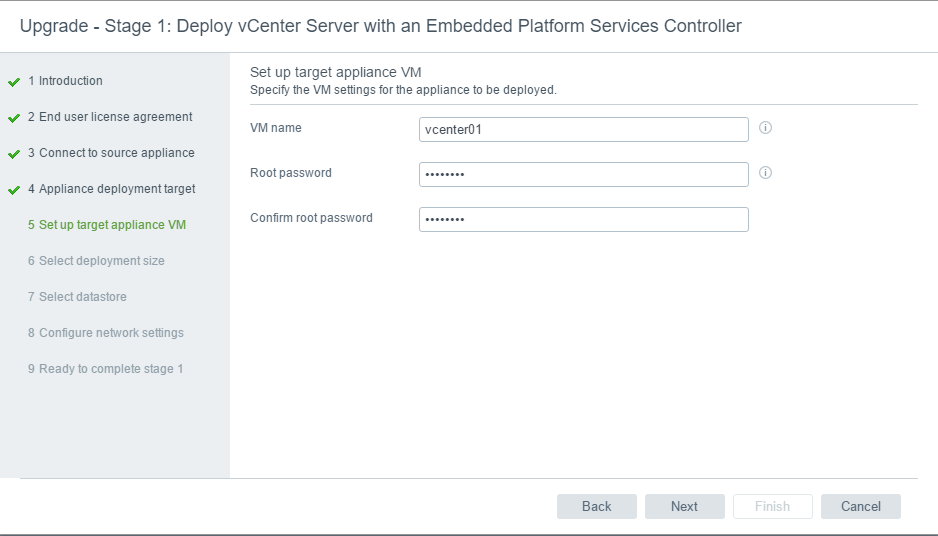

Enter Temporary vcentername.

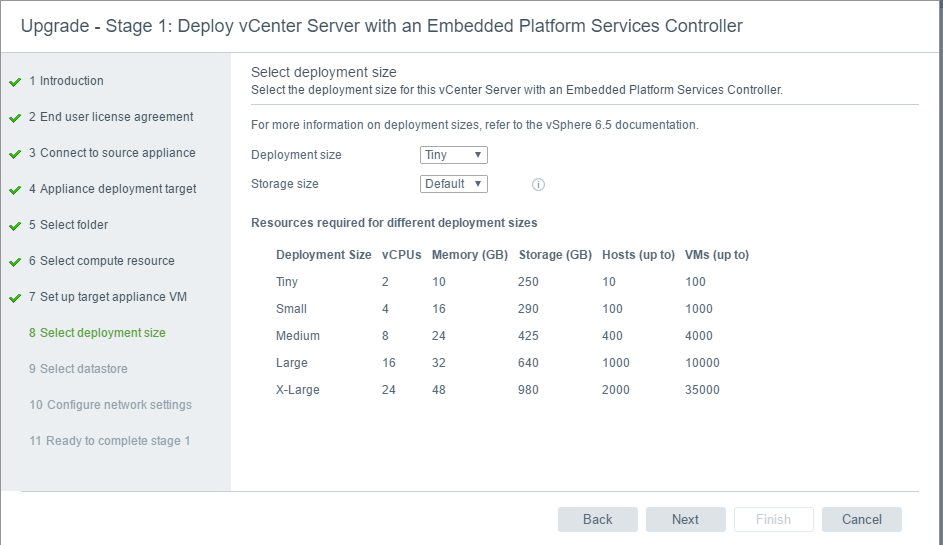

Choose vcenter Size

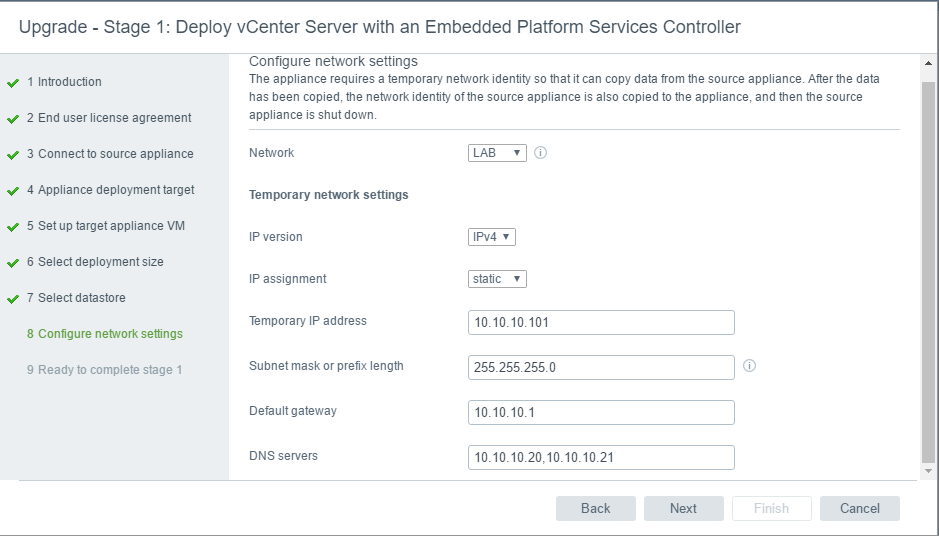

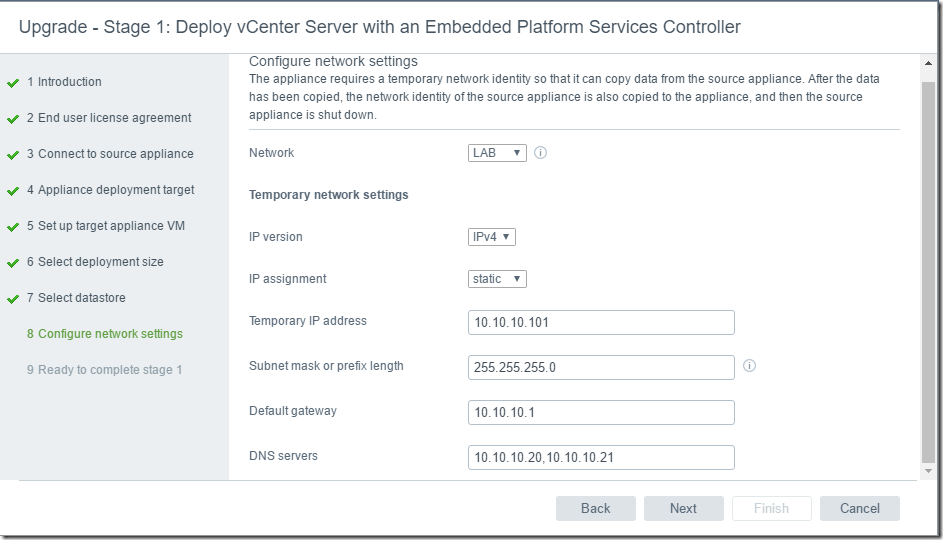

Enter Temporary IP info. Same VLAN preferred.

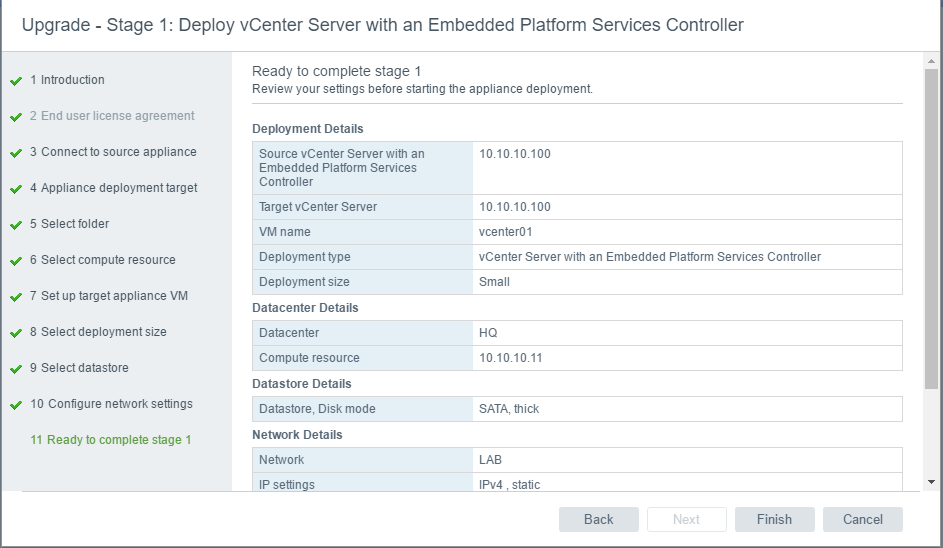

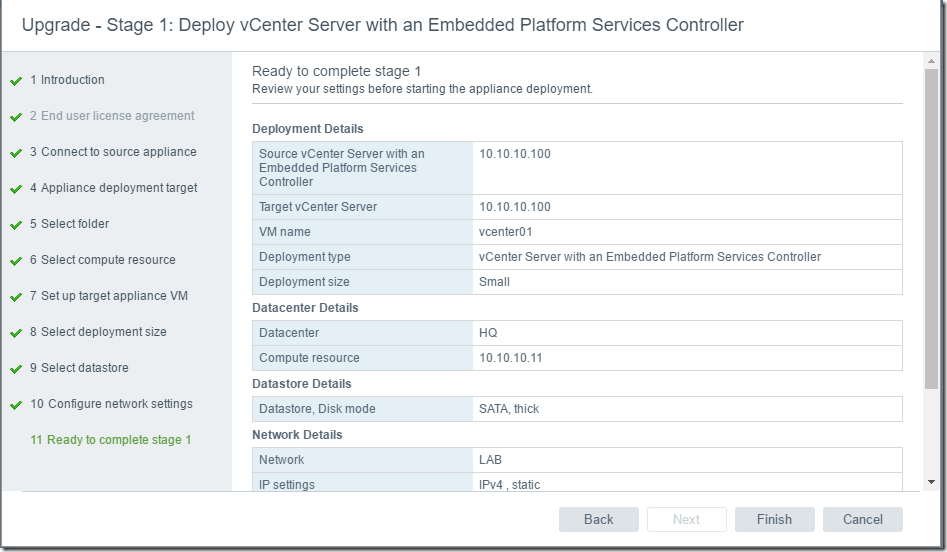

Choose Finish

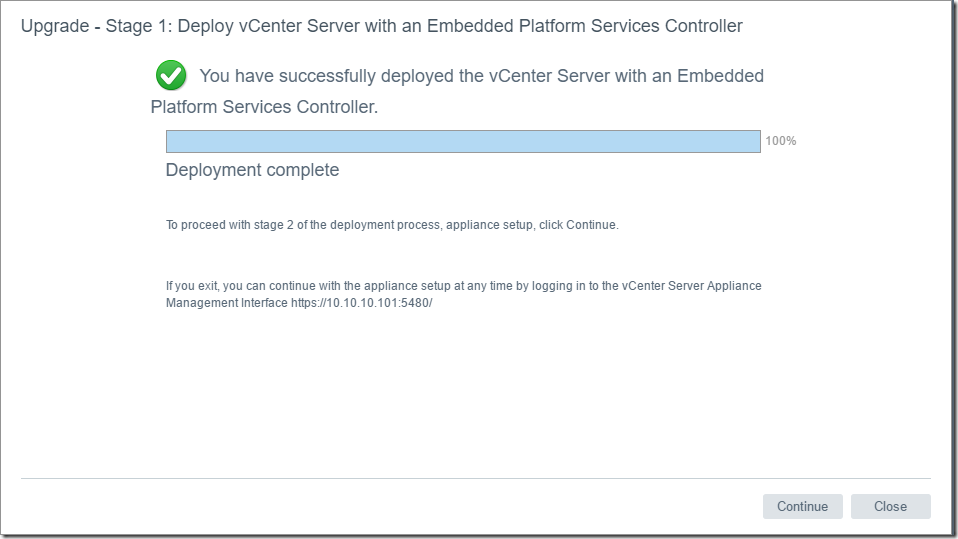

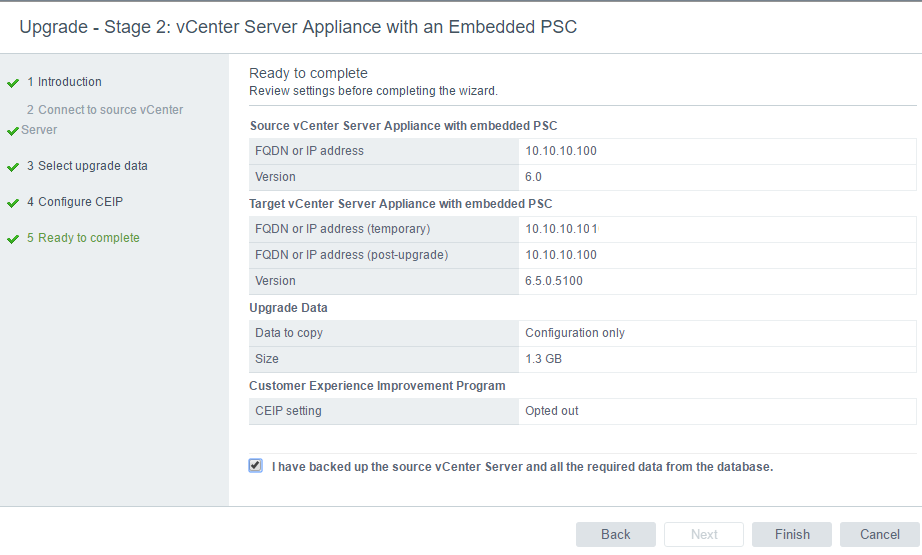

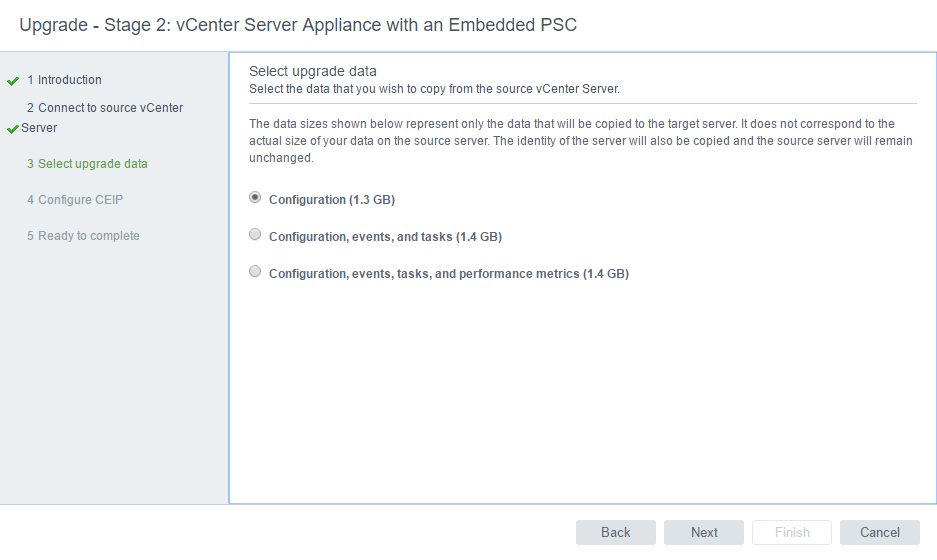

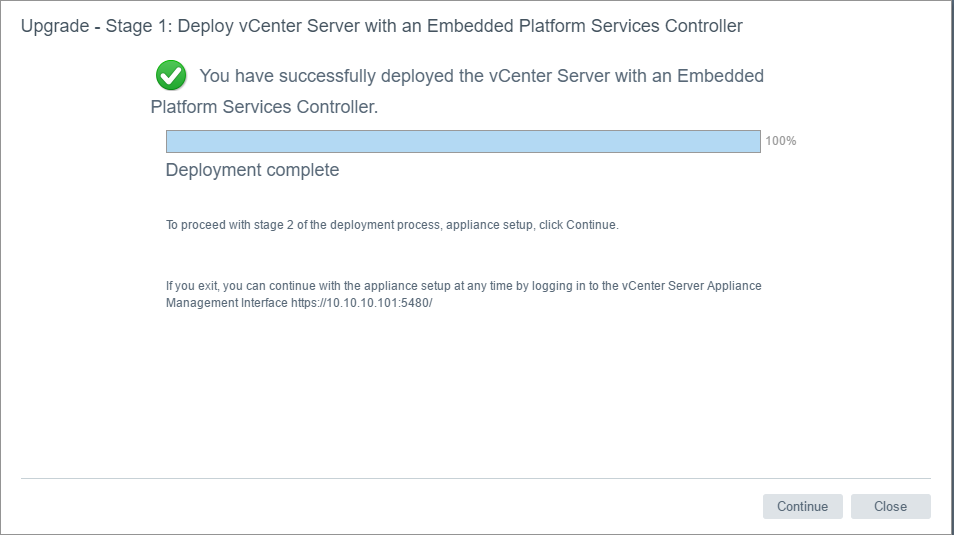

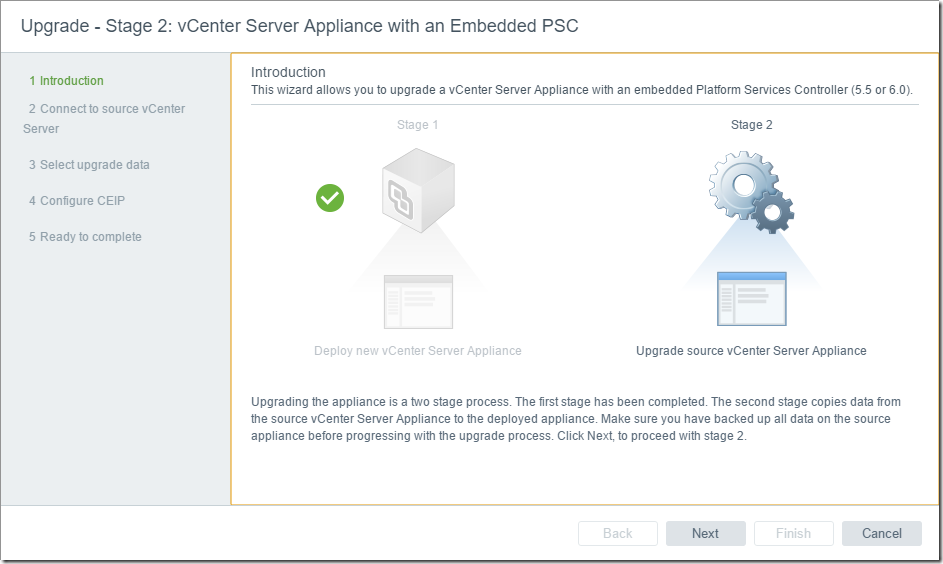

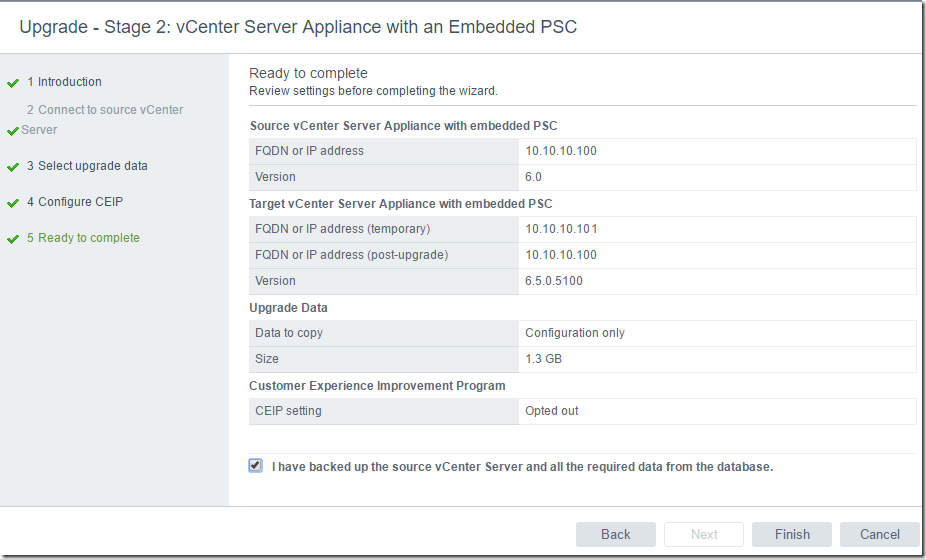

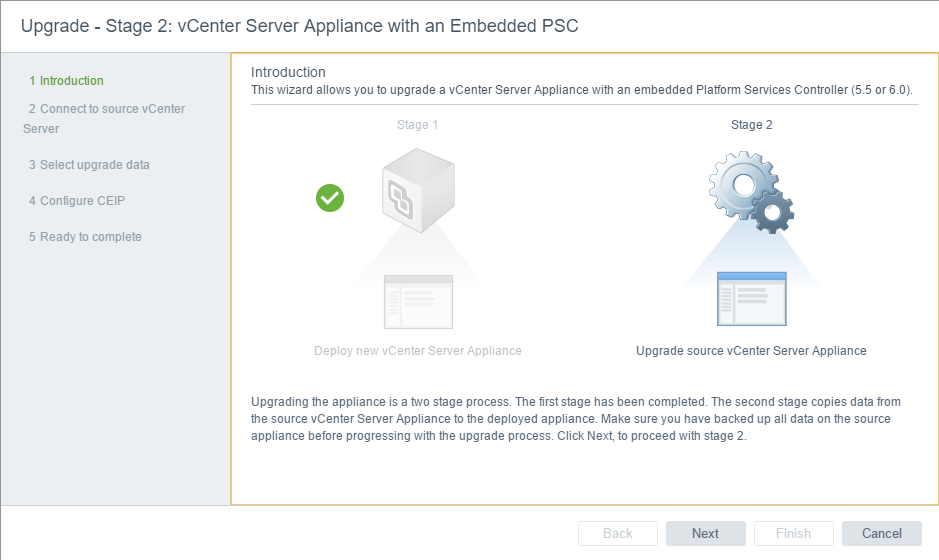

Now you can choose Stage 2- or continue stage 2 using  https://temp-ip:5480

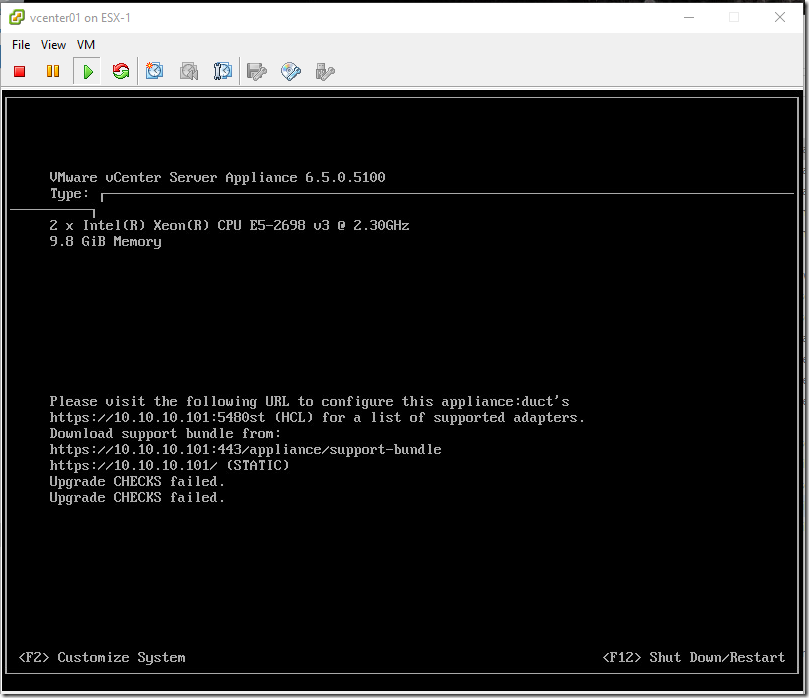

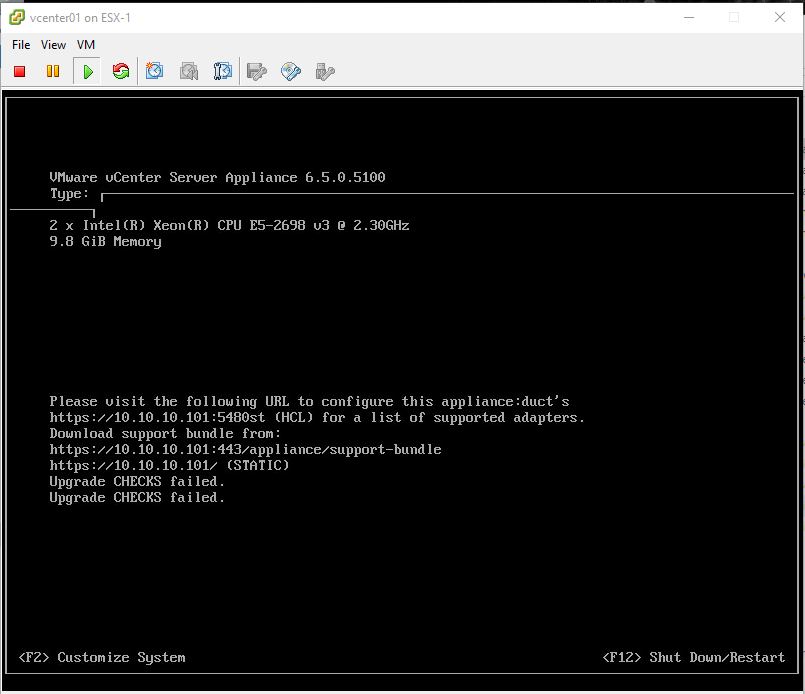

Temporary Appliance booted up and ready. _Just _ Good_To_know


Take Backups/snapshots of old appliances



Ignore DRS warnings.

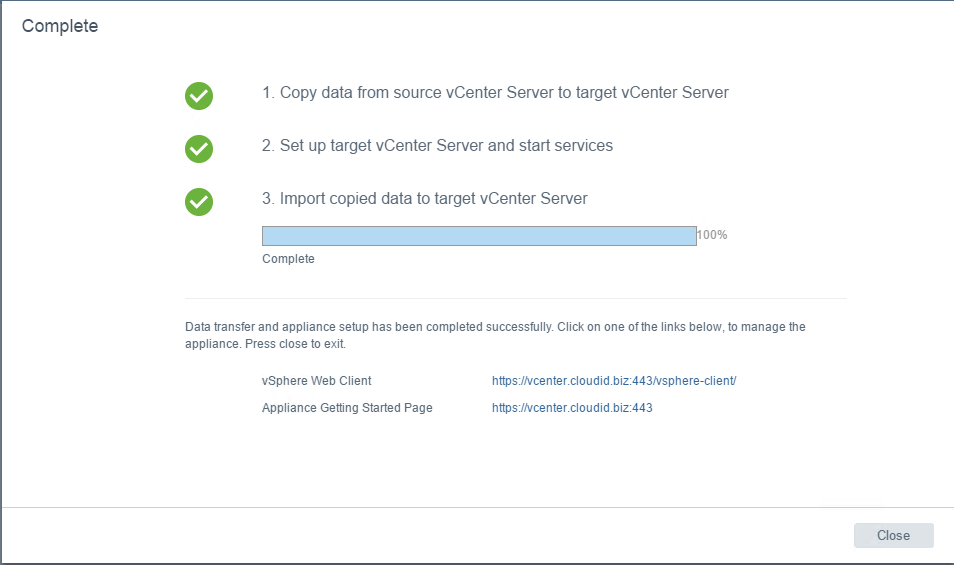

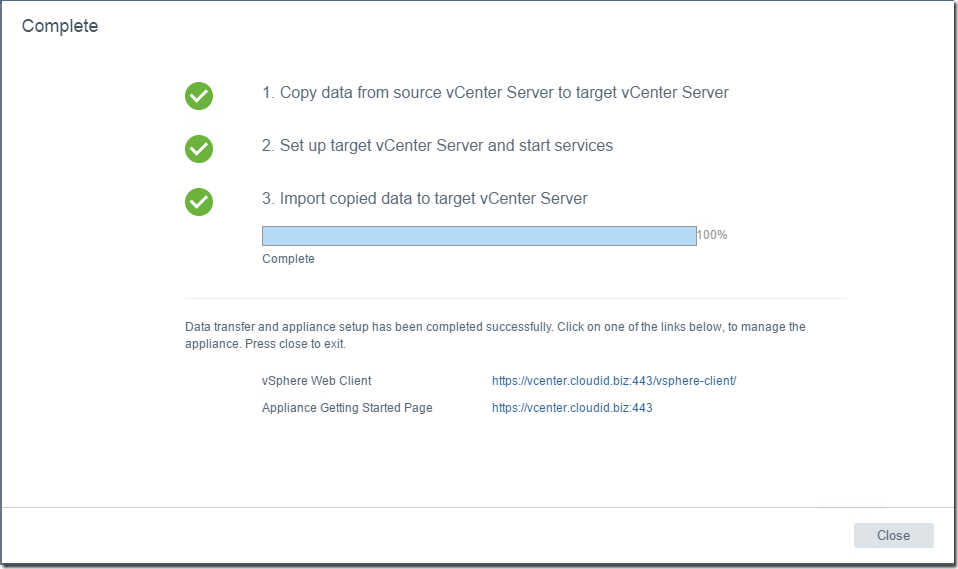

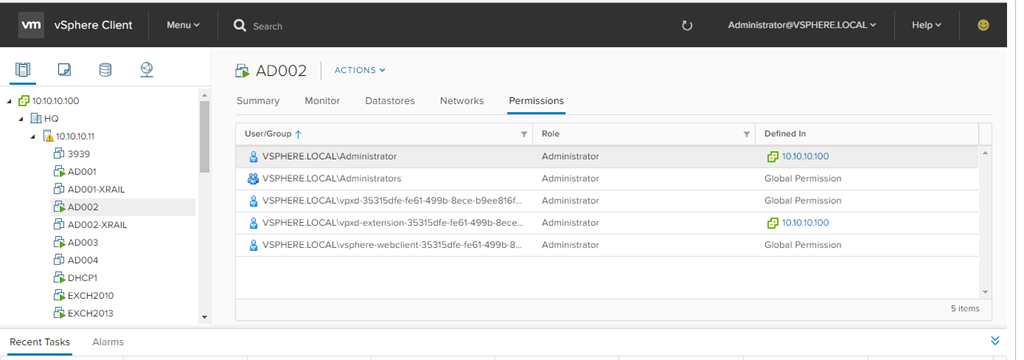

Vcenter 6.5 is up and ready.




Known Issue – 1 –

Issue  –  Using same vcenter creds for source and target

Error –

Encountered an internal error. Traceback (most recent call last): File “/usr/lib/vmidentity/firstboot/vmidentity-firstboot.py”, line 2018, in main vmidentityFB.boot() File “/usr/lib/vmidentity/firstboot/vmidentity-firstboot.py”, line 349, in boot self.configureSTS(self.__stsRetryCount, self.__stsRetryInterval) File “/usr/lib/vmidentity/firstboot/vmidentity-firstboot.py”, line 1479, in configureSTS self.startSTSService() File “/usr/lib/vmidentity/firstboot/vmidentity-firstboot.py”, line 1141, in startSTSService returnCode = self.startService(self.__sts_service_name, self.__stsRetryCount * self.__stsRetryInterval) File “/usr/lib/vmidentity/firstboot/vmidentity-firstboot.py”, line 88, in startService return service_start(svc_name, wait_time) File “/usr/lib/vmware/site-packages/cis/utils.py”, line 784, in service_start raise ServiceStartException(svc_name) ServiceStartException: { “resolution”: null, “detail”: [ { “args”: [ “vmware-stsd” ], “id”: “install.ciscommon.service.failstart”, “localized”: “An error occurred while starting service ‘vmware-stsd'”, “translatable”: “An error occurred while starting service ‘%(0)s'” } ], “componentKey”: null, “problemId”: null }

Solution –

If you use vcenter credentials for Source and Target in the same Cluster.

It will turn of the Source

It will try doing the job on the target using the specified Creds.

Means . Use Esxi Creds for Target creds if its a same cluster.

Known Issue – 2  –

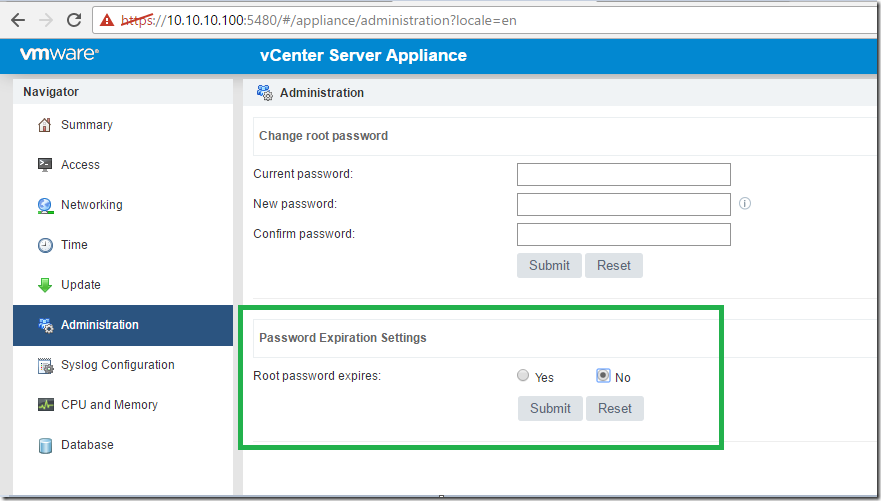

Vcenter Appliance password will Expire.

https://vcenterIP:5480




Note :

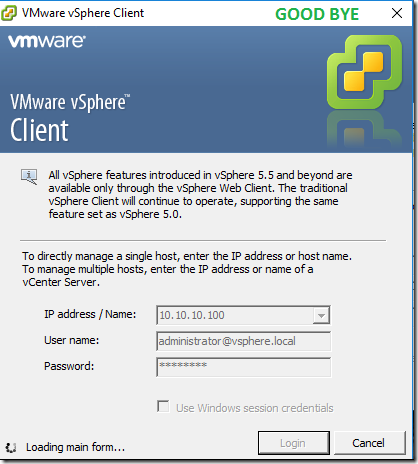

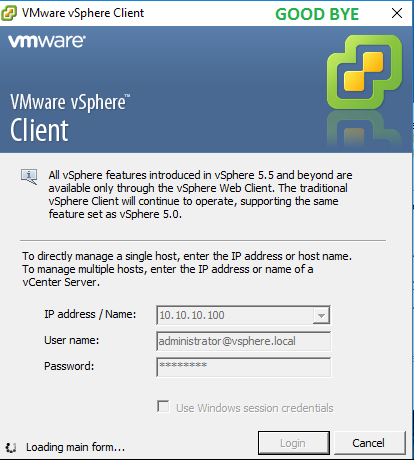

Goodbye vSphere Client for Windows (C#) – Hello HTML5

C# client (Desktop Client/thick client/vSphere Client,vi Client for Windows) will not be available from vcenter 6.5 Onwards


[ :ShowExcp:M: 6] 2016-12-05 09:56:31.231 Error: An internal error occurred in the vSphere Client.
Details: Object reference not set to an instance of an object.

Contact VMware support if necessary.
System.NullReferenceException: Object reference not set to an instance of an object.
at VimSearchUI.Services.Impl.SearchSpecBuilderImpl.GetSimpleProperties(PropertyOwner owner, Type parentType)
at VimSearchUI.Services.Impl.SearchSpecBuilderImpl.BuildTypes()
at VimSearchUI.Services.SearchServiceAdaptor.CreateSearchSpec()
at VimSearchUI.Controllers.Impl.SearchController`1.CreateSearchSpec()
at VpxClient.Home.ChromeView.InitializeChromeView()
at VpxClient.Home.ChromeView.OnFirstVimContext()
at VpxClient.Home.ChromeView.set_VimContext(VimContext value)
at VpxClient.Form1.OnFirstVimContext()
at VpxClient.Form1.set_VimContext(VimContext value)
at VpxClient.UI.OnSuccessfulLogin()
at VpxClient.UI.OnLoginEvent(String message, Object[] args)

Satheshwaran Manoharan
Satheshwaran Manoharanhttps://www.azure365pro.com
Award-winning Technology Leader with a wealth of experience running large teams and diversified industry exposure in cloud computing. From shipping lines to rolling stocks.In-depth expertise in driving cloud adoption strategies and modernizing systems to cloud native. Specialized in Microsoft Cloud, DevOps, and Microsoft 365 Stack and conducted numerous successful projects worldwide. Also, Acting as a Technical Advisor for various start-ups.

Related Articles

1 COMMENT

  1. Hi,
    I was trying to upgrade but got the same error.
    By using on another host i am facing problem because we are using VDS.
    On the same host we can deploy but on stage2 we are facing that error.
    Please help if you have any solutions.
