Migration Endpoint Fails with Connection Exception


Test-MigrationServerAvailability -ExchangeRemoteMove -Credentials $Cred -RemoteServer email.azure365pro.com

RunspaceId : 32ada2be-f815-4072-975c-dcbed5c09054
Result : Failed

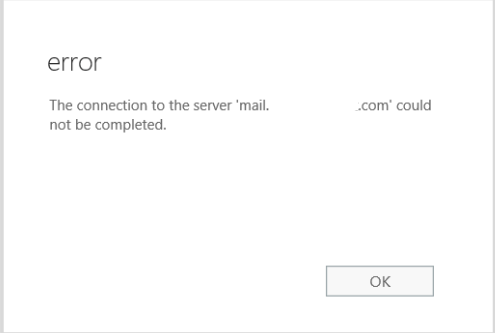

Message : The connection to the server 'email.azure365pro.com' could not be completed.
ConnectionSettings :
SupportsCutover : False
ErrorDetail : Microsoft.Exchange.Migration.MigrationServerConnectionFailedException: The connection to the
server 'email.azure365pro.com' could not be completed. --->
Microsoft.Exchange.MailboxReplicationService.RemotePermanentException: The Mailbox Replication
Service was unable to connect to the remote server using the credentials provided. Please check
the credentials and try again. The call to 'https://email.azure365pro.com/EWS/mrsproxy.svc'
failed. Error details: The HTTP request is unauthorized with client authentication scheme
'Negotiate'. The authentication header received from the server was 'Negotiate,NTLM,Basic
realm="email.azure365pro.com"'. --> The remote server returned an error: (401) Unauthorized.. -->
The HTTP request is unauthorized with client authentication scheme 'Negotiate'. The
authentication header received from the server was 'Negotiate,NTLM,Basic
realm="email.azure365pro.com"'. --> The remote server returned an error: (401) Unauthorized. --->
Microsoft.Exchange.MailboxReplicationService.RemotePermanentException: The call to
'https://email.azure365pro.com/EWS/mrsproxy.svc' failed. Error details: The HTTP request is
unauthorized with client authentication scheme 'Negotiate'. The authentication header received
from the server was 'Negotiate,NTLM,Basic realm="email.azure365pro.com"'. --> The remote server
returned an error: (401) Unauthorized.. --->
Microsoft.Exchange.MailboxReplicationService.RemotePermanentException: The HTTP request is
unauthorized with client authentication scheme 'Negotiate'. The authentication header received
from the server was 'Negotiate,NTLM,Basic realm="email.azure365pro.com"'. --->
Microsoft.Exchange.MailboxReplicationService.RemotePermanentException: The remote server returned
an error: (401) Unauthorized.
--- End of inner exception stack trace ---
--- End of inner exception stack trace ---
--- End of inner exception stack trace ---
at Microsoft.Exchange.MailboxReplicationService.MailboxReplicationServiceFault.<>c__DisplayClas
s97_0.<ReconstructAndThrow>b__0()
at Microsoft.Exchange.MailboxReplicationService.ExecutionContext.Execute(Action operation)
at Microsoft.Exchange.MailboxReplicationService.MailboxReplicationServiceFault.ReconstructAndTh
row(String serverName, VersionInformation serverVersion)
at Microsoft.Exchange.MailboxReplicationService.WcfClientWithFaultHandling`2.<>c__DisplayClass7
_0.<CallService>b__0()
at Microsoft.Exchange.Net.WcfClientBase`1.CallService(Action serviceCall, String context)
at
Microsoft.Exchange.MailboxReplicationService.WcfClientWithFaultHandling`2.CallService(Action
serviceCall, String context)
at Microsoft.Exchange.Migration.MigrationExchangeProxyRpcClient.CanConnectToMrsProxy(Fqdn
serverName, Guid mbxGuid, NetworkCredential credentials, LocalizedException& error)
--- End of inner exception stack trace ---
at Microsoft.Exchange.Migration.DataAccessLayer.ExchangeRemoteMoveEndpoint.VerifyConnectivity()
at Microsoft.Exchange.Management.Migration.MigrationService.Endpoint.TestMigrationServerAvailab
ility.InternalProcessEndpoint(Boolean fromAutoDiscover)
IsValid : True
Identity :
ObjectState : New

Solution –

  • Make sure Outlook Anywhere succeeds with test account.
  • Make sure you enter the credentials with domain\username in all locations while creating endpoint.
  • Make sure internal and External host name is in the certificate (In a strange case user ad multi domain wild card cert were we move internal and external hostname to the primary FQDN of the cert)

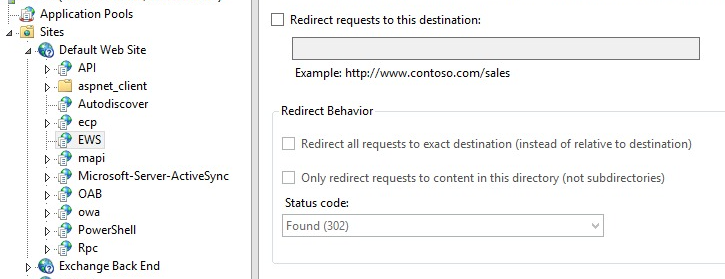

  • Make sure HTTP redirect is not set EWS virtual directories.

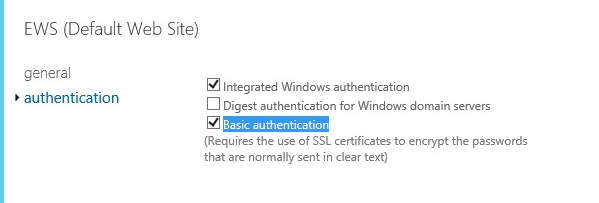

  • Make sure Basic and Windows auth is enabled on EWS virtual directory.
