How to Use a Self Signed Certificate in Exchange 2010

Article Updated : Using a internal windows CA certificate with Exchange 2010



Using a Self Sign Certificate can Manage Owa alone, But Issuing a Internal Windows CA Certificate can serve all type of Clients

So will learn how to do it.

We can use a internal windows CA certificate with Exchange 2010 to avoid Cert Errors

Something which you need to know is , Using a Internal Windows CA Certificate you need to install the certificates on every machine you use and Mobile devices other wise you will end up in a certificate error in the IE

So that’s why people prefer going for a 3rd party certificate to overcome it.

In this article We Will Learn issuing a Internal Windows CA Certificate , for this to be used Externally you need to have a CNAME record in your public DNS pointing to your Public IP NAT to your CAS

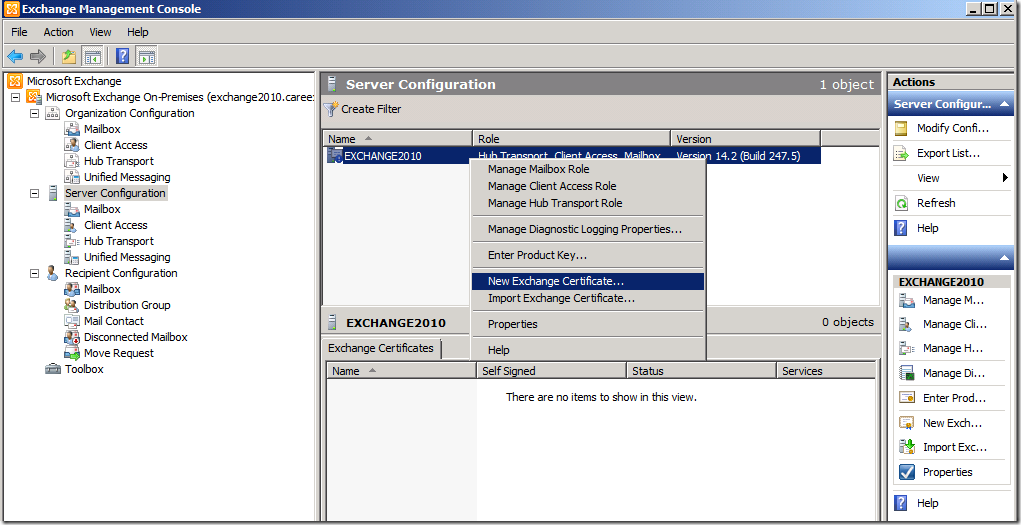

First we will learn how to Export a Certificate request file from Exchange 2010 ,

Step 1:

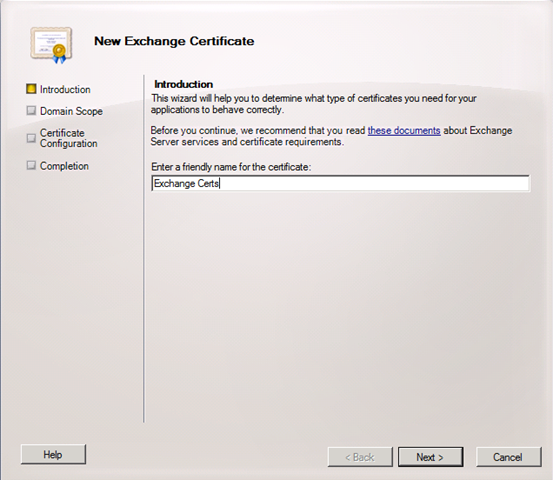

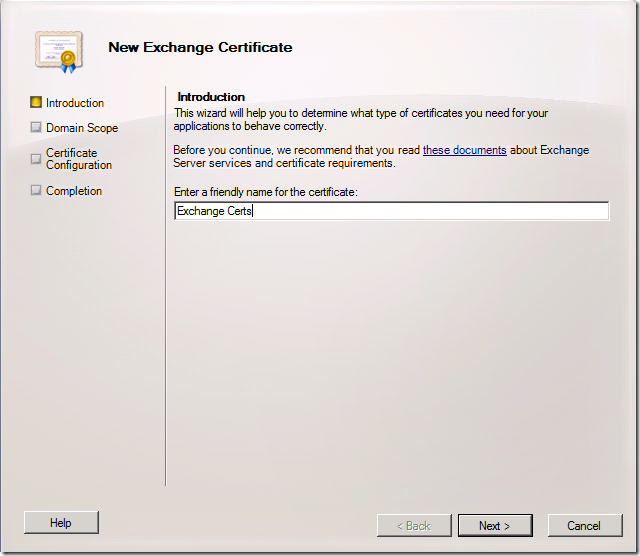

Type a Friendly Name :

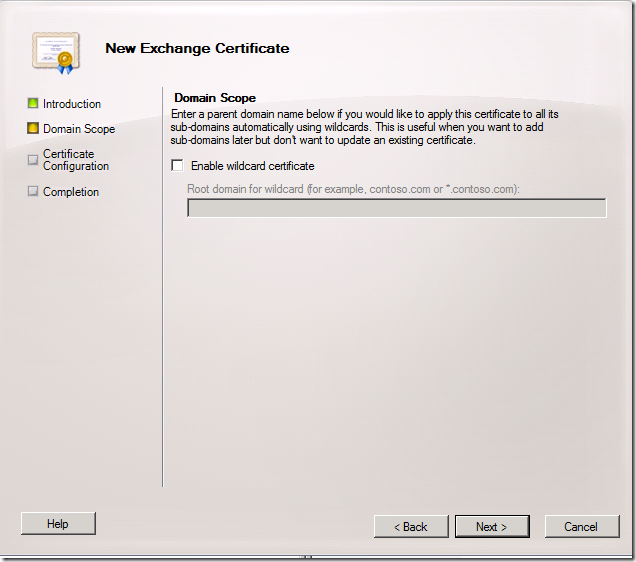

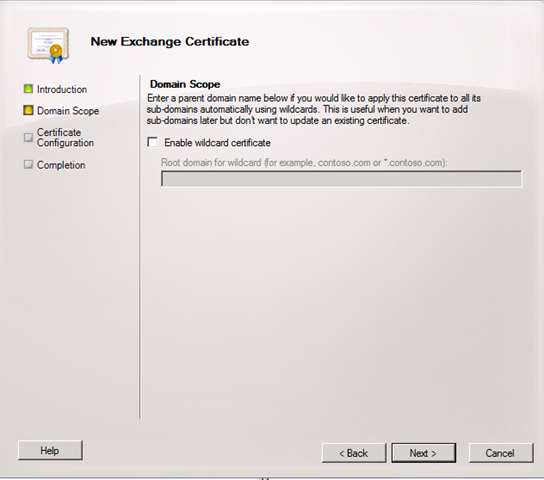

Wild Card is used if you are going to manage more URLs .For Example : *.Domain.com


Step 2:

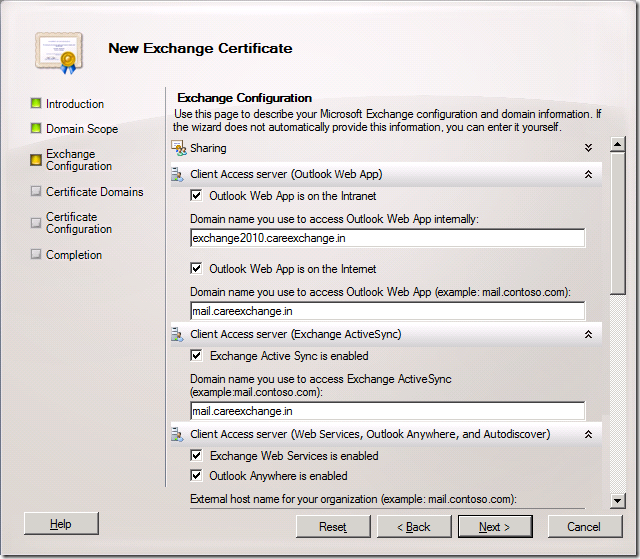

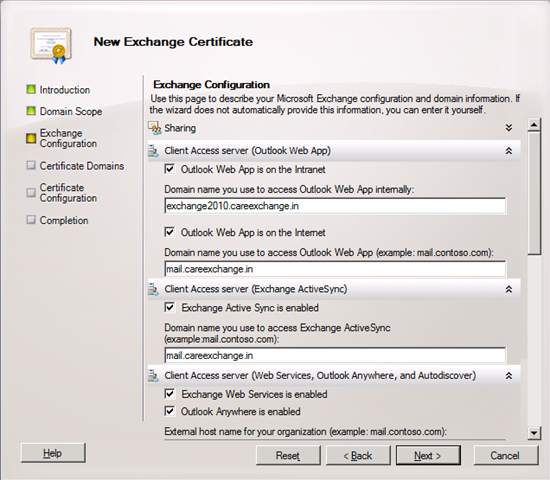

Assign the required Services for your Exchange , Give a Tick Mark

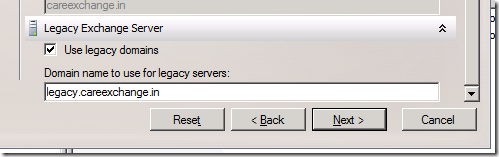

You will opt for it if you are planning for Coexistence in OWA in Exchange 2003 and Exchange 2010


Step 3:

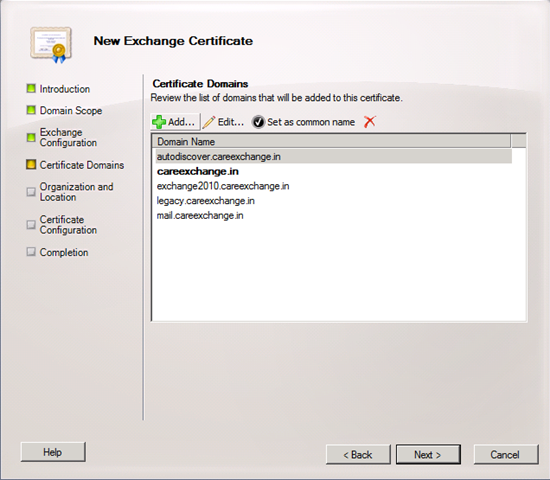

You will see the collection for URL’s

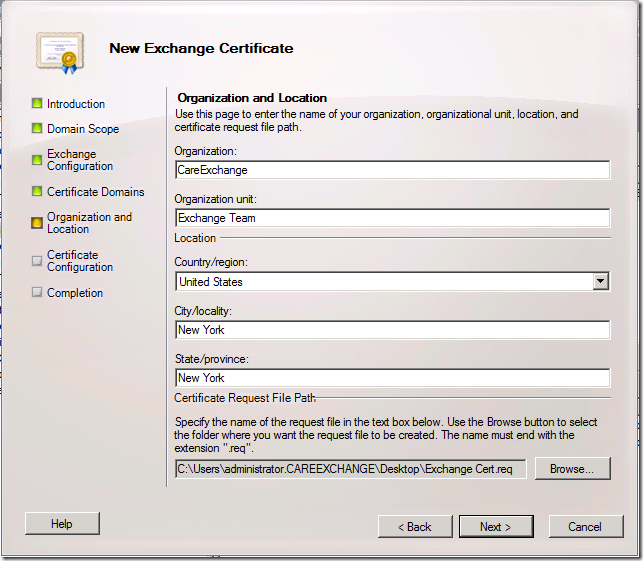

Step 4:

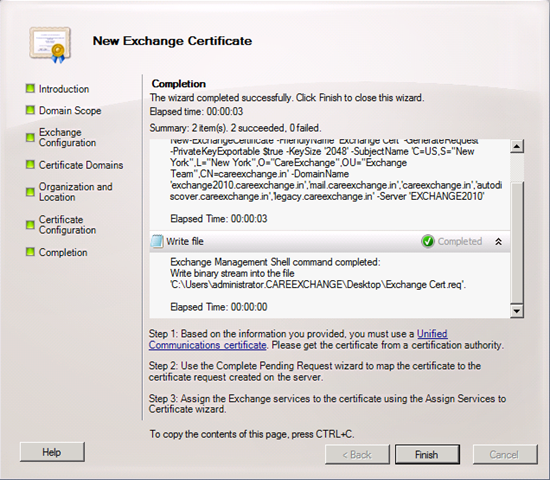

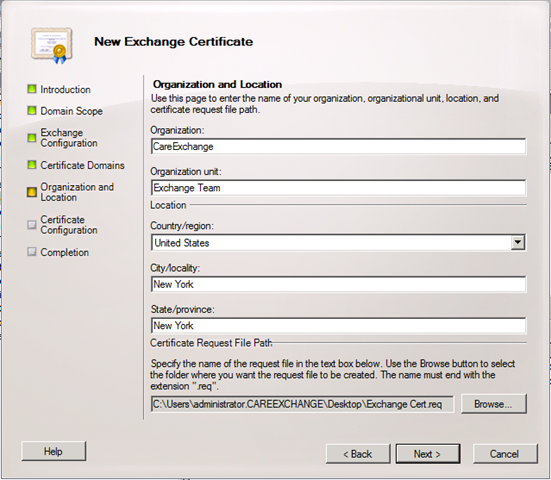

Fill out the Form – And set the location for the Cert Request file





Step 5:

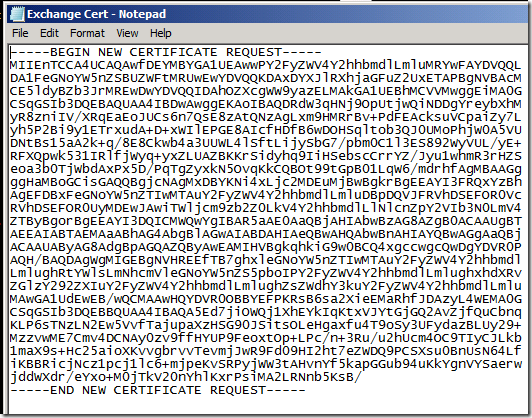

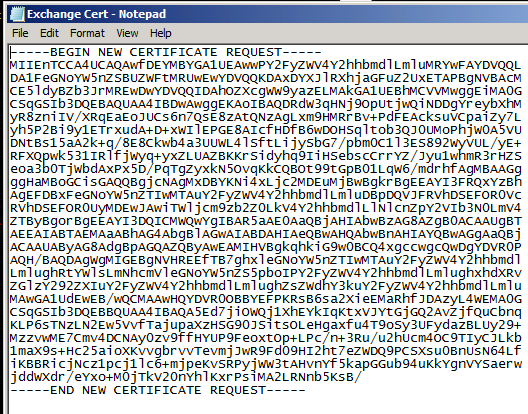

Your request file would look like this




Open it via Notepad , because we need this content to generate a Certificate


Step 6:

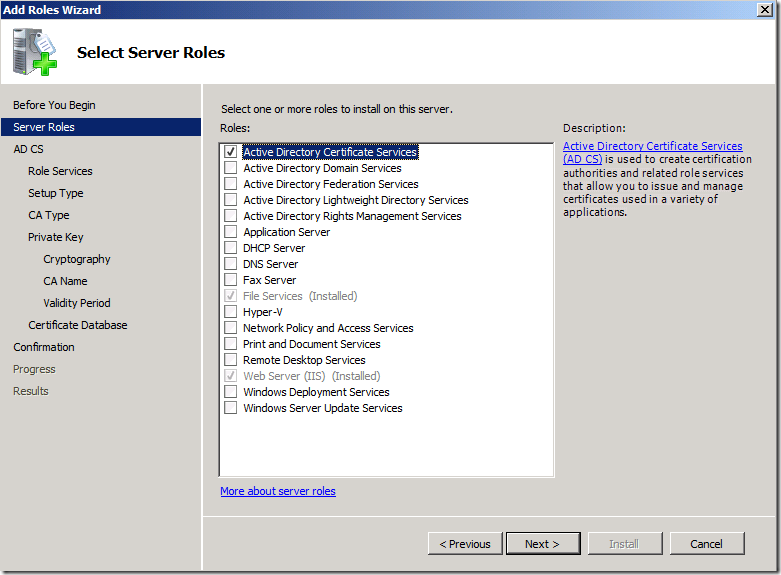

You need to have this role installed to have a  Certificate Authority , It can be DC or Exchange it self

I have done this in the Exchange itself (No Harm)




Step 7:

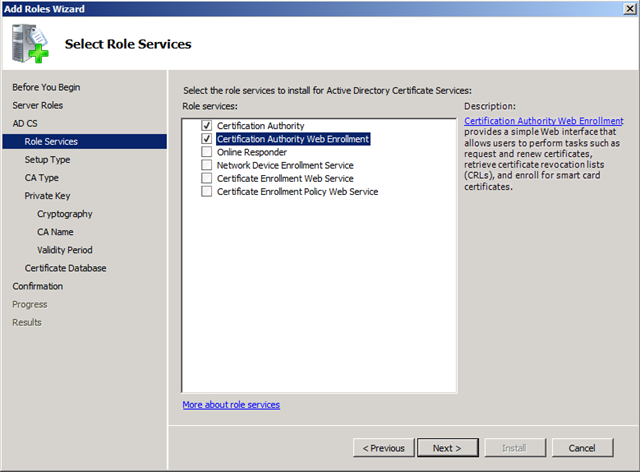

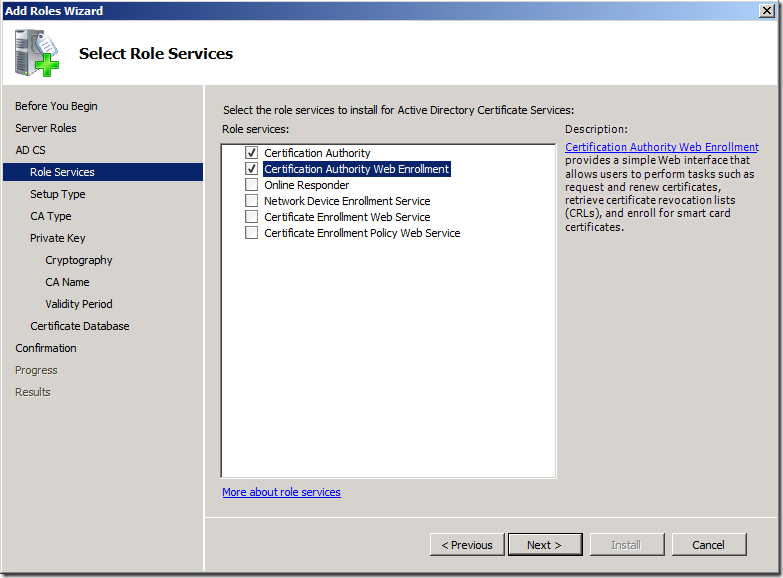

Choose : Certification authority , Certification Authority Web Enrollment


Step 8:

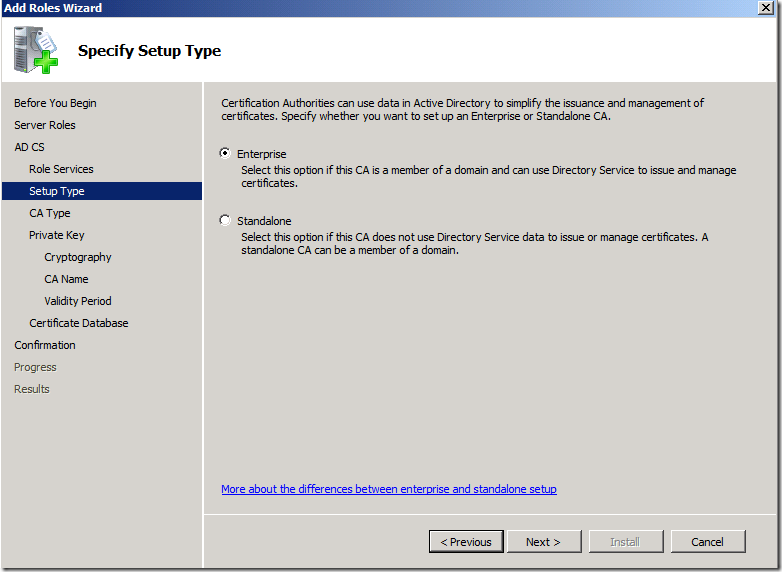

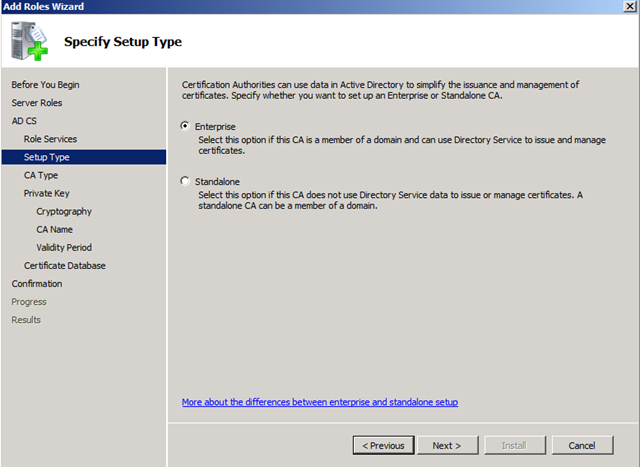

Choose Enterprise

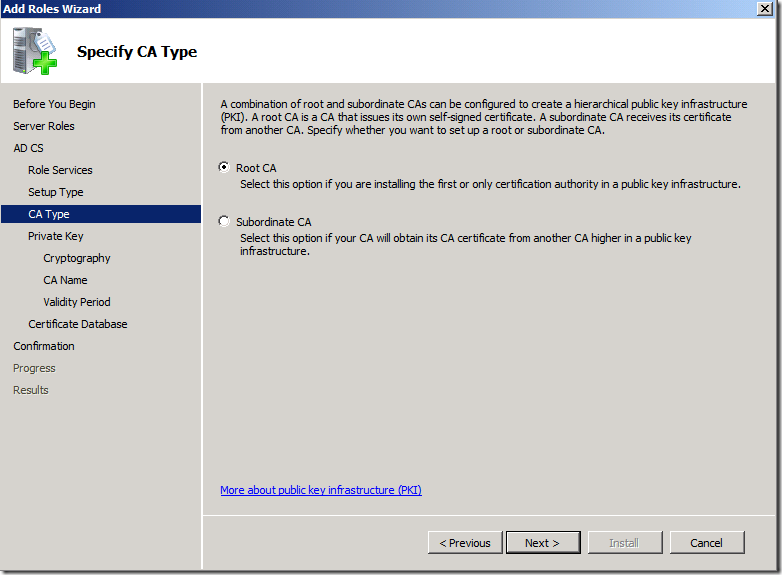

Step 9:

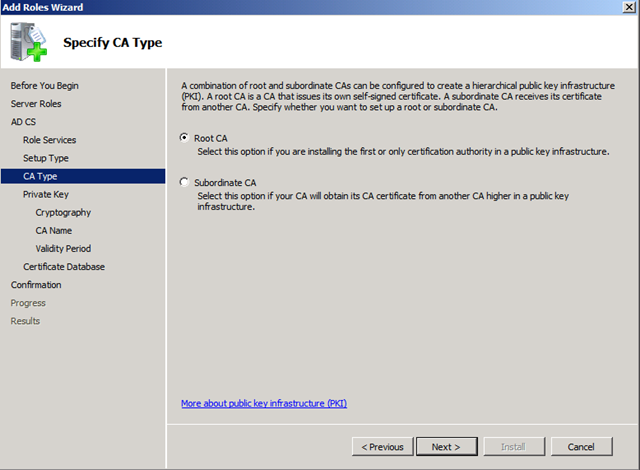

Choose Root CA






Step 10:

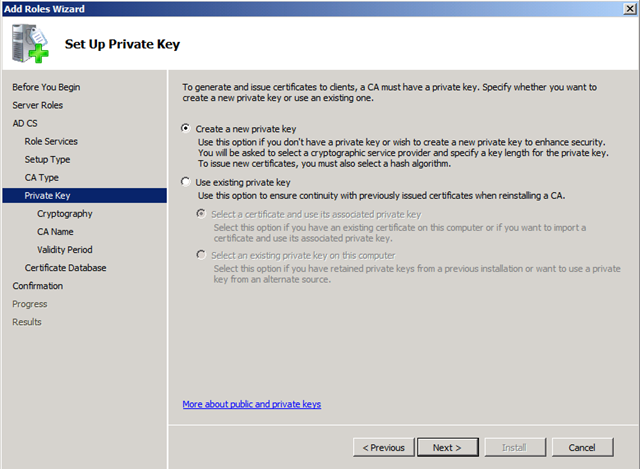

Create a new Private key




Step 11:

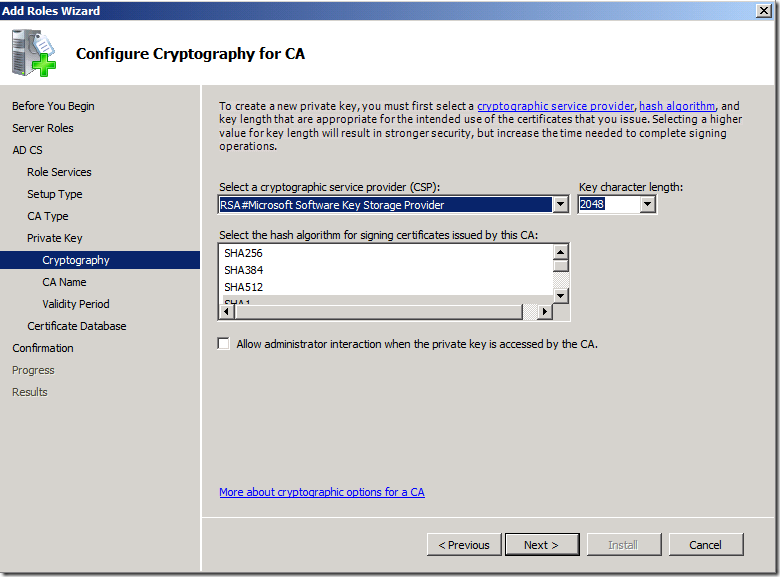

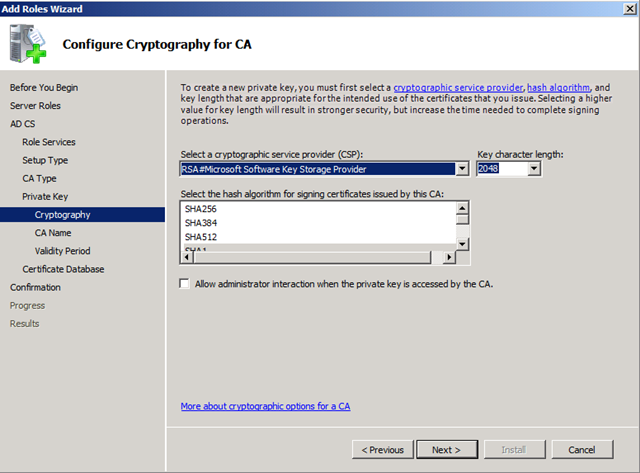

Have this Default with 2048 key Character length


Step 12:

Click Next




Step 13:

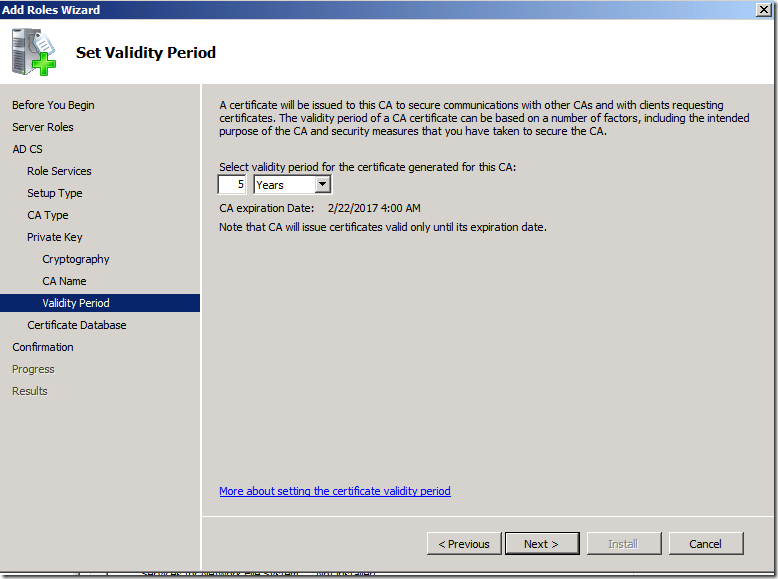

By Default Certificate is valid for 5 years , Don’t make any changes on it , Click next




Step 14:

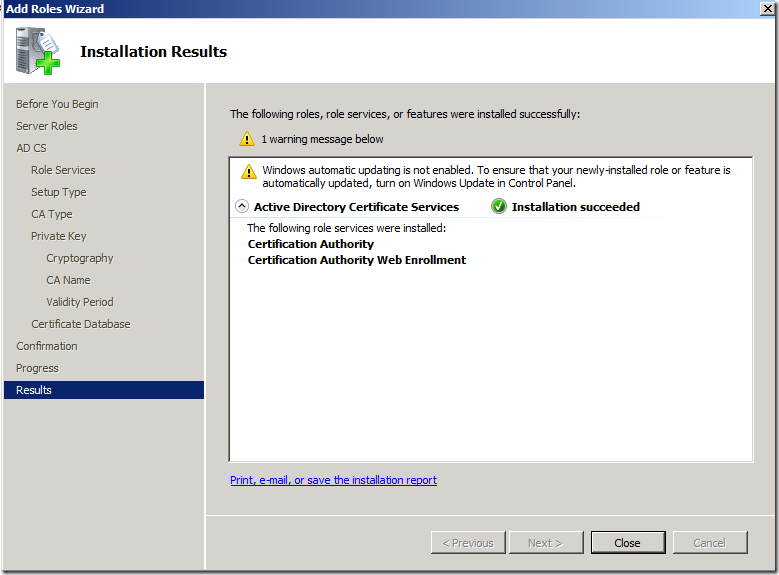

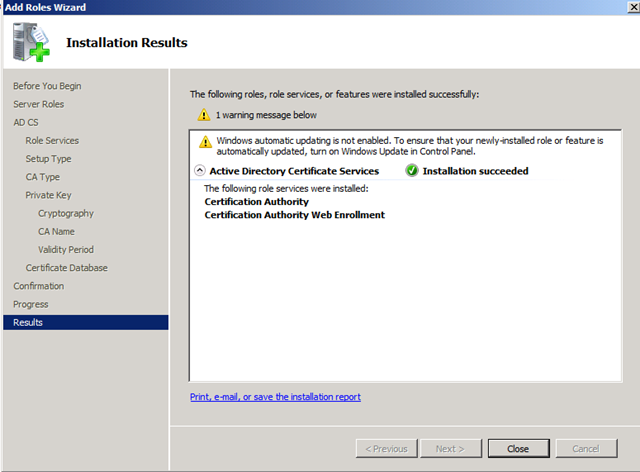

Step 15:

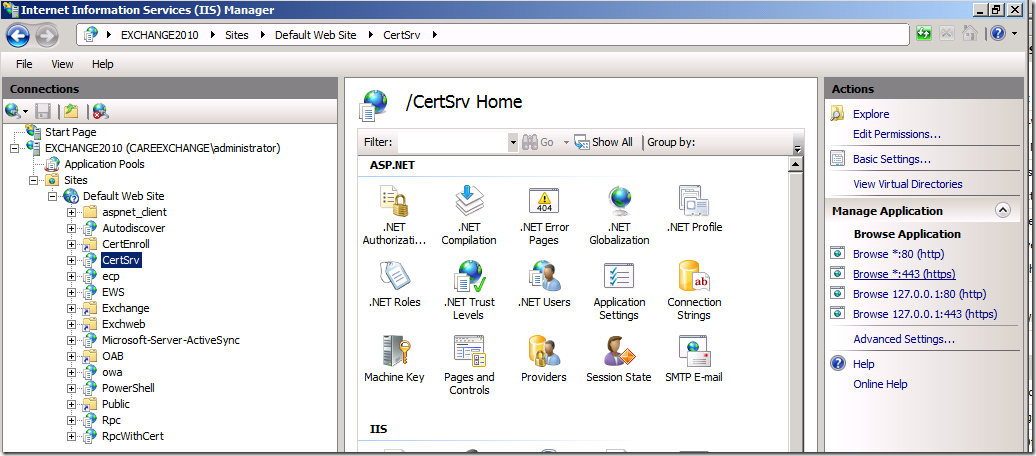

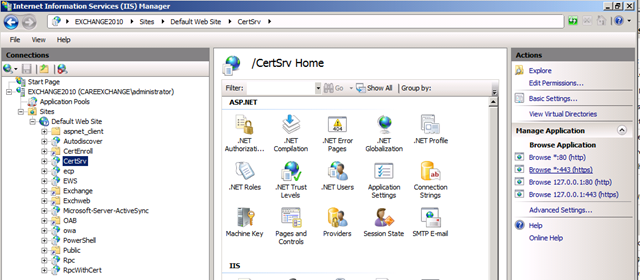

Now if you Open IIS manager , you will see “CertSrv”  a Virtual Directory Created ,

Use the right side column “Browse *.443(https)




Step 16:

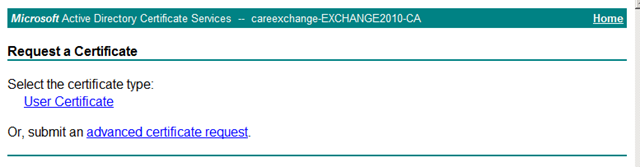

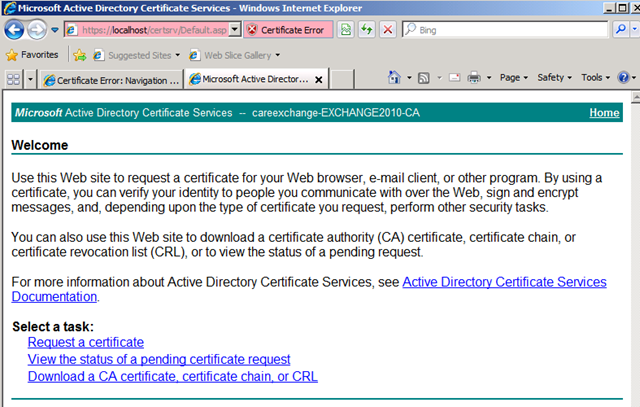

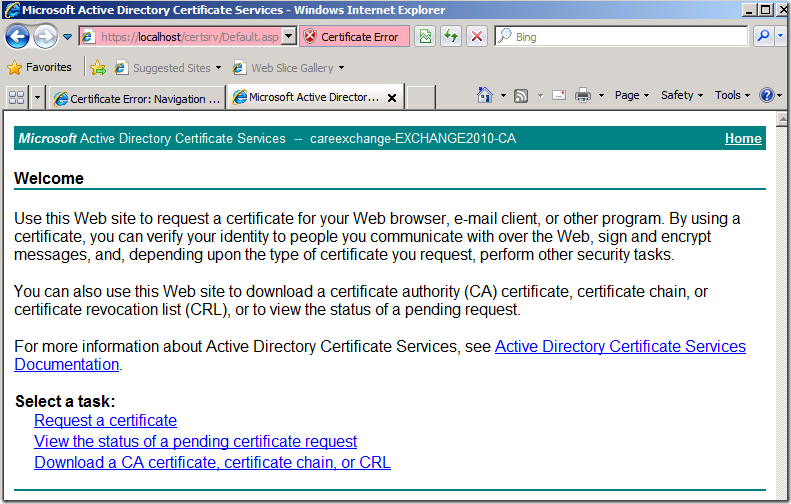

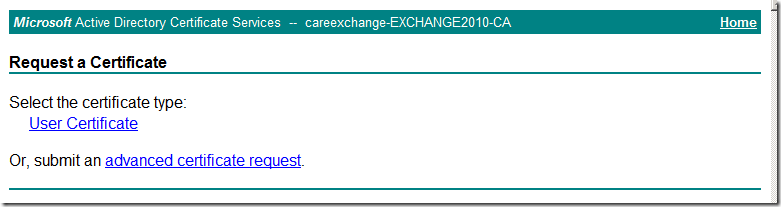

You would see a page like this , Choose Request a Certificate


Step 17:

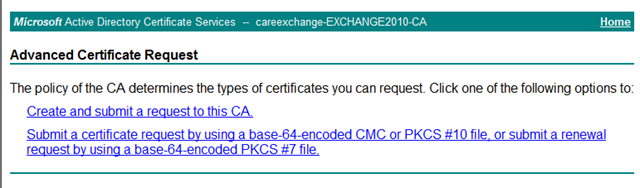

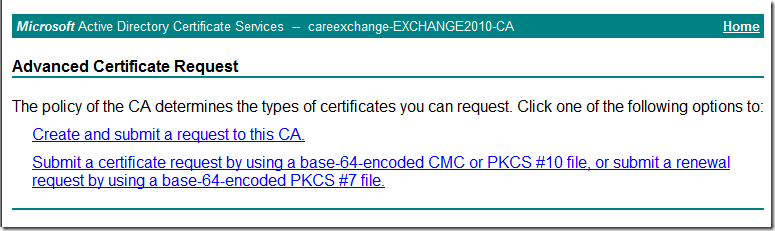

Click on Advanced Certificate Request




Step 18:

Choose the Second one

Submit a certificate request by using a base-64-Encoded CMC


Step 19:

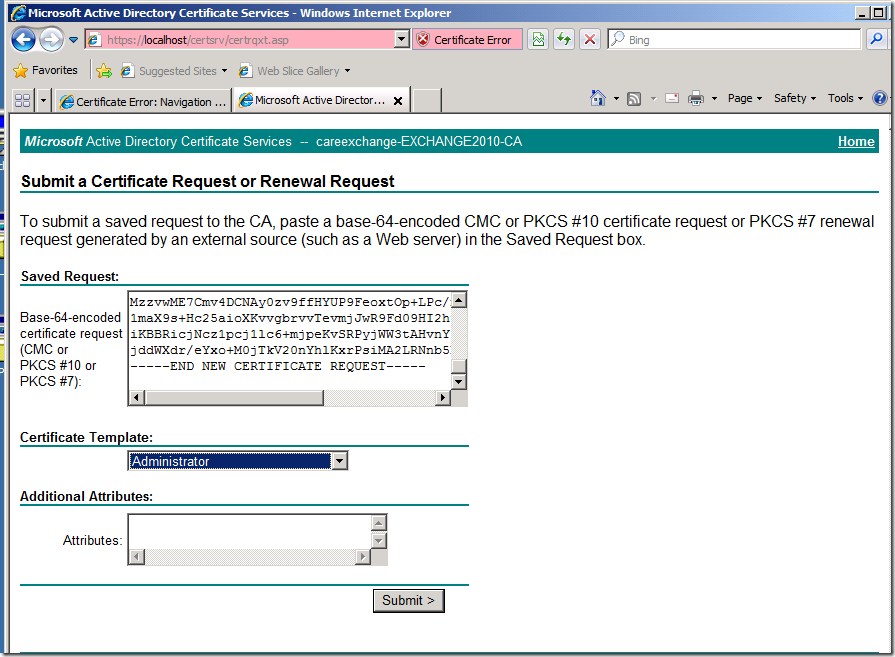

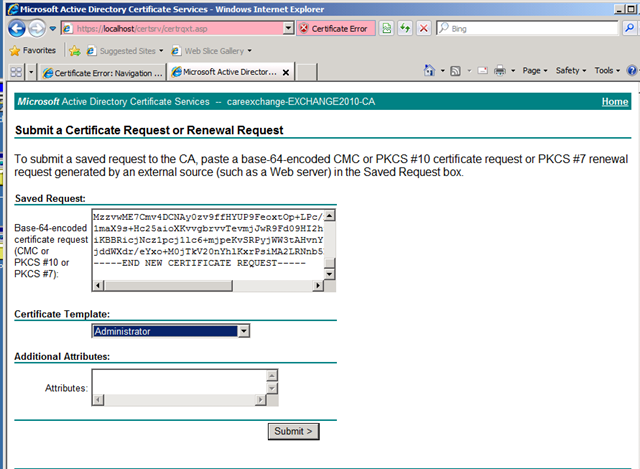

Now Copy the  Note pad  –

Choose Template : WebServer

NOTE _ BELOW SCREEN SHOT _ CHOOSE TEMPLATE _ WEB SERVER


Step 20:

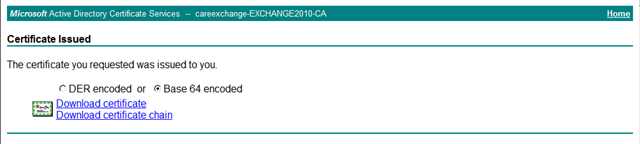

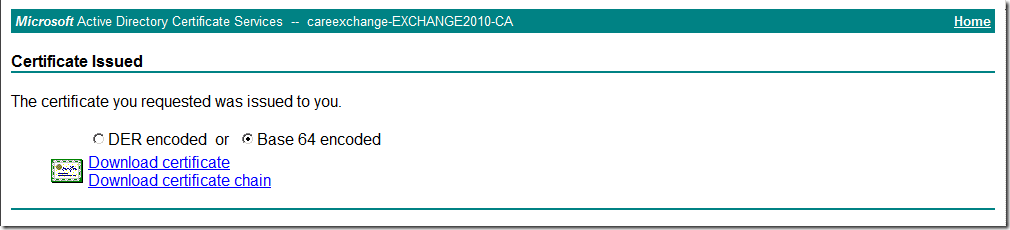

Choose “Base 64 encoded”


Step 21:

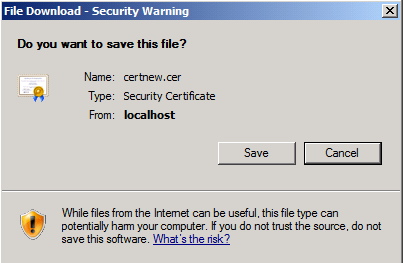

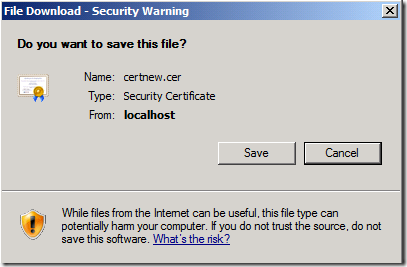

Save the Certificate

image image

Step 22:

Now go to your EMC

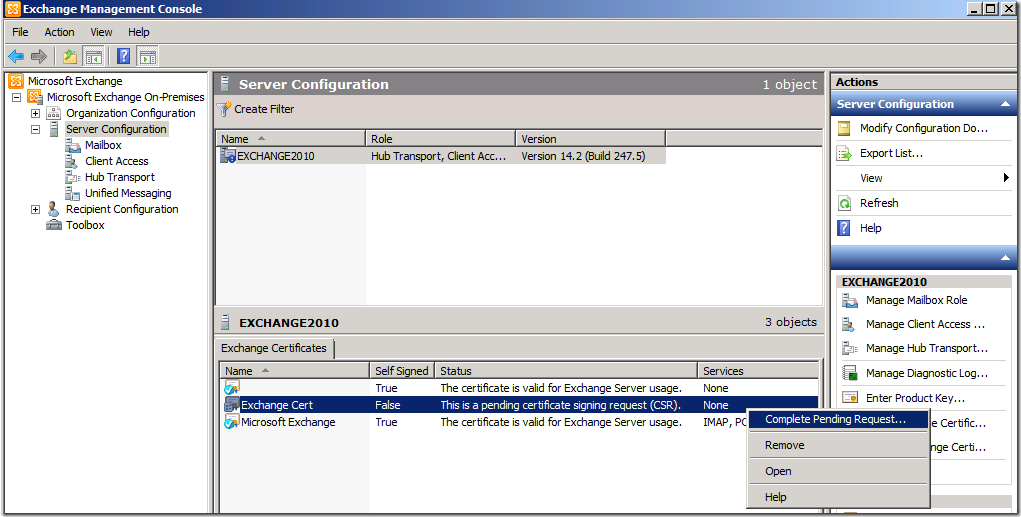

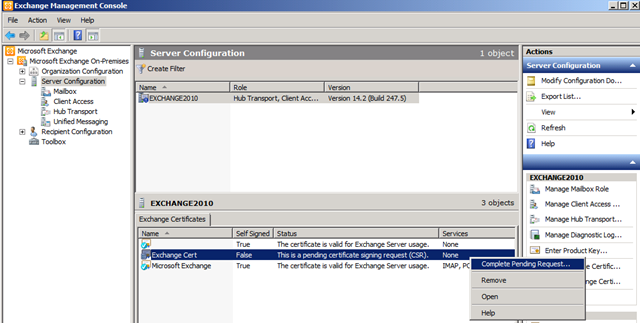

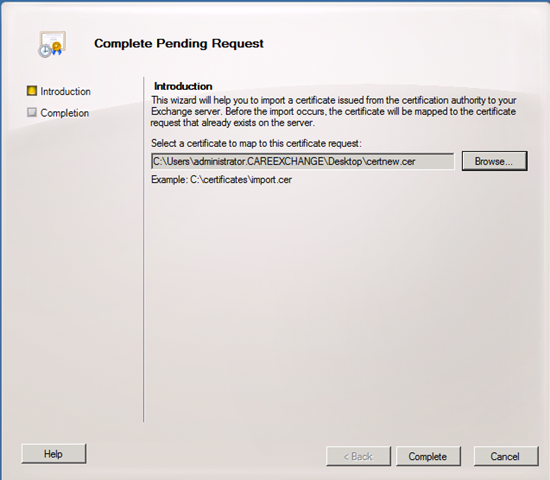

Server Configuration – Complete Pending request

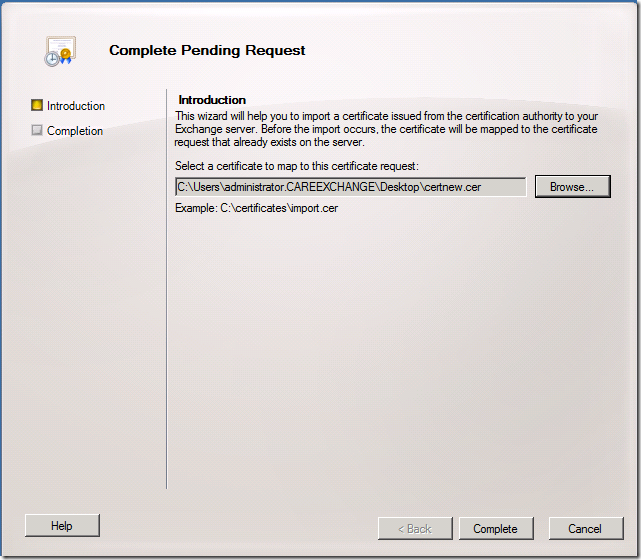

Choose the Certificate :

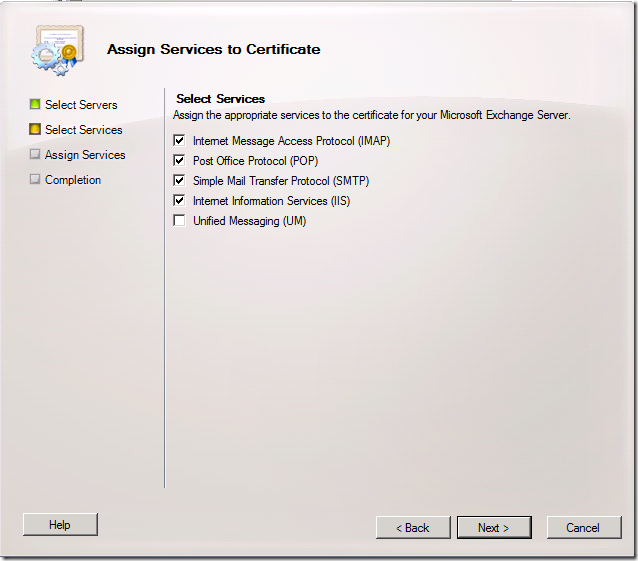

Step 23:

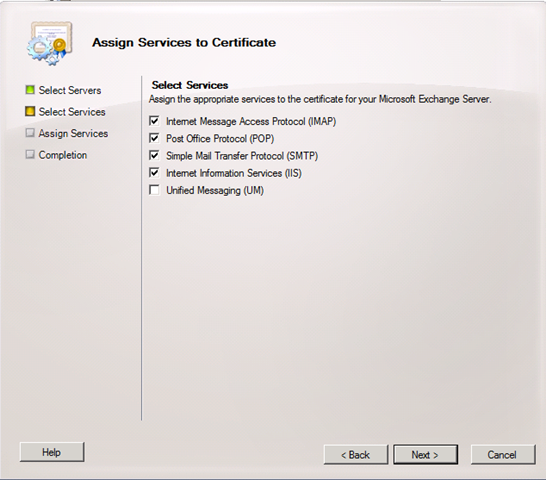

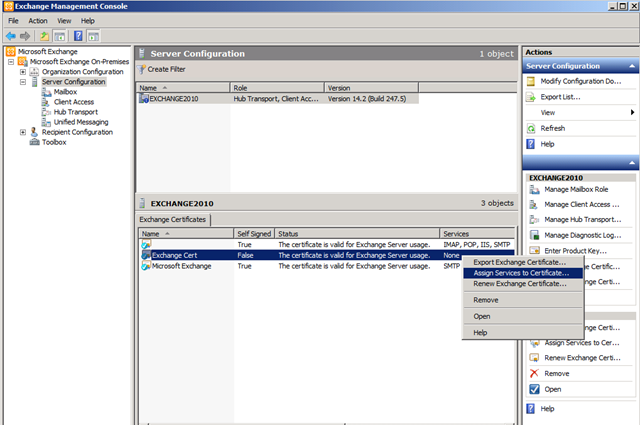

Now Assign Services to the Certificate







Now the Server Part is ready



Step 24:



Now will learn how to install the Certificate in the Client End

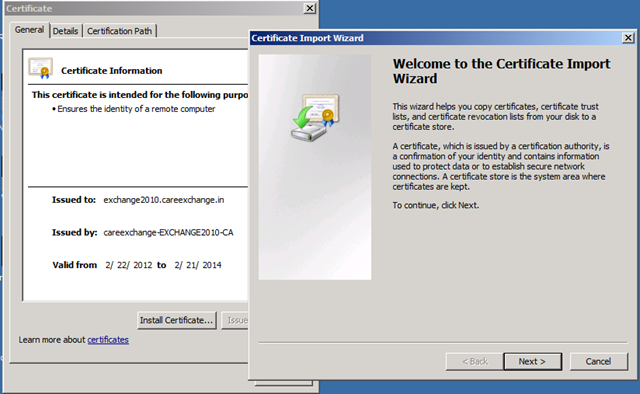

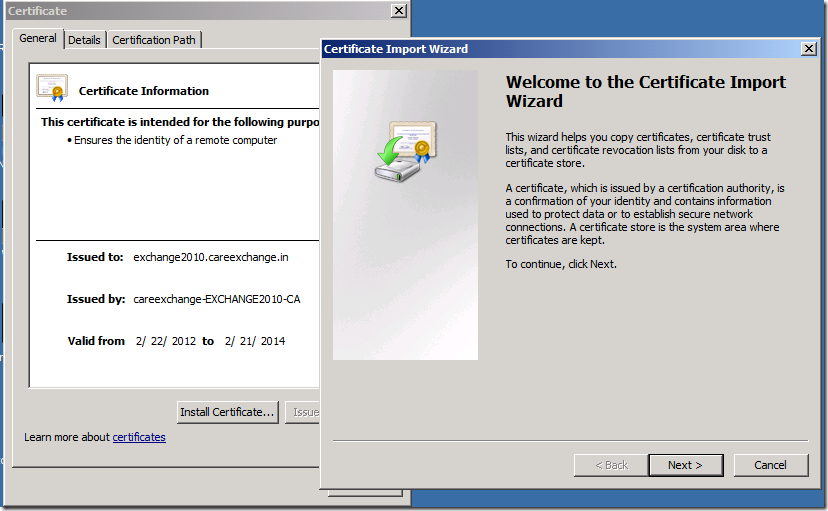

Double Click on the Certificate

Click Install Certificate – Click Next –

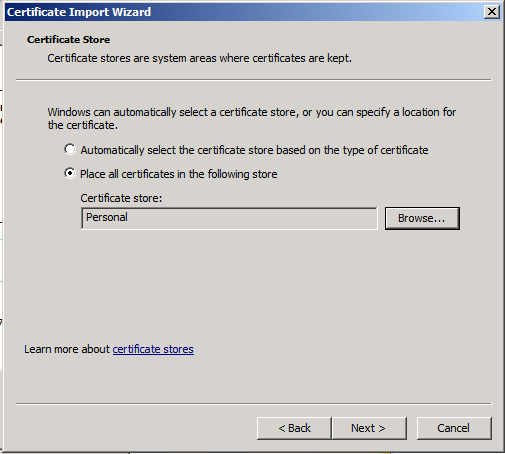

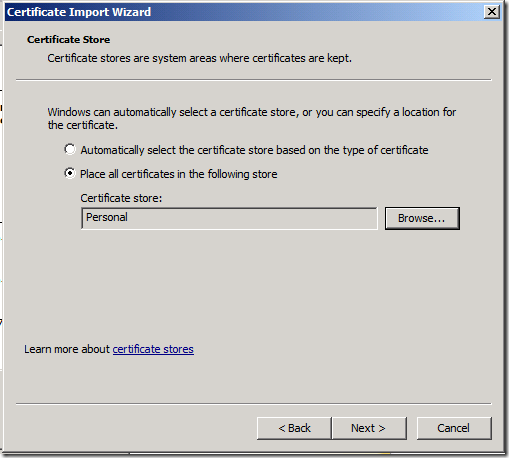

Choose Personal –






Click Next And Import will be Successful

Now Do the Same Process

Double Click on the Certificate

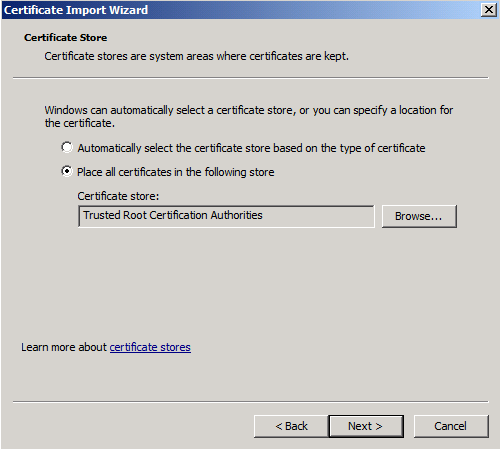

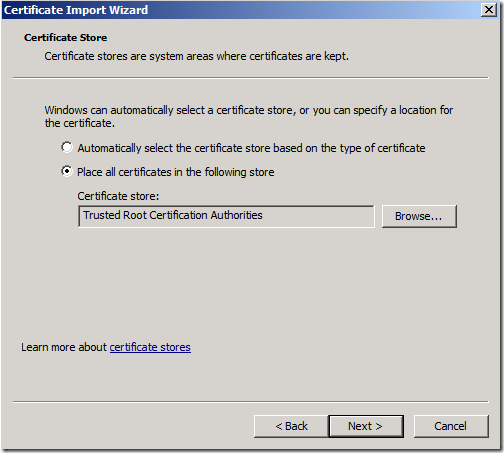

Click Install Certificate – Click Next – Choose Trusted Root Certification Authorities


Double Click on the Certificate

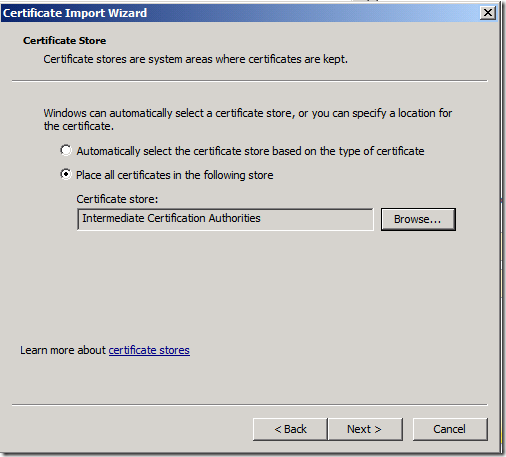

Click Install Certificate – Click Next – Choose Intermediate Certification Authorities




Step 25:

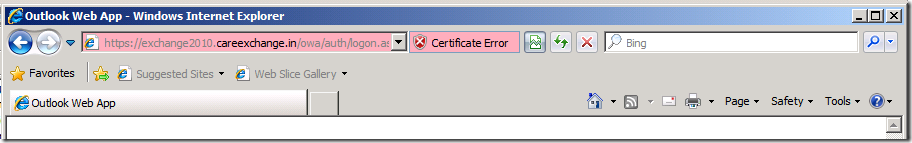

Before

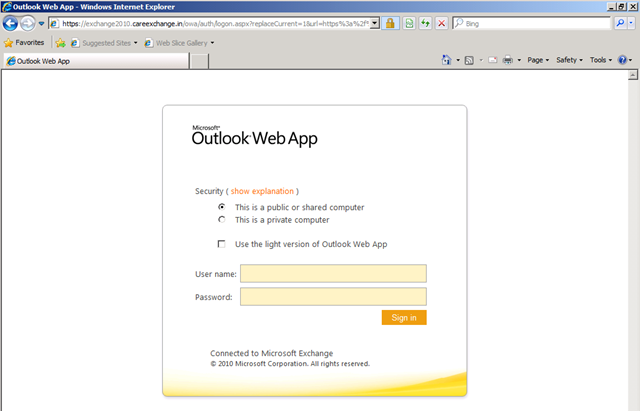

After installing the Certificate in the Client








Great !!

Now you learnt how to Use a internal windows CA certificate with Exchange 2010





Regards

Satheshwaran Manoharan

Satheshwaran Manoharan
Satheshwaran Manoharanhttps://www.azure365pro.com
Award-winning Technology Leader with a wealth of experience running large teams and diversified industry exposure in cloud computing. From shipping lines to rolling stocks.In-depth expertise in driving cloud adoption strategies and modernizing systems to cloud native. Specialized in Microsoft Cloud, DevOps, and Microsoft 365 Stack and conducted numerous successful projects worldwide. Also, Acting as a Technical Advisor for various start-ups.
