How to use a internal Windows CA (Certificate Authority) in Windows 2012 with Exchange 2013

Using a internal windows CA certificate with Exchange 2010

Using a Self Sign Certificate can Manage Owa alone, But Issuing a Internal Windows CA Certificate can serve all type of Clients
So will learn how to do it on Windows Server 2012.

We can use a internal windows CA certificate with Exchange 2013 to avoid Cert Errors
Something which you need to know is , Using a Internal Windows CA Certificate you need to install the certificates on every machine you use and Mobile devices other wise you will end up in a certificate error.
So that’s why people prefer going for a 3rd party certificate to overcome it.
In this article We Will Learn issuing a Internal Windows CA Certificate ,

You need to have two A records , Mail.domain.com and Autodisover.domain.com

and you will place the cert which we generate into the machines your configuring outlook. or any device, So that you can over come outlook errors

First we will learn how to Export a Certificate request file from Exchange 2013,

Step 1:

Login to Exchange Administration Center (EAC) in Exchange 2013

Servers – Certificates – Click on the “+” Sign – New


Choose

“Create a request for a Certificate from the Certification authority”

Next


Type a Friendly Name :


Wild Card is used if you are going to manage more URLs .For Example : *.Domain.com


Choose the Server to have the Cert Request


Step 2:

Enter the Required URL’s for your Exchange ,


For Example Am entering only for Outlook Web App (When accessed from the internet)


Step 3:

You will see the collection for URL’s


Step 4:

Fill out the Form


Create a Simple Share to Save the Cert Request


Save the Cert Request to a Shared Location as below

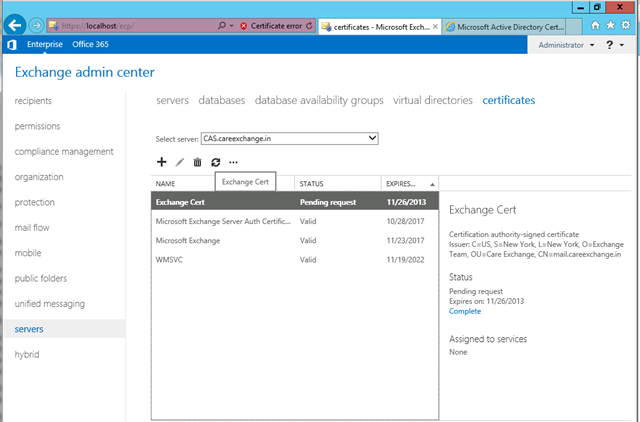

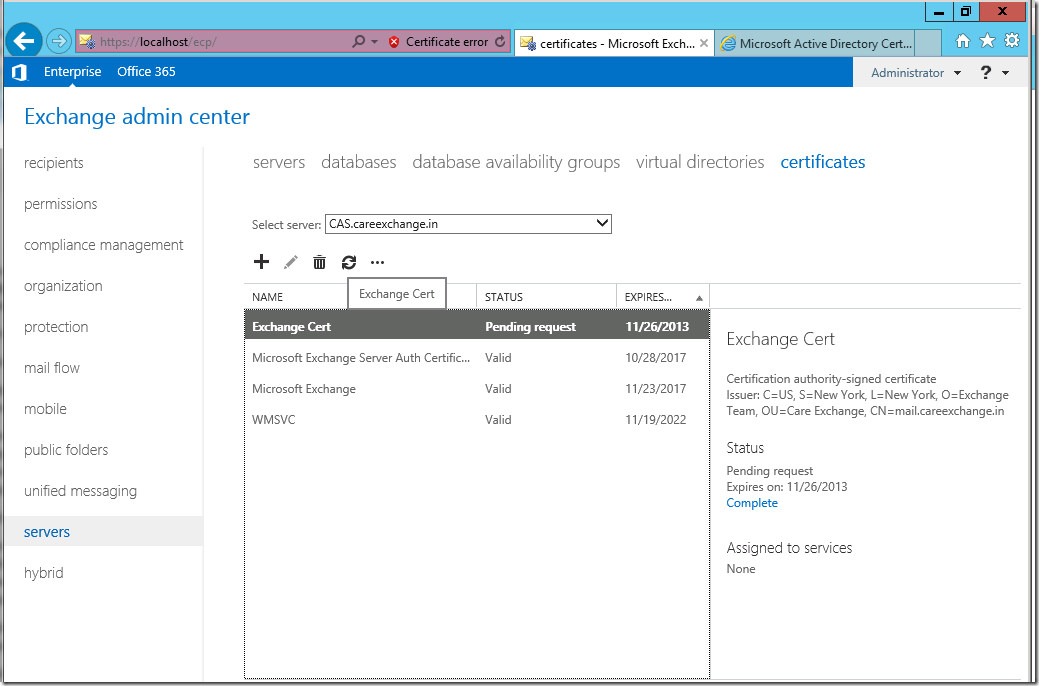

Now you could see the Pending Cert Request


Step 5:
Your request file would look like this


ExchangeCert.req is the request file you created. Now right click on the file , Open with , Use notepad

Opening it via Notepad , It would give a set of Request content, You will use this content in the later part


Step 6:
You need to have this role installed to have a  Certificate Authority , It can be DC or Exchange it self
I have done this in the Exchange itself (No Harm)

Open Server Manager – Manage – Add Roles and Features


Step 7:

Choose : Active Directory Certificate Services

Choose Next

And Choose : Certification Authority Web Enrollment


Choose : Certification Authority Web Enrollment


Choose Install


Choose Close


Step 8:

To Configure Active Directory Certificate Services

Choose the Exclamation Mark on the Flag


Choose Next


Choose

Certificate Authority

&

Certification Authority Web Enrollment

Choose Enterprise


Step 9:
Choose Root CA


Step 10:
Create a new Private key


Step 11:
Have this Default with 2048 key Character length


Step 12:
Click Next


Step 13:
By Default Certificate is valid for 5 years , Don’t make any changes on it , Click next


Step 14:




Step 15:
Now if you Open IIS manager , you will see “CertSrv”  a Virtual Directory Created ,

Use the right side column “Browse *.443(https)

Step 16:
You would see a page like this , Choose Request a Certificate


Step 17:
Click on Advanced Certificate Request


Step 18:
Choose the Second one
Submit a certificate request by using a base-64-Encoded CMC


Step 19:
Now Copied the content from the  Note pad  – (See Step5)
Choose Template : WebServer


Step 20:
Choose “Base 64 encoded”


Step 21:
Save the Certificate

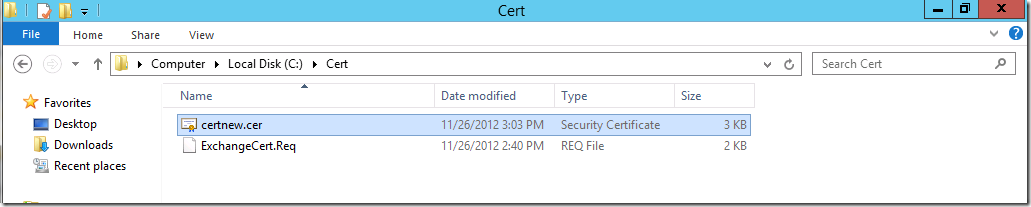

Copied the File to a  Common Share


Step 22:

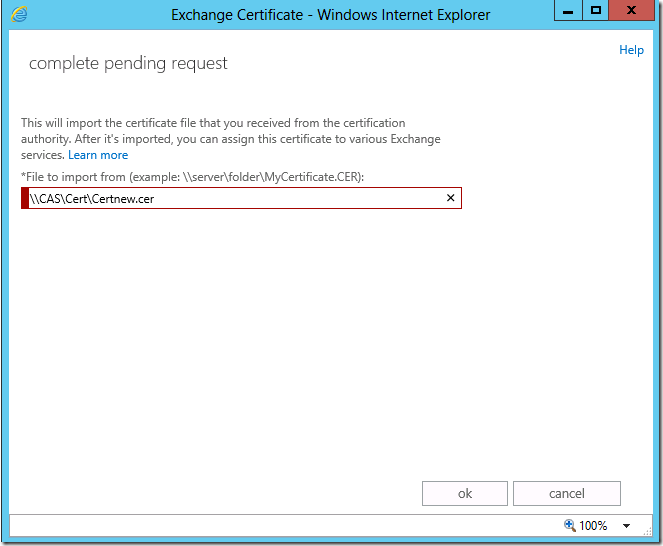

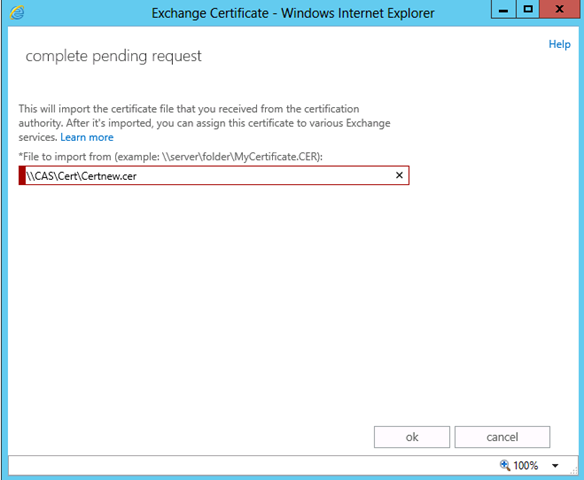

Now go to your EAC – Servers – Certificates- Choose the Pending Request – Choose Complete



Step 23:

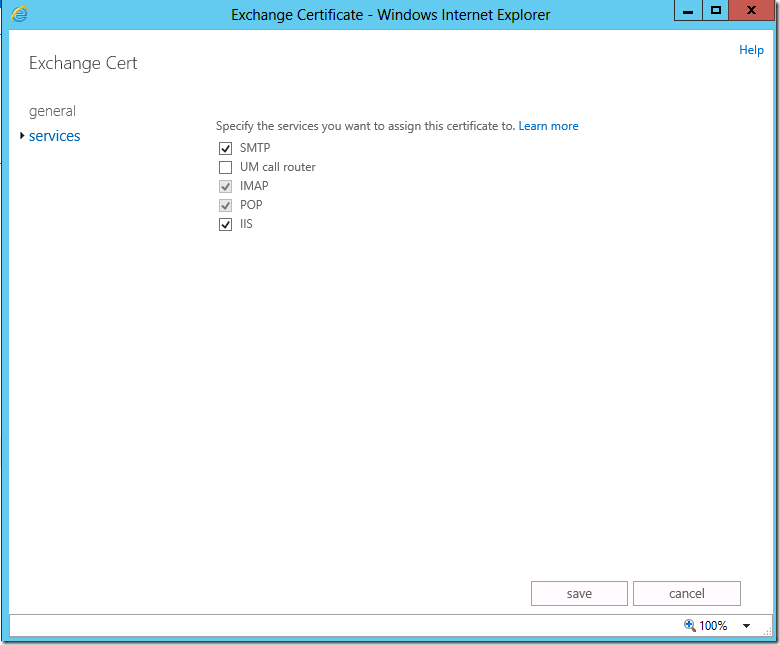

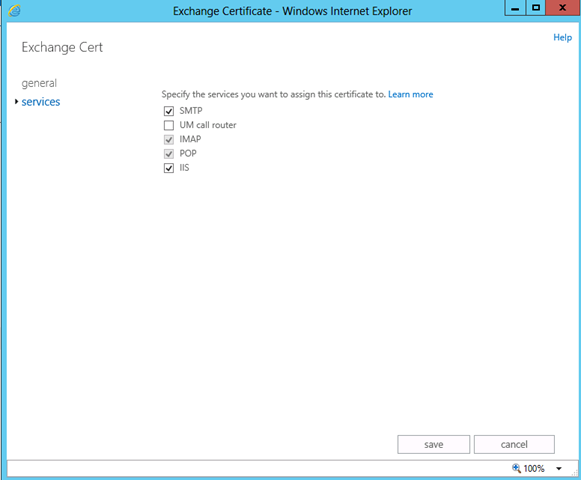

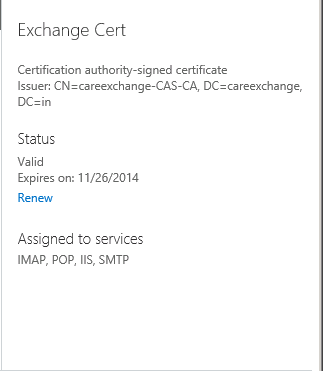

Now Assign Services to the Certificate

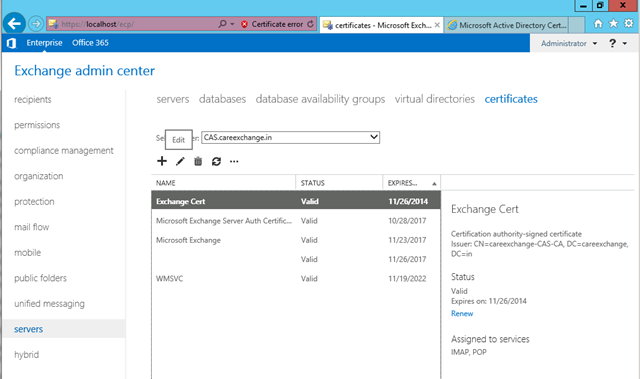

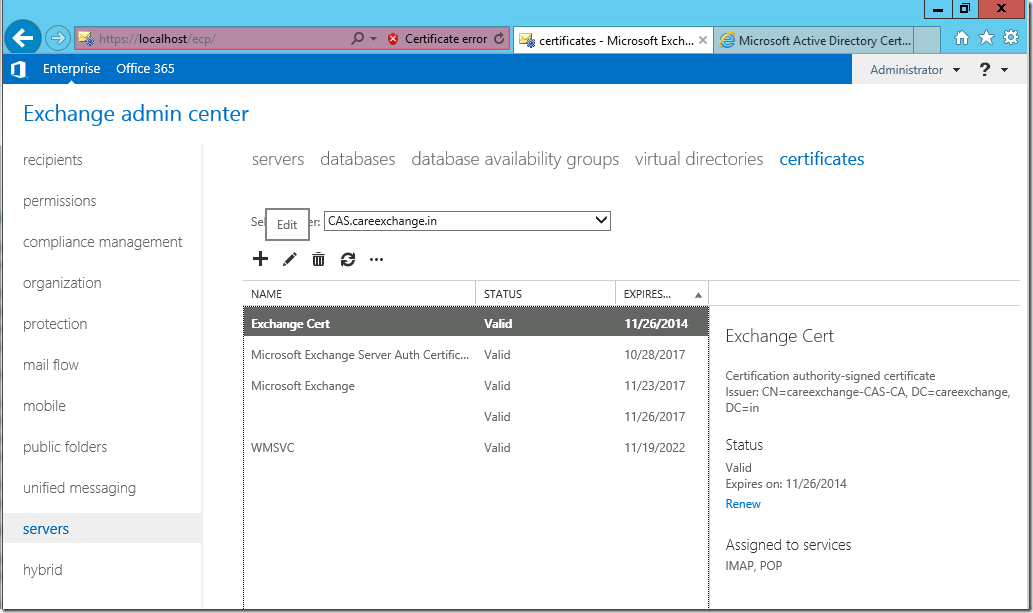

Choose Cert and Click on Edit



Now the Server Part is ready

Step 24:

Now will learn how to install the Certificate in the Client End

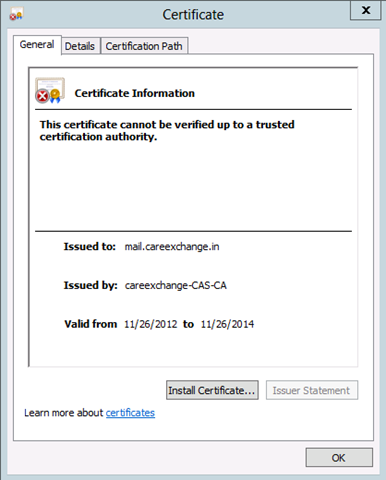

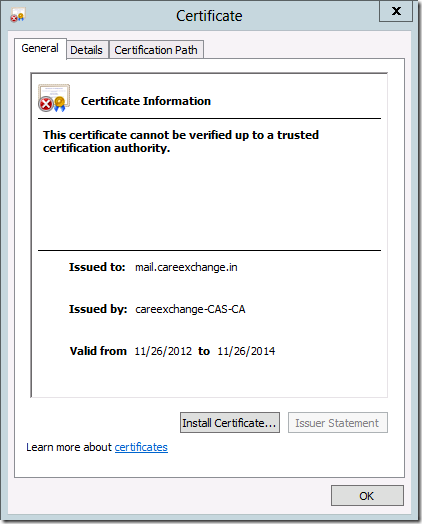

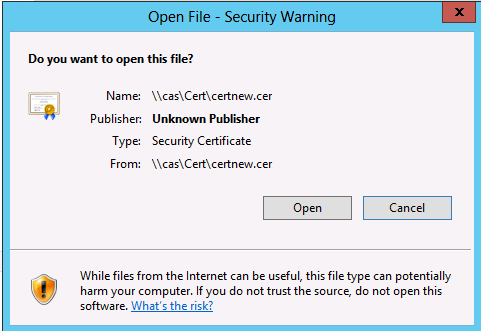

Double Click on the Certificate

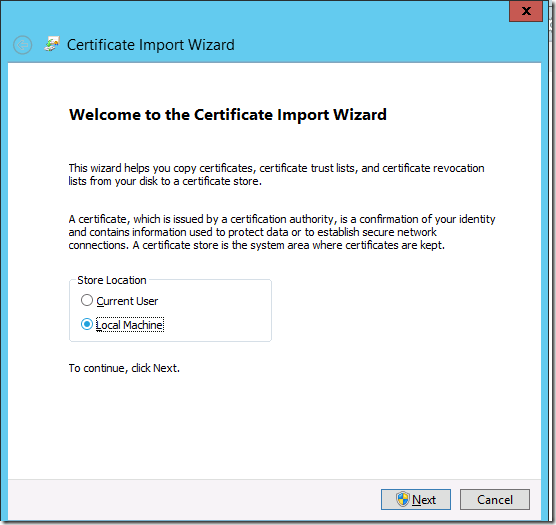

Click Install Certificate – Click Next –

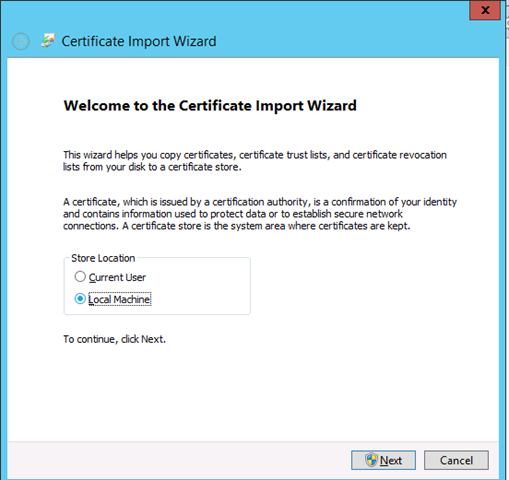

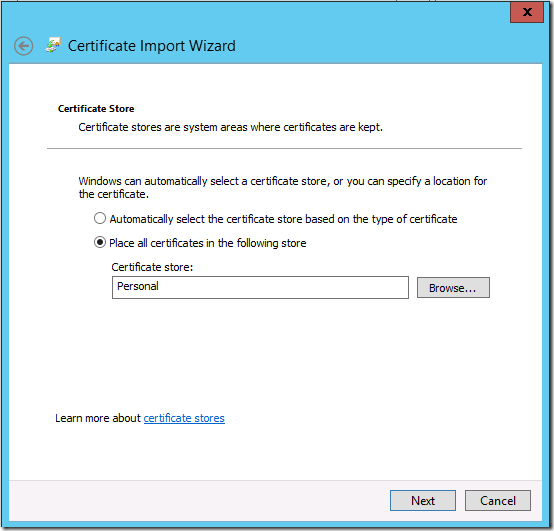

Choose Local Machine

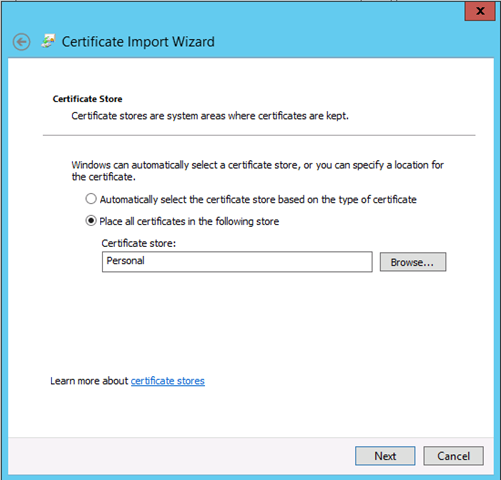

Choose Personal –

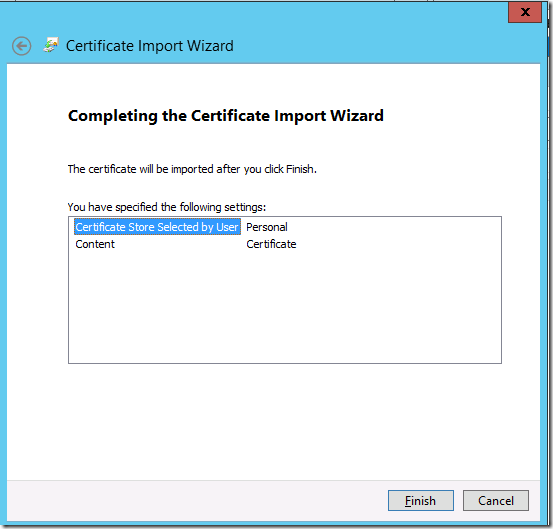

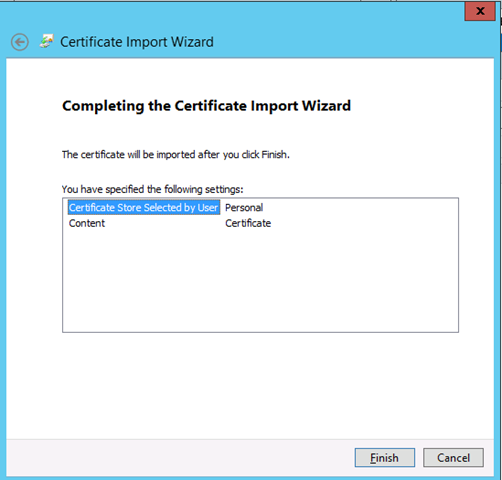

Click Next And Import will be Successful

Now Do the Same Process
Double Click on the Certificate

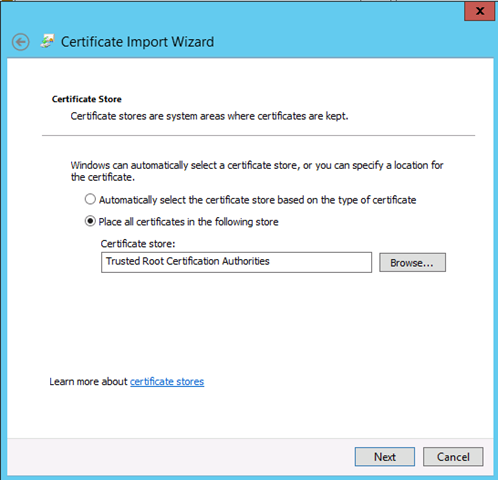

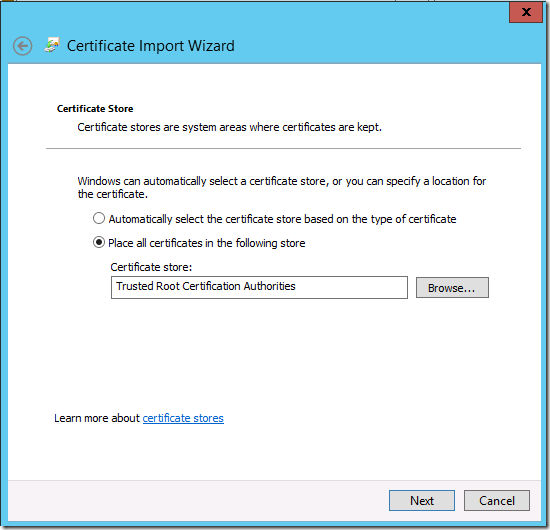

Click Install Certificate – Click Next – Choose Trusted Root Certification Authorities

Double Click on the Certificate

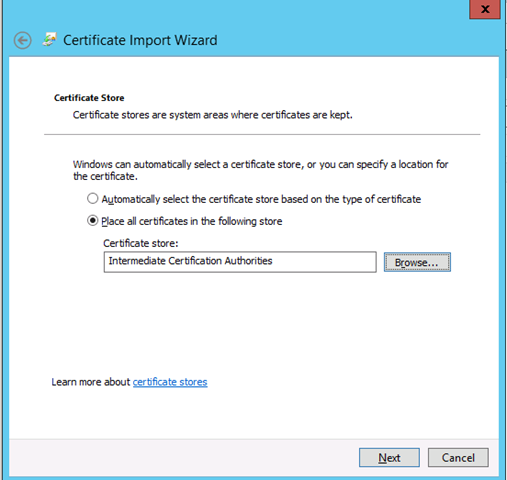

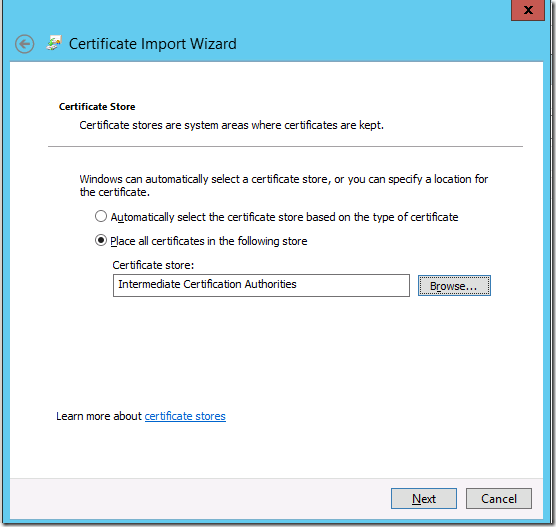

Click Install Certificate – Click Next – Choose Intermediate Certification Authorities


Step 25:

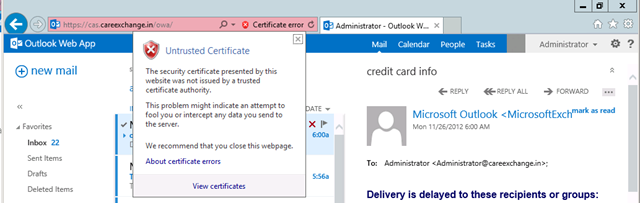

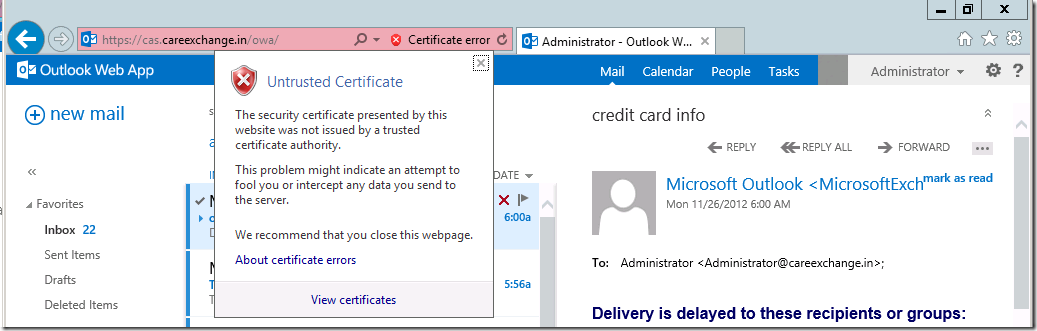

Before

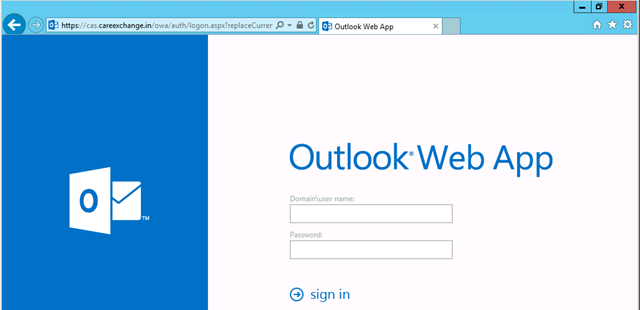

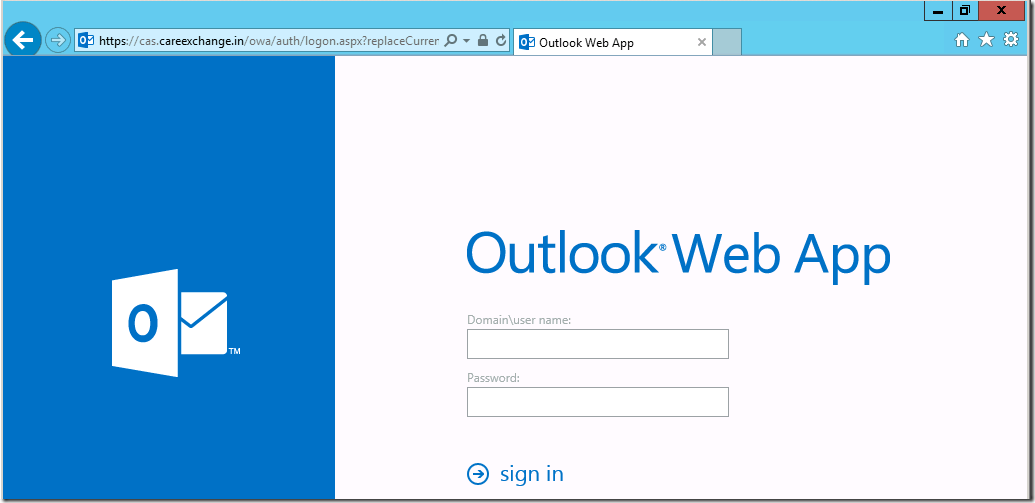

After installing the Certificate in the Client


Great !!

Now you learnt how to Use a internal windows CA certificate in Windows Server 2012 with Exchange 2013
