How to Create Autodiscoverredirect record for Multi Tenant Scenario in Exchange 2013

Lets say you are hosting many domains in one Exchange Server (Multi-Tenant) .

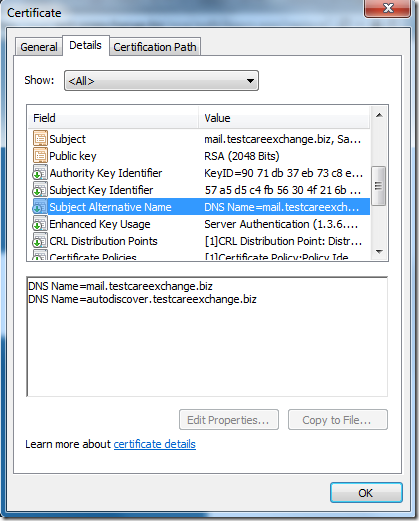

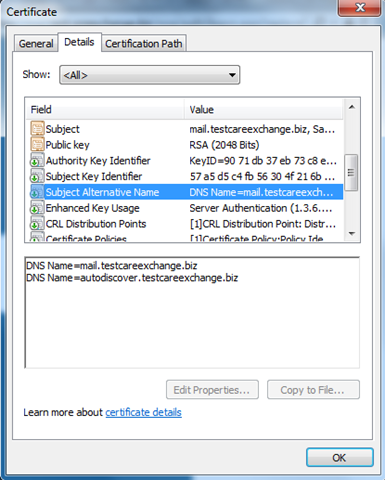

SSL cert has been Configured, With these below entries for example .

Mail.Careexchange.in

autodiscover.careexchange.in

In Simple Words – Using AutoDiscover with large numbers of accepted domains


Now for every domain you host . you cannot keep adding their entries in your SSL . that’s not going to benefit you . the recommended method is using the Autodiscoverredirect method .

like for the every domain you host . you can create a CNAME record.

autodiscover.DomainA.com CNAME to autodiscoverredirect.careexchange.in

So that you can get the autodiscover settings from your primary domain .

And Outlook 2007 . 2010 , 2013 can understand it . so that your Outlook can be configured automatically .

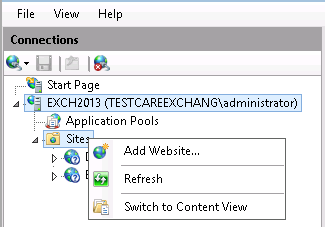

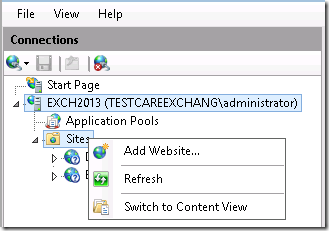

Click “Add Website”

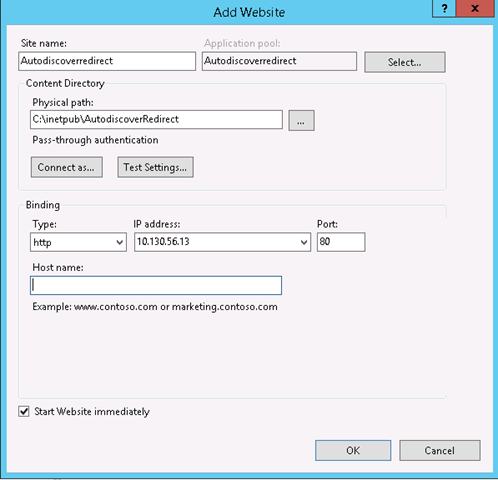

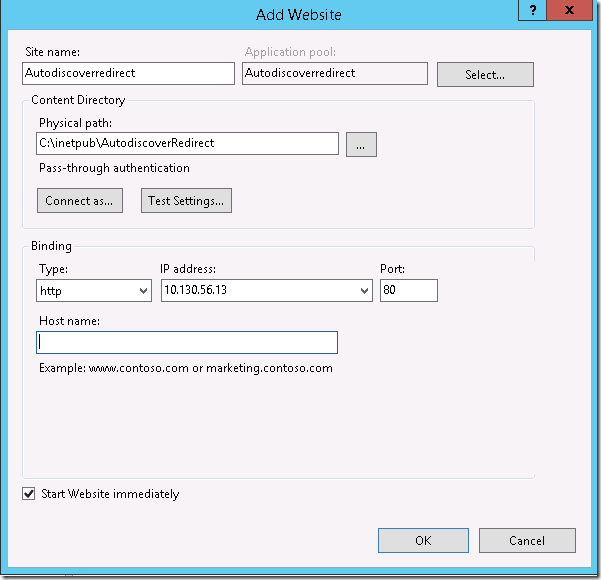

“Type Autodiscoverredirect”

Create a Folder “AutodiscoverRedirect” in the below location

“C:\inetpub”

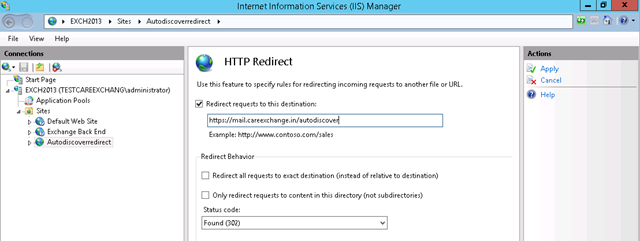

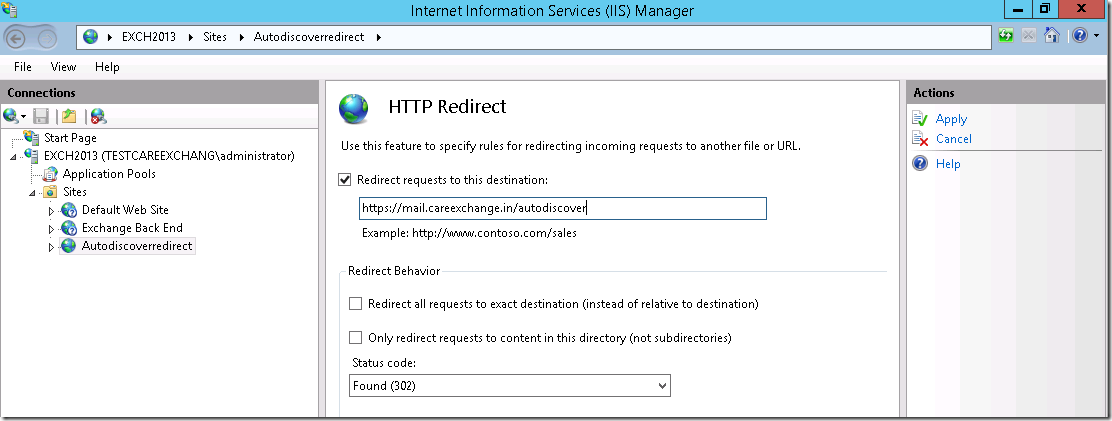

Now In that website – Add Http redirect URL

As Primarydomain (Hosterdomain)  https://mail.careexchange.in/autodiscover

Click on Apply




Add the Additional IP on the NIC . so that the IP listens .

Lets see how to create a CNAME record for example.

Create a CNAME Record for Every Tenant to use the Primary Auto discover Service

Lets say you host DomainA,DomainB,DomainC

In Domain A public DNS

autodiscover.DomainA.com CNAME to autodiscoverredirect.careexchange.in

In Domain B public DNS

autodiscover.DomainB.com CNAME to autodiscoverredirect.careexchange.in

In Domain C public DNS

autodiscover.DomainC.com CNAME to autodiscoverredirect.careexchange.in

Wait for DNS propagation for 2 to 4 hours .

To Verify the auto discover setting succeeded properly .

You can use Below Microsoft website .

http://testexchangeconnectivity.com/

Hope this information is Useful.

Still there are other methods like SRV methods , which doesn’t require a additional public IP

But few active sync phones doesn’t support SRV method . E.g Iphone.
