How to Create a Send Connector in Exchange 2013

Send Connector is required to Send Emails over the internet from Exchange 2013 and Exchange 2016 Servers
Step 1:

Login to Exchange Administration Center (EAC) in Exchange 2013

Step 2:

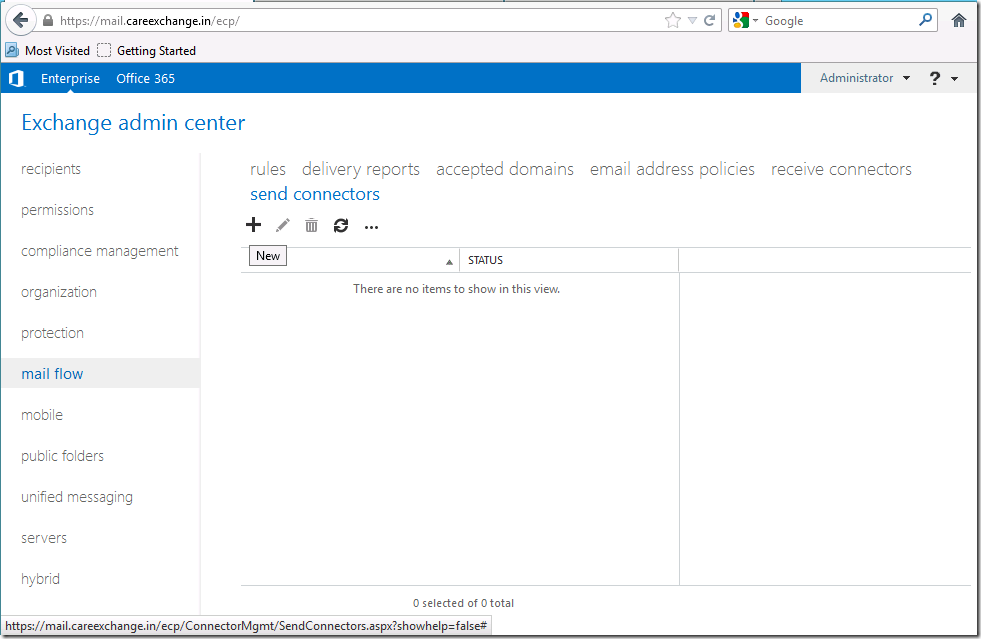

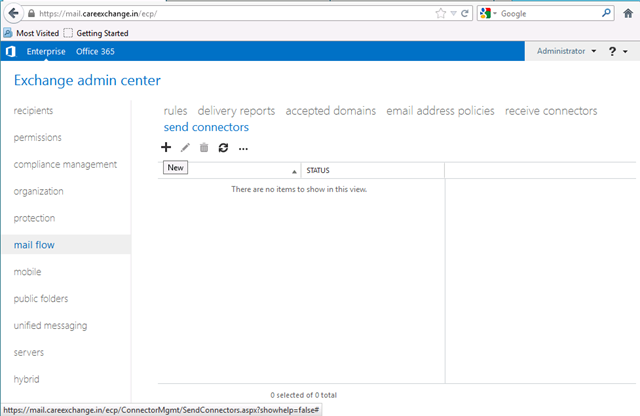

Click on MailFlow -> Send Connectors –> Choose “+” New


Step 3:

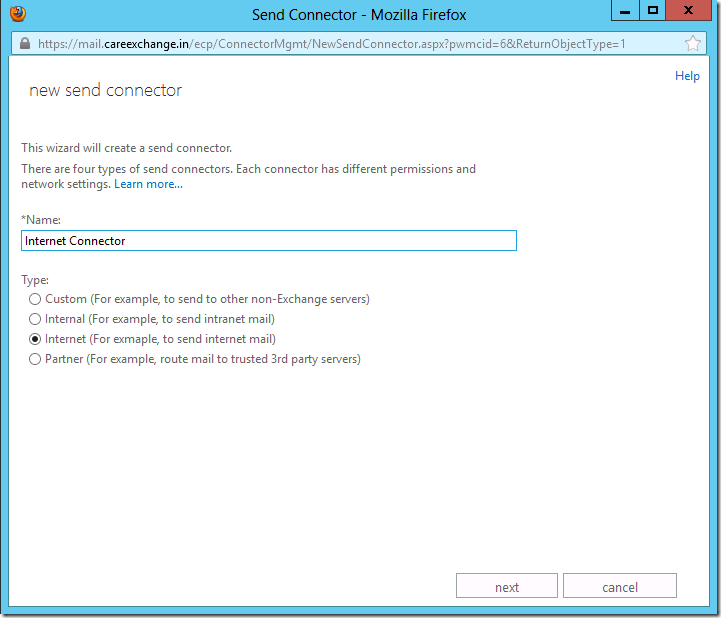

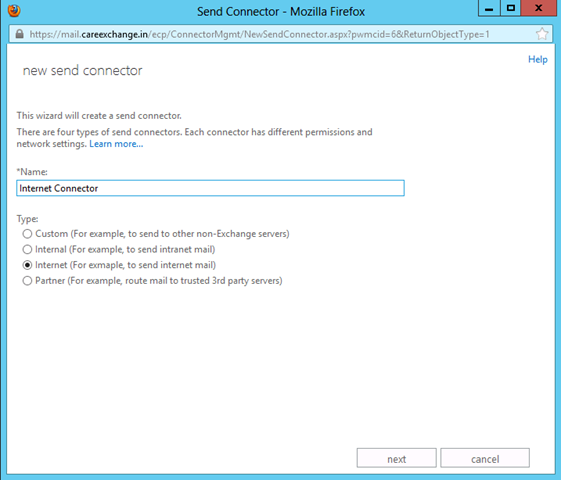

Type a friendly name – Choose Next


Step 4:

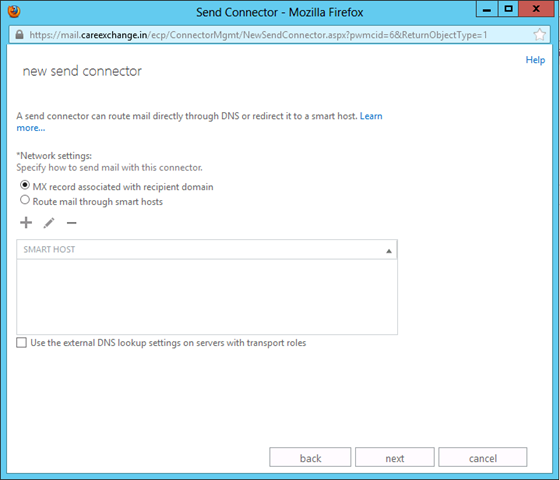

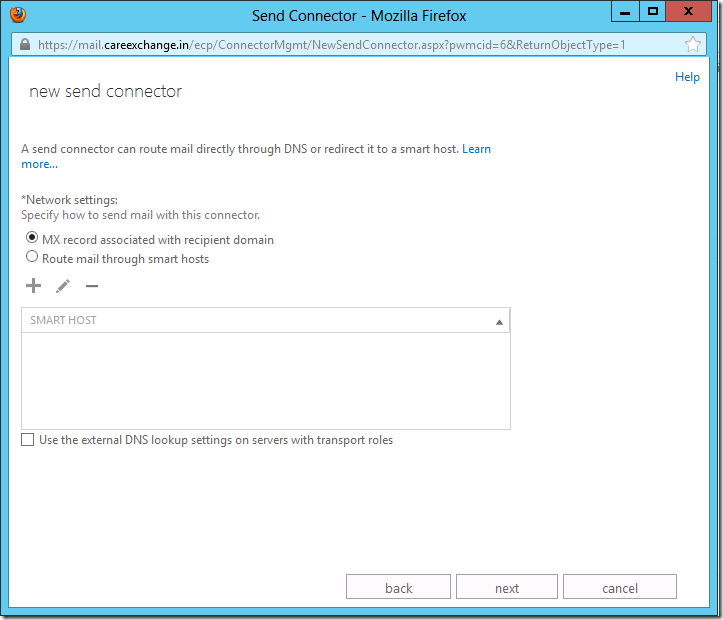

Choose Mx Record associated with Recipient Domain – Choose Next

If you are planning to Route your internet mail via a Smart Host or Spam Filters – Specify the Smart host ip


Step 5:

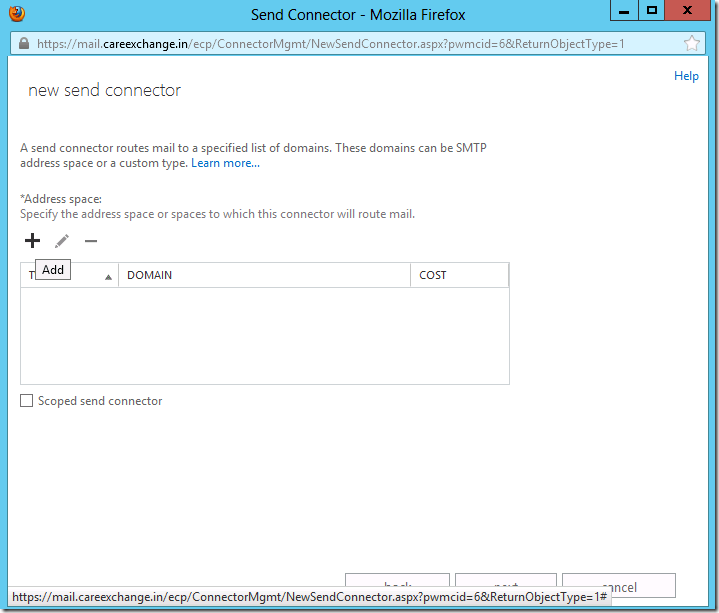

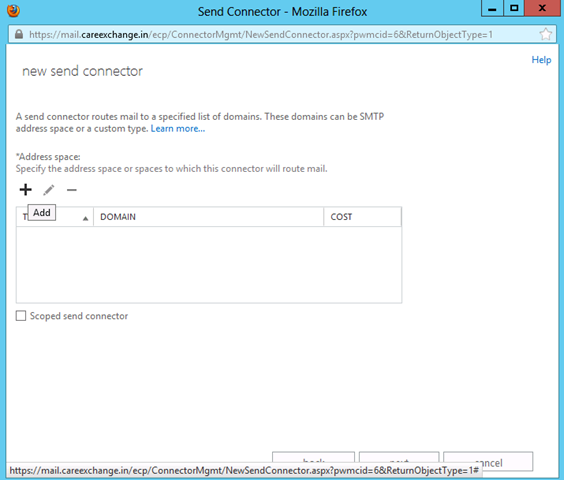

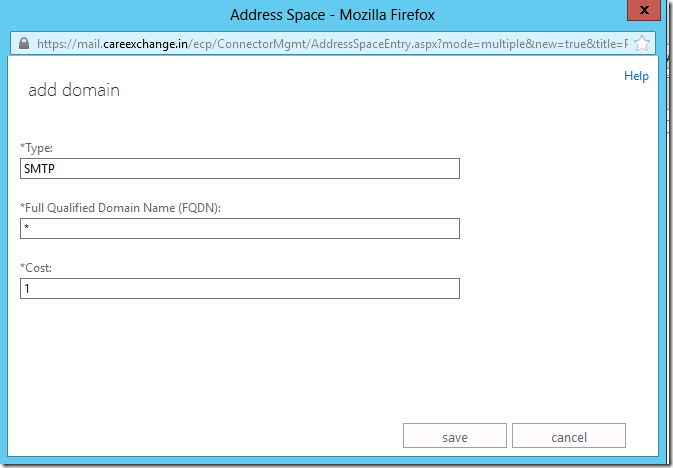

Choose “+” Add

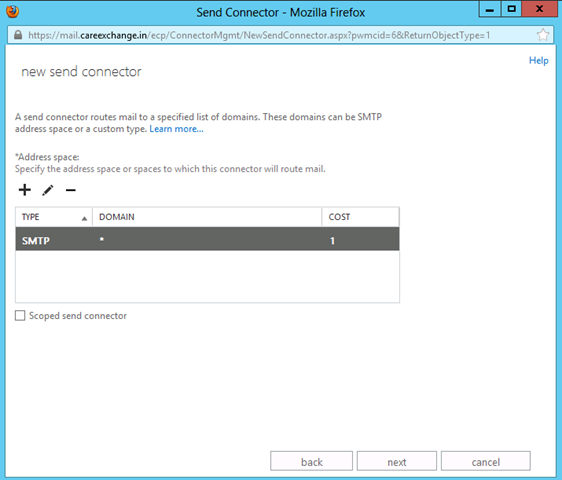

Type “*” to Specify all the domains to use this Connector

Lesser the Cost – More the priority.



Step 6:

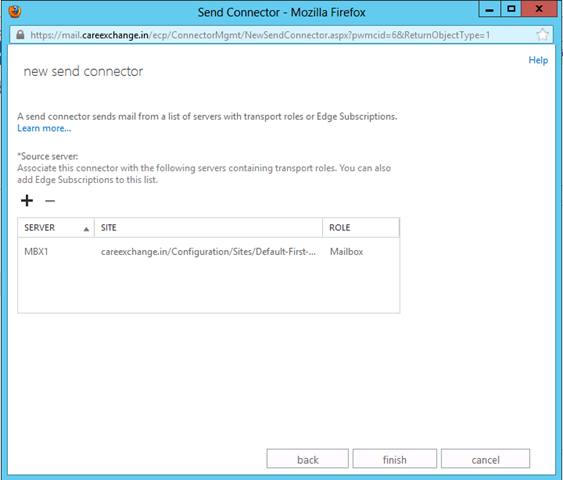

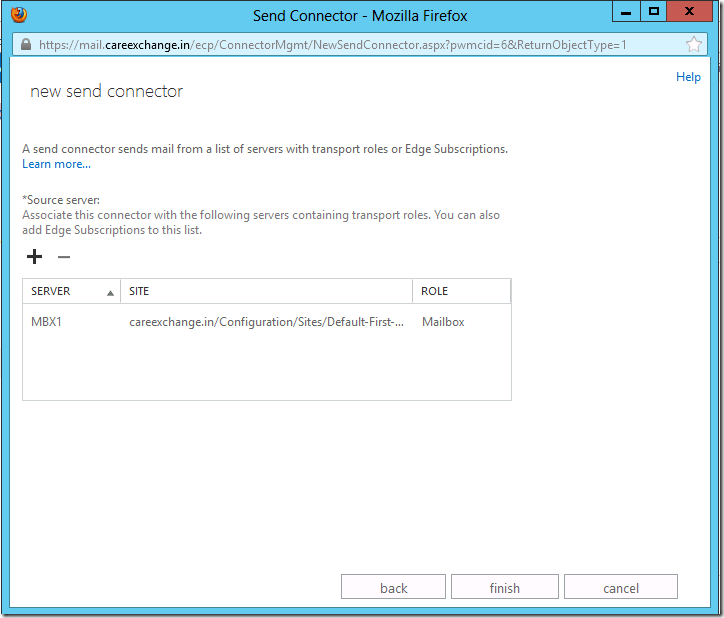

If you have multiple Exchange 2013 Mailbox Servers you can configure the source server as per your Requirement



Or Use Powershell –

New-SendConnector -Name "Internet" -Usage "Internet" -SourceTransportServers "EXCH2013A","Exch2013C" -DNSRoutingEnabled $True -AddressSpaces ("SMTP:*;10") -IsScopedConnector $False -UseExternalDNSServersEnabled $false

powershellsendconnector

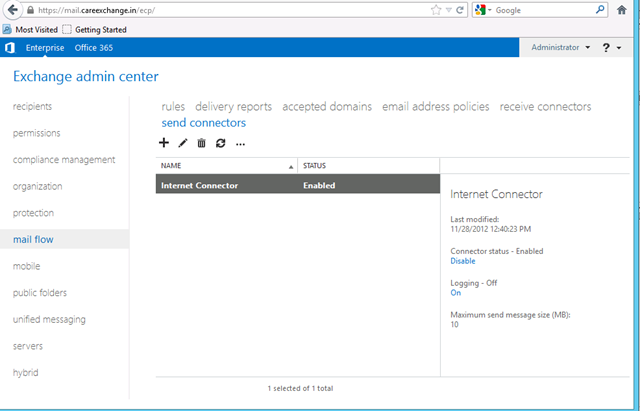

Great you have configured a Internet Send Connector For your Exchange 2013 Server
