Client Access Coexistence with Exchange 2010 and Exchange 2013

Unlike Previous versions , Exchange 2013 Coexistence is done with ease without much complexity involved. but understanding the nature of the legacy clients is very important.

Once we make sure Exchange 2013 is completely configured. We got to re route the mail flow and URL name space , these procedure will explain using the same name space without introducing new name spaces

For Example (Choosing a typical example for better understanding)

My Outlook Web App URL is

https://mail.testcareexchange.biz/owa/

My MX record pointing to

testcareexchange.biz == > Mail.testcareexchange.biz

which points to Exchange 2010.

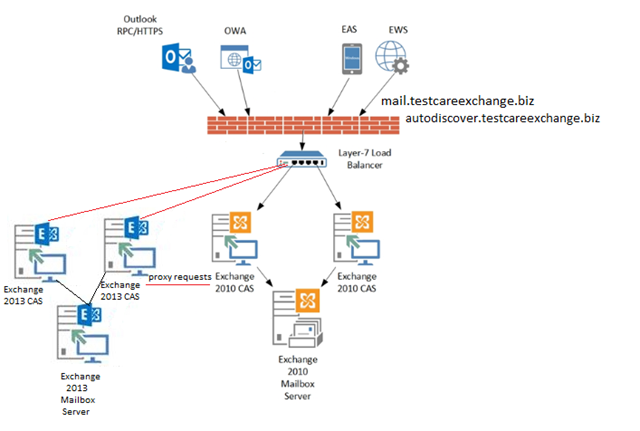

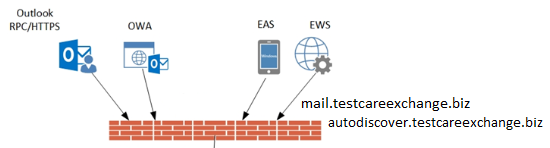

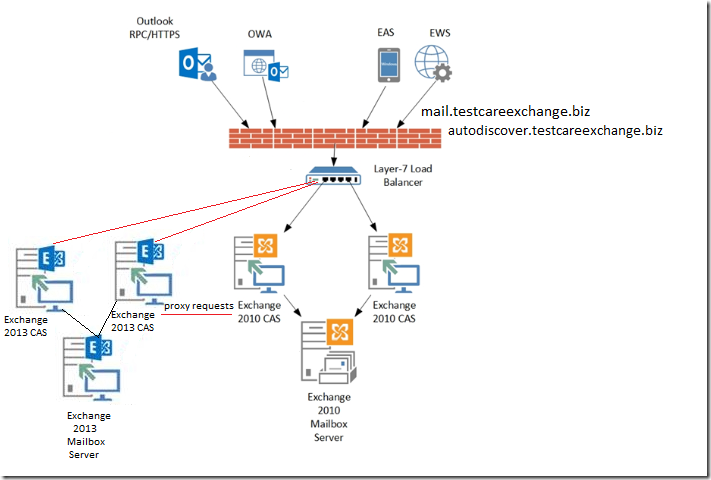

Now I want to switch over to Exchange 2013 by changing the MX and A record of mail.testcareexchange.biz , autodiscover.testcareexchange.biz


Before doing this – We will see the things should be looked at

How Internal Outlook (Connected to Exchange 2010) Will affect ?

Internal Outlook clients Which are connected to Exchange 2010 is not going to affect anyways.They will be still connected to Exchange 2010

How autodiscover going to work from External world ?

Once autodiscover.testcareexchange.biz points to exchange 2013. All requests will be proxied to the Exchange 2010 Server.

How Exchange 2010 Outlook anywhere clients going to connect once the switch over happens ?

All Exchange 2010 Outlook clients request will be proxy the requests to exchange 2010

Exchange 2010 Outlook anywhere should be enabled.

NTLM should be enabled in exchange 2010 server – Adding to Basic authentication.

How Outlook Web App going to work ?

Outlook Web App request will be proxied once it determines the location of the mailbox server

how to Verify Proxy works – you can login to Exchange 2013 Server

Browse

https://localhost/owa

Use a Exchange 2010 mailbox creds , Request should get proxied and Exchange 2010 Owa should open.

How Exchange Active Sync going to work ?

Active Sync Client requests will be proxied to Exchange 2010

How Exchange Web Services going to work ?

Exchange Webs Services requests going to be proxied to Exchange 2010

How IMAP – POP going to work ?

It will use the InternalConnectionSettings property value for each Exchange 2010 Client Access and it will attempt to connect to it .

About Satheshwaran Manoharan

Satheshwaran Manoharan is an Microsoft Office Server and Services MVP , Publisher of Azure365pro.com. Specialized in Office365 / Microsoft Exchange / Virtualization , Sathesh is an Messaging Expert supporting/Designing/Deploying many medium size businesses to large enterprises when it comes to Corporate messaging and Virtualization Infrastructure

Check Also

Export all Teams Channels and all members in Office 365

In some situations like if we wish to study a new environment or restructure a …

10 comments

  1. Nice work sathesh…

  2. Hi Sathesh,

    Is there need to create Legacy record in external & internal DNS server?
    if it is then what sever i point a legacy Record to exchnage 2010 or Exchange 2013?

  3. Hi Satheshwaran,

    Thanks for your articles,

    I need an advice on setting up exchange 2013 coexistence with EX2010.

    My plan 2 front End (CAS) and 2 backend (Mailbox) at US site
    2 front End (CAS) and 2 backend (Mailbox) at India site

    Both CAS on NLBS
    Both Mailbox on DAG

    I would like know how can we configure it across the WAN?

    Many thanks in advance.

    Regards
    NM

    • Satheshwaran Manoharan

      Please get a load balancer – without spending money on CAS boxes .
      It will act as a reverse proxy solution as well .

      It just need to reach other, No extra configuration required.

  4. Hi
    I have two CAS 2010 and two MB 2010 servers. Plus two exchange 2013. I am having issues with client who connects via direct access are popping for authentication once I change my DNS and point to CAS2013.
    Once I point the DNS back to CAS2010 all are good but users in Exchange 2013 get effected.
    How can I resolve this.
    Please advise
    S

  5. Hi
    I have two CAS 2010 and two MB 2010 servers. Plus two exchange 2013. I am having issues with client who connects via direct access are popping for authentication once I change my DNS and point to CAS2013.
    Once I point the DNS back to CAS2010 all are good but users in Exchange 2013 get effected.
    How can I resolve this.
    Please advise
    S

    • Satheshwaran Manoharan

      Need more info. what effect ? is it prompting ? check what all dns records are in place. how they are connected currently ?

  6. Hi Satheshwaran
    what do you mean about “NTLM should be enabled in exchange 2010 server – Adding to Basic authentication.”, shall I enable the NTLM authentication on RPC on all Exchange 2010 CAS servers?
    because I didn’t enable the NTLM and after cutover to exchange 2013 the outlook couldn’t connect but ActiveSync worked fine also OWA.
    so please let me know how can I fix this issue.

    • Satheshwaran Manoharan

      Simple words NTLM auth doesnt prompt or user and pass sooner.
      Basic does.

      Enable NTLM – If your using Exchange 2013. please read about HTTP over MAPI As well
