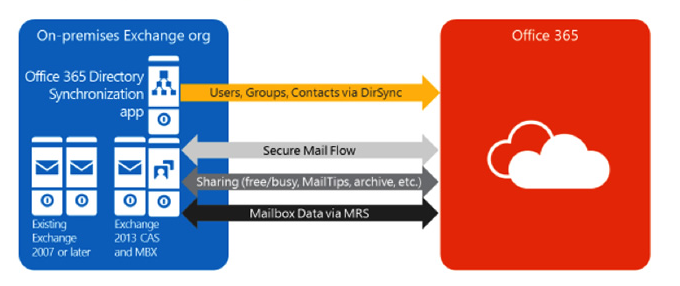

Adding Domain in Existing Hybrid Configuration

Scenario 1 –

  • Domain never Existed in the Forest.
  • All Mailboxes will be in the Cloud.
  • Hybrid Exchange Server will be used only for Recipient management.

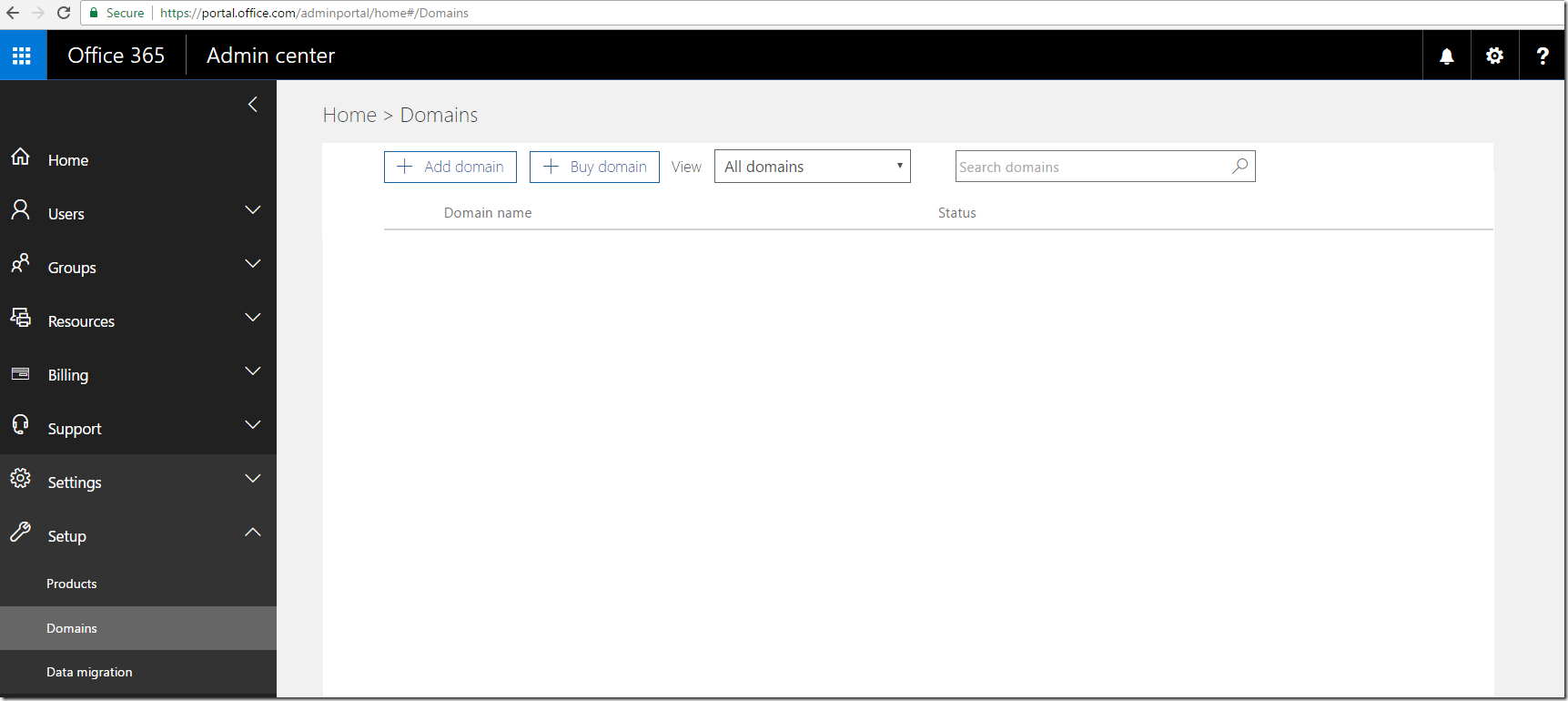

  • Add the Additional Domain in Office Admin Center
  • Add required DNS records – Point MX,Autodiscover,SPF to the Cloud


Open On Premises Active Directory –

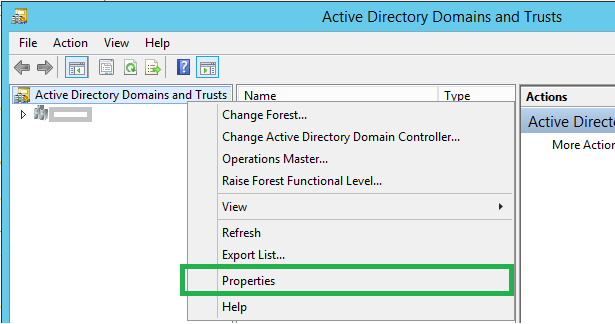

Active Directory Domains And Trust.

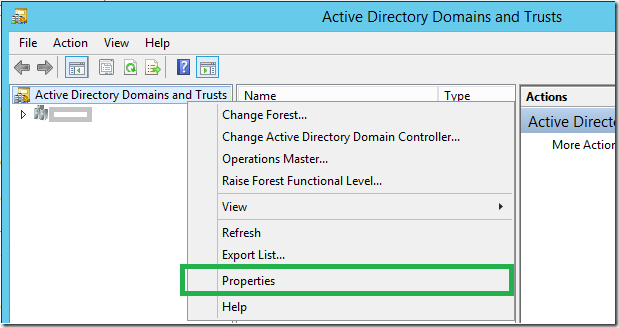

Properties

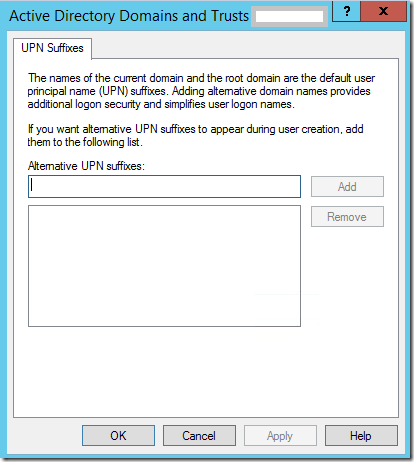

Add the Additional Suffix –

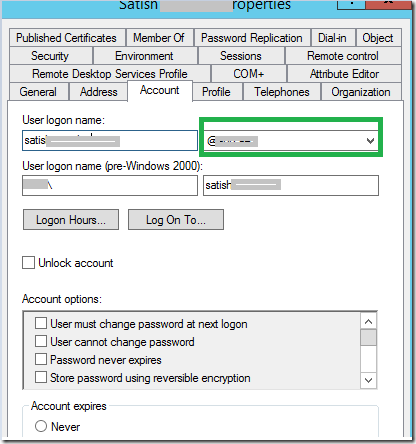

Now you can set –

To Change Email Addresses ,used Accepted Domain and Email Address Policies In Exchange Control Panel.


Try Creating test users and check user sync to the cloud with the new domain.

Scenario 2 –

  • Domain Already Exist in the Forest.
  • All Mailboxes with this domain exist in the Forest.
  • Mailboxes are yet to move to the cloud but hybrid configuration was completed with the new domain.

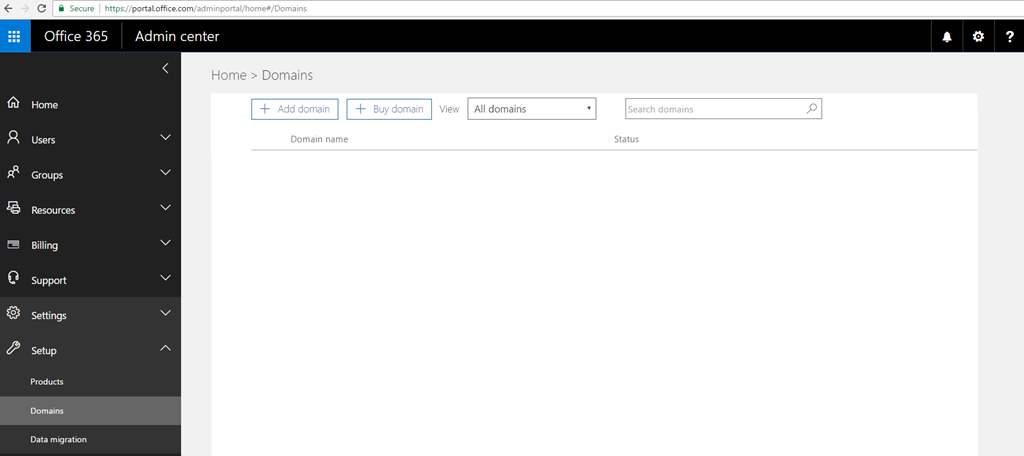

  • Add the Additional Domain in Office Admin Center
  • Add only verification DNS
  • Don’t Change MX or Auto discover Records.


Open On Premises Active Directory –

Active Directory Domains And Trust.

Properties

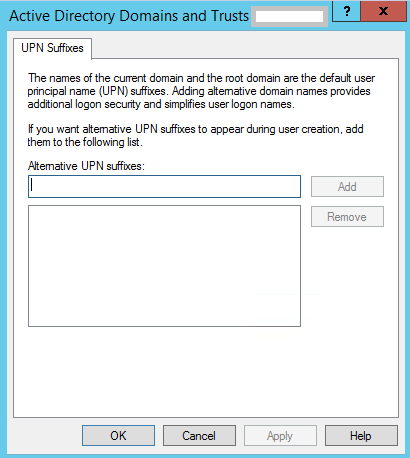

Add the Additional Suffix –

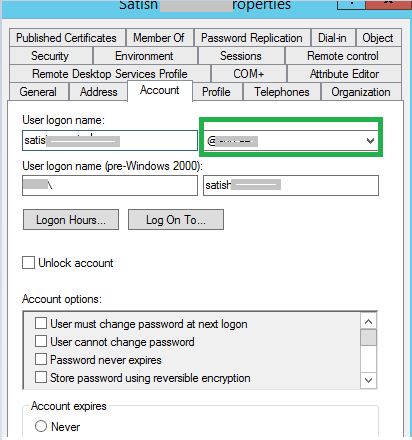

Now you can set –

To Change Email Addresses ,use Accepted Domain and Email Address Policies In Exchange Control Panel.

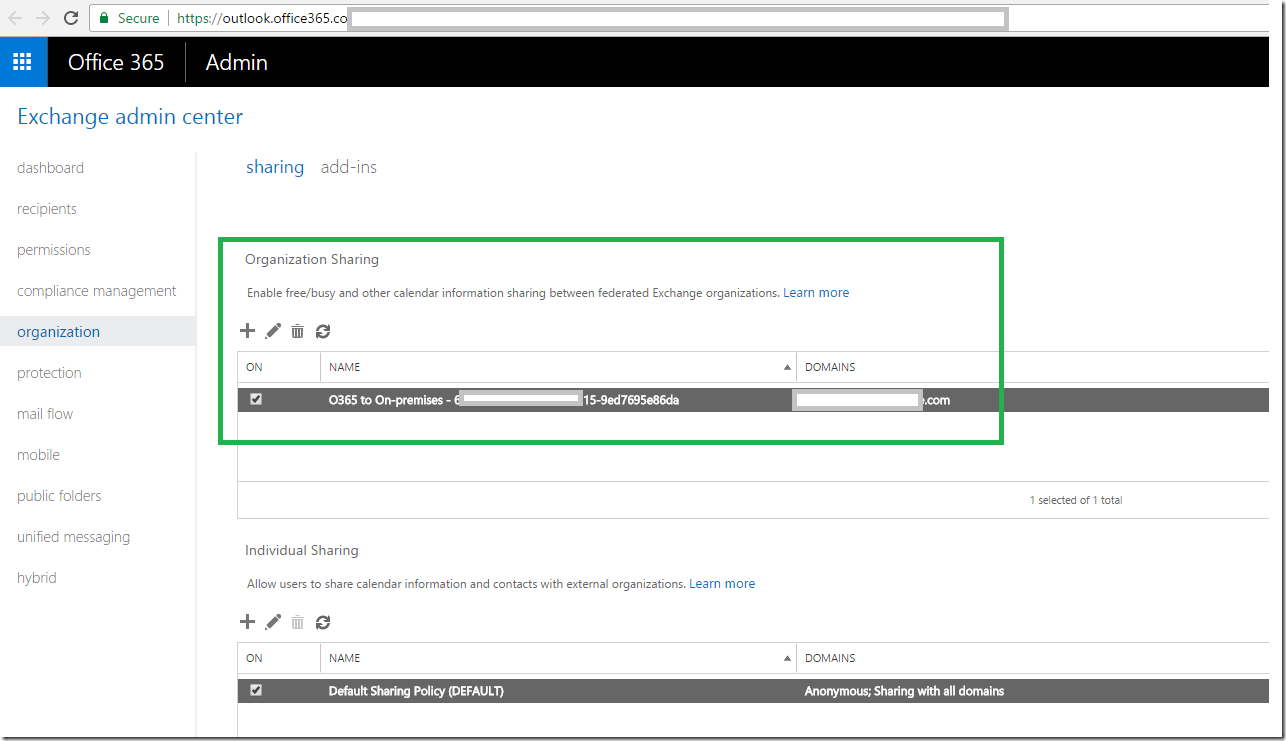

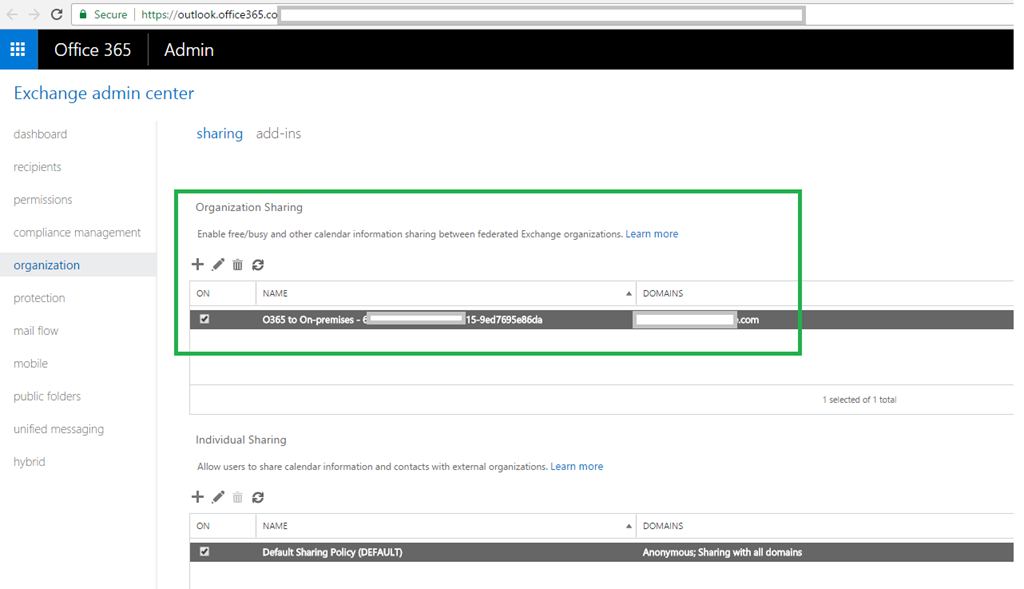

Add the Domain in Organization Sharing –

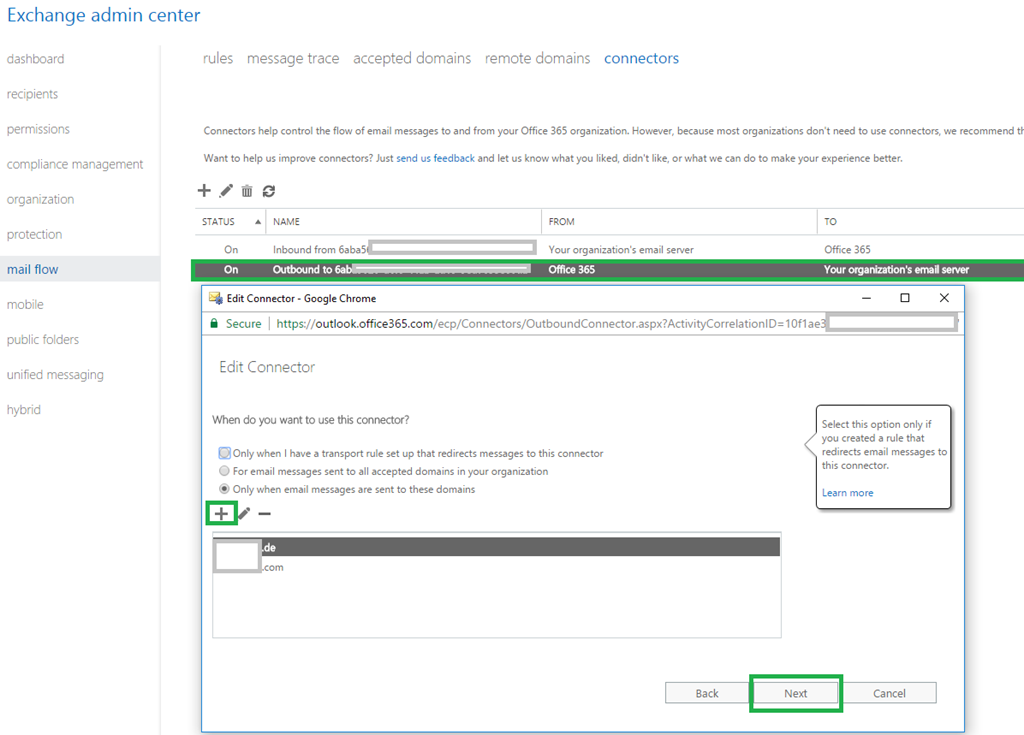

Add the Domain in Existing Hybrid Mail flow Connectors –

  • From Office 365 To Your Organization’s Email Server

Edit the Connector – Add Domain – Validate the Connector before Applying.


In my Case the domain was from a different site al together

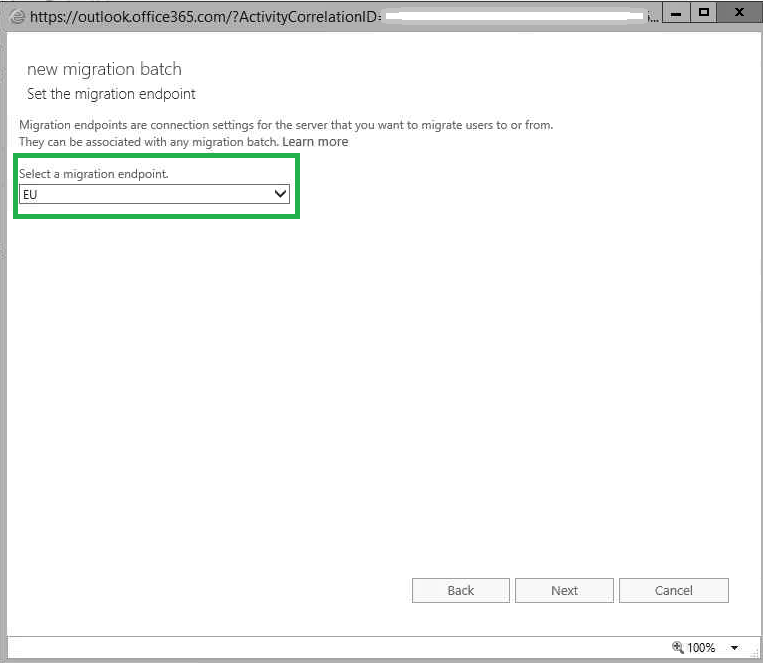

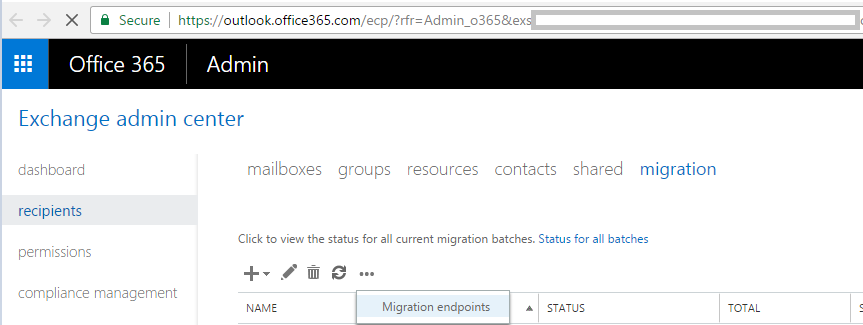

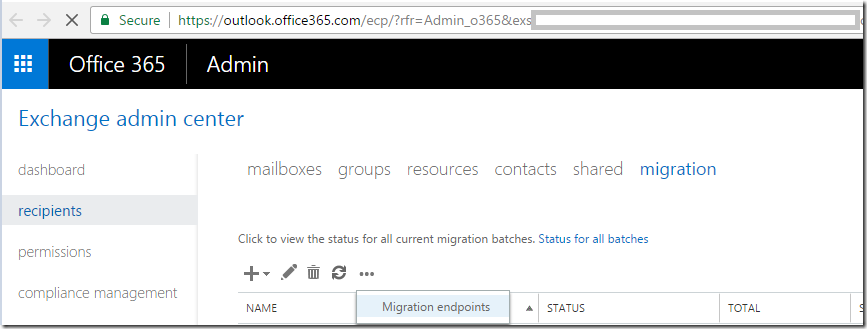

So Added a new migration End Point


Followed the normal Process to Migrate Mailboxes use the new migration end point.


See –

Office 365 Hybrid Configuration Wizard Step by Step

Office 365 Hybrid Duplicate Mailboxes
