Active Directory as an LDAP Server in Vcenter Appliance

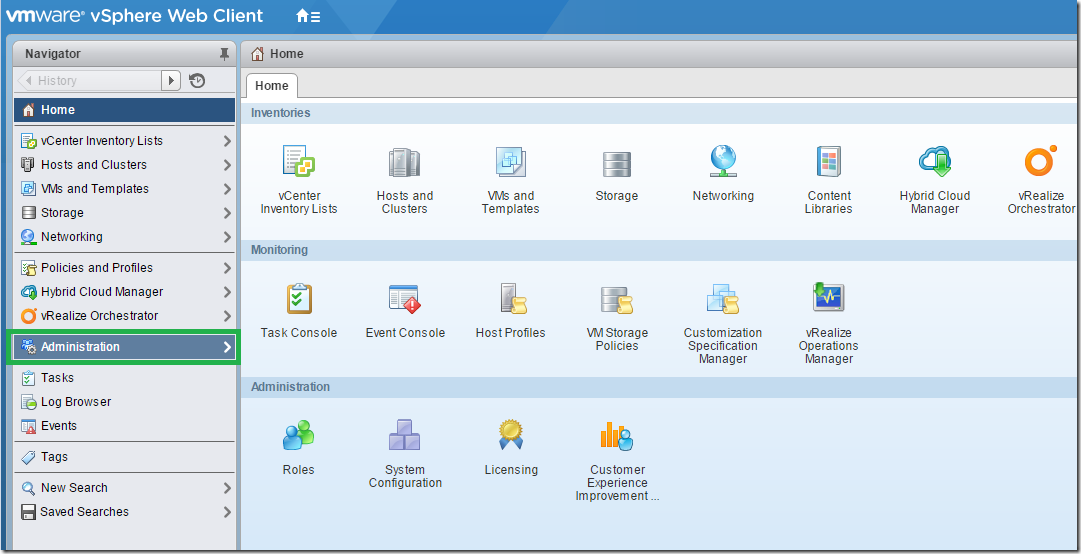

Login to Vcenter as Administrator@vsphere.local

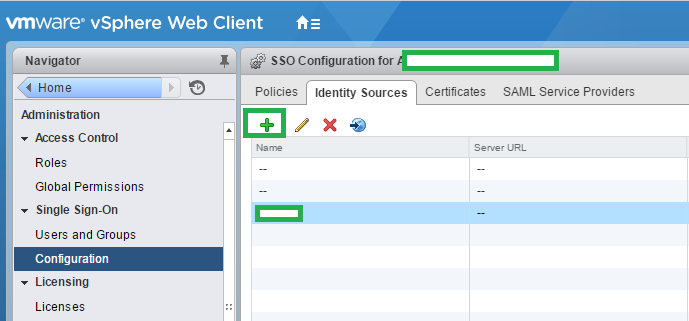

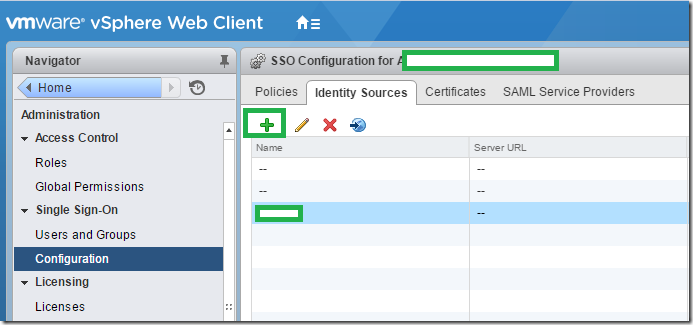

Configuration – Identity Sources – Choose the + Sign

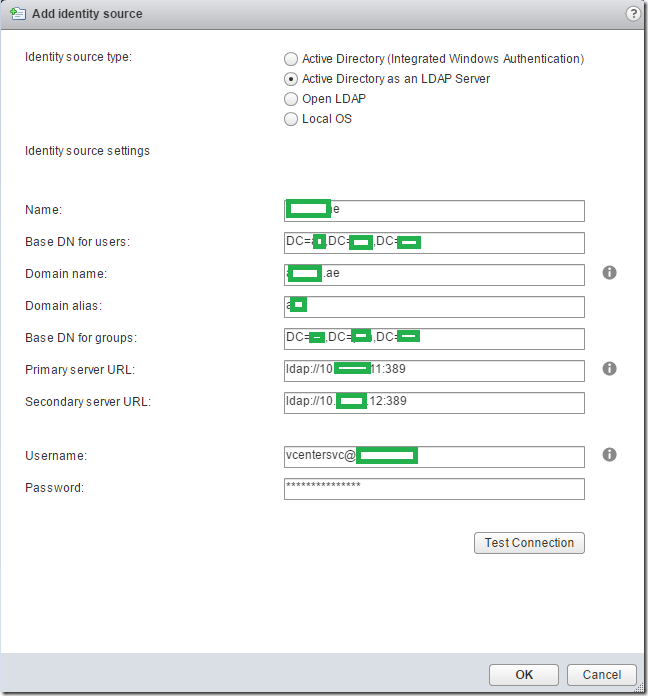

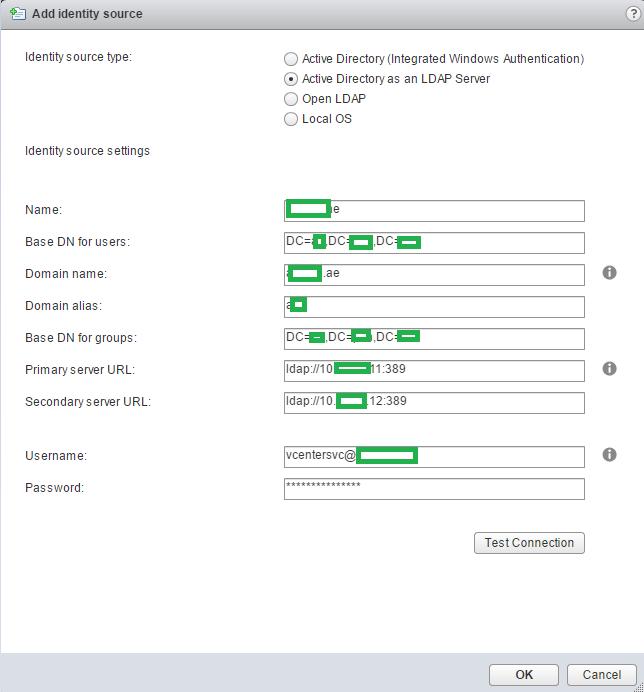

Choose Active Directory as an LDAP Server

Name –

FriendlyName – Cloudid.biz

BaseDNfor Users (Recommended  to use Specific Organization Unit Distinguish name ) – DC=CloudID,DC=Biz

DomainName – Cloudid.biz

DomainAlias (NETBIOS Name of the Domain) – Cloudid

BaseDNforGroups (Recommended  to use Specific Organization Unit Distinguish name )– DC=CloudID,DC=Biz

PrimaryServer URL – Active Directory Integrated  DNS Server #1 – ldap://10.10.10.11:389

SecondaryServer URL – Active Directory Integrated  DNS Server #2  – ldap://10.10.10.11:389

Create a Service Account in Active Directory . Just Domain Users

vcenterldap@cloudid.biz

Password

Test Connection.

If it works.  Add it .

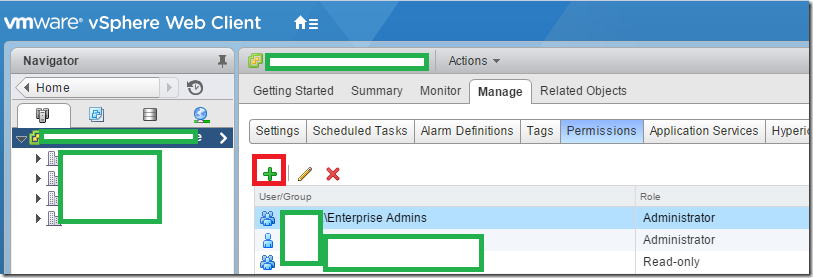

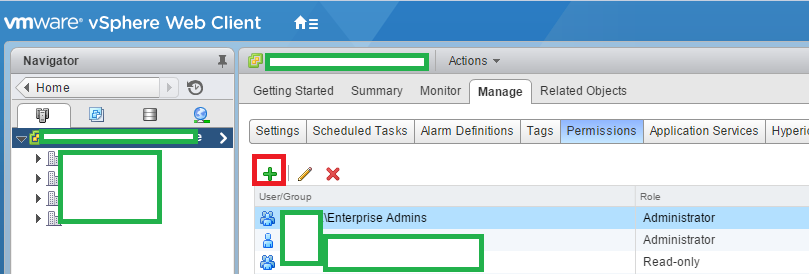

Then Assign Permission on Vcenter object (+) or whichever is required to gain access to, You have to use the domain on the drop down and choose user from Active Directory.

Then login to vcenter as Domain\username

It should allow you to login.
